PP 19A42 (960480091-01) - Poulan Pro Lawn Tractor (2016-09) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

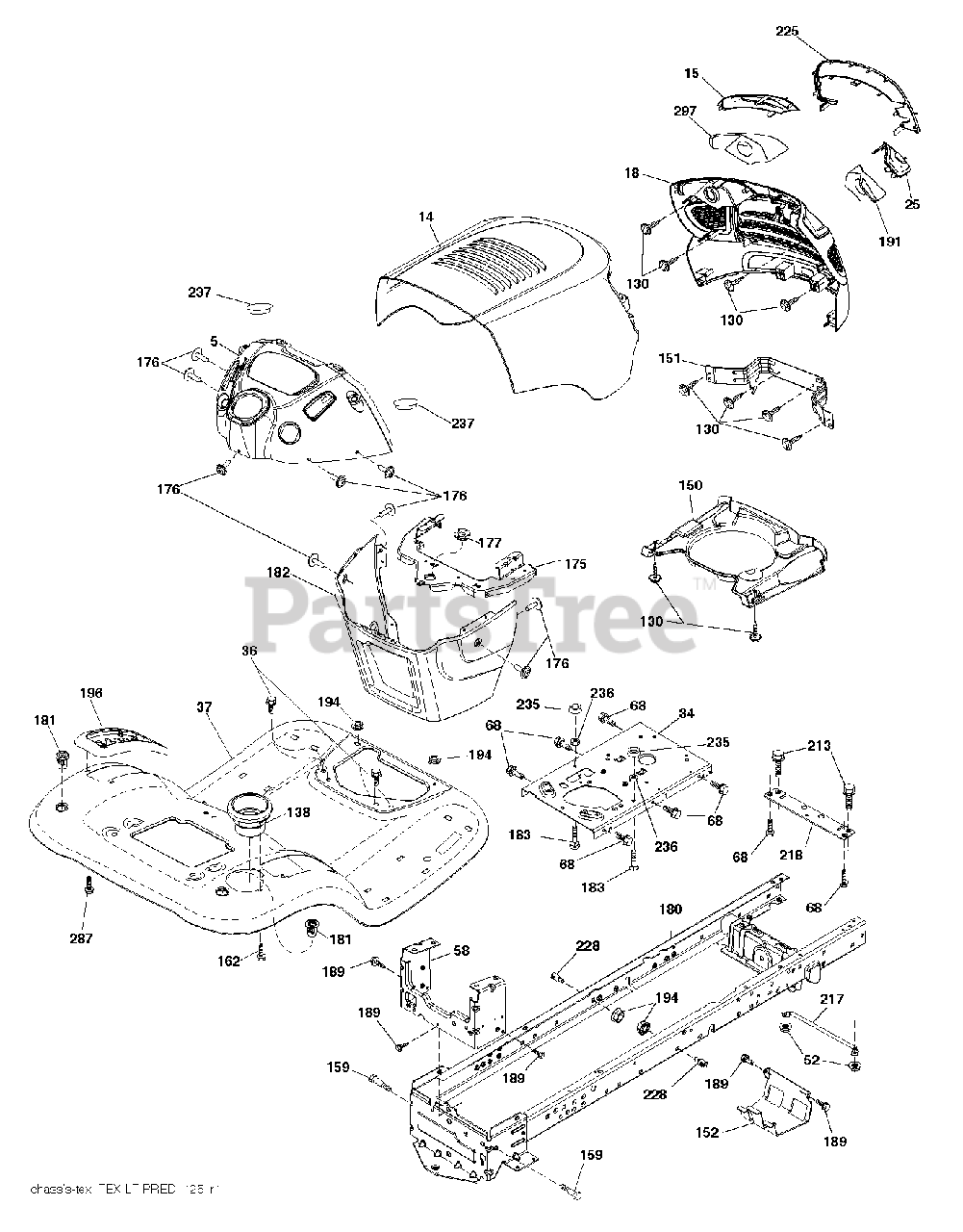

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Poulan 532425772

DASH.PRED.LT.CC.ICY.N/SRV.BLK

$96.99

$

Usually ships in 3-10 days

0

14

Poulan 532409598

HOOD.PREDATR.LT.U-FRM.TPVNT428

$109.99

$

Usually ships in 3-10 days

0

15

Poulan 581055901

MCCULLOCH.LT.LENS.RIGHT
(Superseded to 581010701)

$78.99

$

Usually ships in 3-10 days

0

18

Poulan 581055702

GRILL.LT.GRNREIC.PPRO
(Superseded to 581010702)

$96.99

$

Usually ships in 3-10 days

0

25

Poulan 581055801

MCCULLOCH.LT.LENS.LEFT
(Superseded to 581010701)

$78.99

$

Usually ships in 3-10 days

0

34

Poulan 580910801

PLATE.ENGINE.WELDED.CHASSIS

$68.99

$

In Stock, only 1 left!

0

36

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532420796

FENDER.TLT.W/CPH.428

$205.99

$

Usually ships in 3-10 days

0

52

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Poulan 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

138

Poulan 532409730

CUPHOLDER.TL.TEX.BLACK

$7.99

$

Usually ships in 3-10 days

0

150

Poulan 532408310

DUCT.AIR.TOP.VENT.PREDATOR.LT

$24.99

$

Usually ships in 3-10 days

0

151

Poulan 532187568

BRACKET.PIVOT.ALPHA.LT

$28.99

$

Usually ships in 3-10 days

0

152

Poulan 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

159

Poulan 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

162

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Poulan 532199472

CROSSMEMBER

$28.99

$

Usually ships in 3-10 days

0

176

Poulan 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Poulan 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

180

Poulan 532415063

CHASS.WLDMNT.TL.12GA/2P.48/54

$193.99

$

Usually ships in 3-10 days

0

181

Poulan 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Poulan 532407176

DASH.LOWER.PREDATOR LT

$79.99

$

Usually ships in 3-10 days

0

183

Poulan 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

191

Poulan 581056002

INSERT.REFLECT.RH.MCC.LT.RT

$15.99

$

Usually ships in 3-10 days

0

194

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

196

Poulan 532414581

(Superseded to 583351401)

$37.99

$

In Stock, only 2 left!

0

213

Poulan 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

217

Poulan 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

218

Poulan 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

225

Poulan 581056201

MCCULLOCH.LT.TRIM.RING

$14.99

$

Usually ships in 3-10 days

0

228

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Poulan 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Poulan 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

237

Poulan 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

287

Poulan 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

297

Poulan 581056001

INSERT.REFLECT.MCC.LT.LF/RT

$37.99

$

Usually ships in 3-10 days

0
