PP 19A42 (960480091-00) - Poulan Pro Lawn Tractor (2015-08) ENGINE Parts Diagram

Lawn Tractor

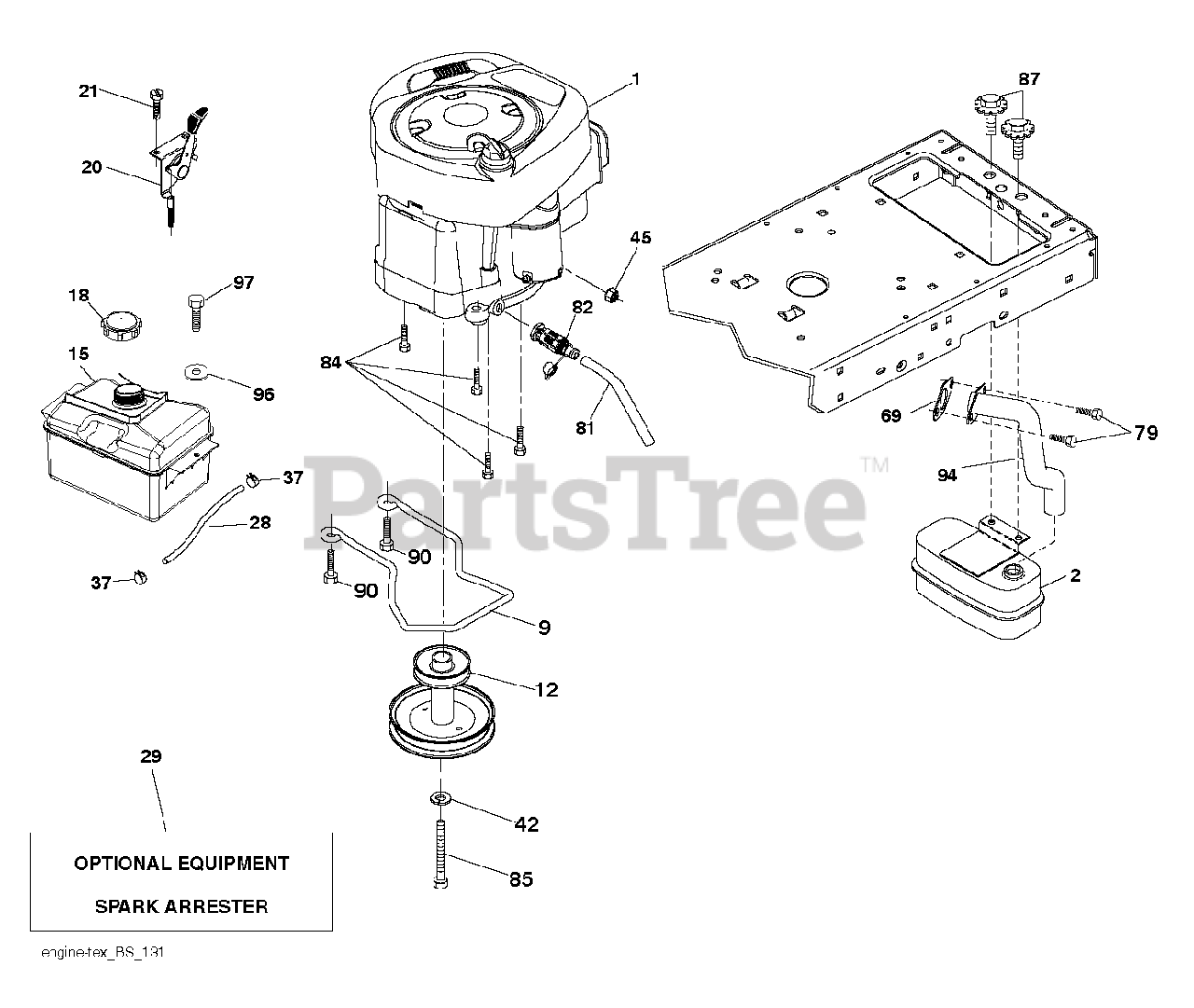

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE B S MODEL NO 33R877-0023-G1 (501450101)

$

$

Not available

2

Poulan 532446760

MUFFLER.ASM.SNGL.XTNDED.DFLCTR
(Superseded to 590645301)

$44.99

$

Usually ships in 3-10 days

0

9

Poulan 582540302

KEEPER.BELT.ENG.3.25"2BOLT.PNT

$7.99

$

Usually ships in 3-10 days

0

12

Poulan 586729001

Engine Pulley

$40.99

$

In Stock, only 1 left!

0

15

Poulan 581289901

FUEL.TANK.ASM.1.5.GAL.NON-EPA

$87.99

$

In Stock, only 1 left!

0

18

Poulan 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Poulan 532170545

(Superseded to 583045801)

$40.99

$

Usually ships in 3-10 days

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Poulan 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$182.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

69

Poulan 532165291

(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

94

Poulan 581880901

Exhaust Tube, B&S 28/31

$31.99

$

In Stock, only 3 left!

0

96

Poulan 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0
