PP 19A42 (960460078-00) - Poulan Pro Lawn Tractor (2015-09) ENGINE Parts Diagram

Lawn Tractor

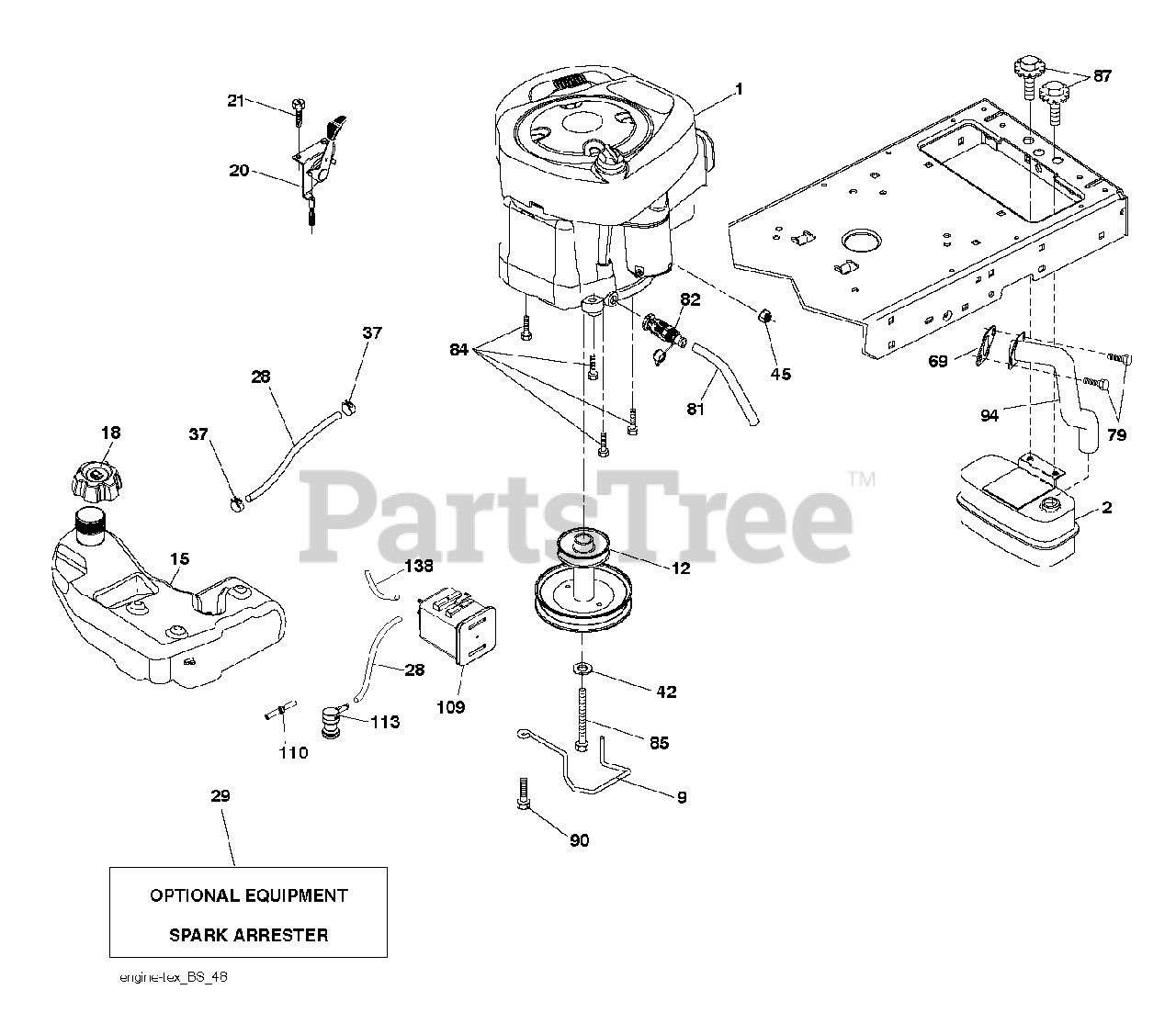

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: ENGINE B S MODEL NO 33R877-0024-G1 (501516501)

$

$

Not available

2

Poulan 580532301

MUFFLER.SINGLE.LRG.BRIGGS.KOHL
(Superseded to 532188655)

$45.99

$

In Stock, only 2 left!

0

9

Poulan 584911602

KEEPER.BELT.ENGINE
(Superseded to 532194319)

$13.99

$

In Stock, only 1 left!

0

12

Poulan 586729001

Engine Pulley

$40.99

$

In Stock, only 1 left!

0

15

Poulan 532420722

TANK ASM.FUEL.3

$205.99

$

Usually ships in 3-10 days

0

18

Poulan 585124802

Fuel Cap Assembly, 3" Black

$18.99

$

In Stock, only 1 left!

0

20

Poulan 532183897

(Superseded to 532176636)

$37.99

$

In Stock, only 1 left!

0

21

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI

$14.99

$

Usually ships in 3-10 days

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

Note: FLAT SCRN

$182.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 873640400)

Note: 7351040

$

$

Not available

69

Poulan 532165291

(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Poulan 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Poulan 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Poulan 817060620

SCREW.3/8-16

Note: 1706062

$7.49

$

In Stock, Qty 11

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Poulan 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

94

Poulan 581880901

Exhaust Tube, B&S 28/31

$31.99

$

In Stock, only 3 left!

0

109

Poulan 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

110

Poulan 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

113

Poulan 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$11.99

$

Usually ships in 3-10 days

0

138

Poulan 532420718

PURGE.LINE.36"REAR.CALIFORNIA

$10.99

$

Usually ships in 3-10 days

0
