PP 195 - Poulan Pro String Trimmer ENGINE BLOCK & SHROUD Parts Diagram

String Trimmer

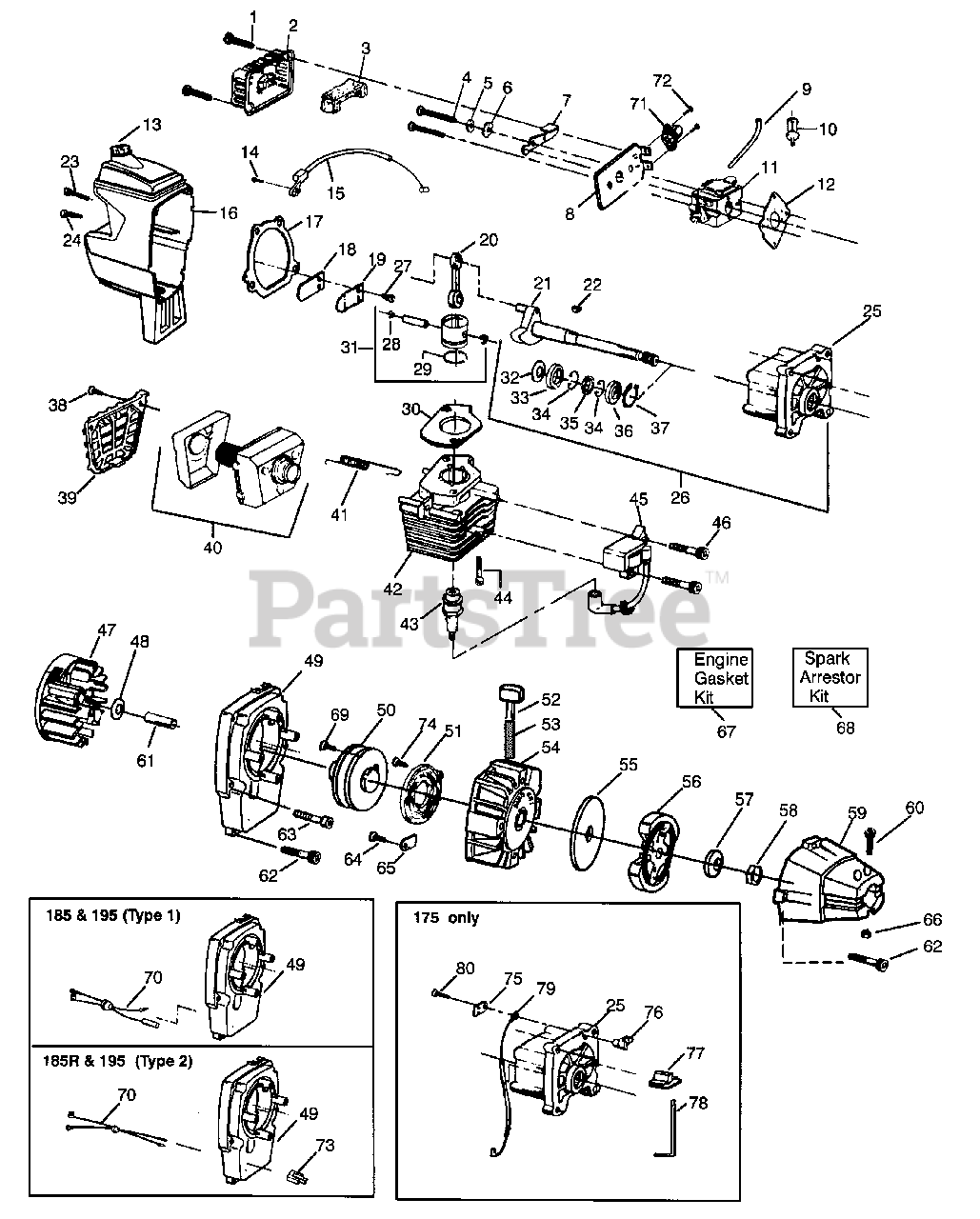

ENGINE BLOCK & SHROUD Parts Diagram

  • Title

1

Poulan 530015773

Screw

$3.99

$

In Stock, only 2 left!

0

2

Poulan 530027529

Air Filter Cover

$

$

Not available

3

Poulan 530027530

Air Filter

$6.49

$

In Stock, Qty 11

0

4

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015852

Spacer

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530038103

Choke Shutter

$

$

Not available

8

Poulan 530027527

Type 1

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 530037930

Type 2 & 3

$

$

Not available

9

Poulan 530069247

Fuel Line

$7.99

$

In Stock, Qty 20+

0

9

Poulan 530069571

Return Line 185R, 195 Type 2

$6.49

$

In Stock, Qty 10

0

10

Poulan 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 16

0

11

Poulan 530035259

Type 1 (WA-199)
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

11

Poulan 530069651

Type 2 & 3 (WT-298B)

$

$

Not available

12

Poulan 530019156

Carburetor Gasket

$8.99

$

In Stock, only 2 left!

0

13

Poulan 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 15

0

14

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

15

Poulan 530037497

175, 185 & 195 Type 1

$

$

Not available

15

Poulan 530047040

185R & 195 (Type 2)

$

$

Not available

16

Poulan 530027995

175, 185 & 195 Type 1

$

$

Not available

16

Poulan 530047087

185R & 195 (Type 2)

$46.99

$

Usually ships in 3-10 days

0

17

Poulan 530019154

Gasket

$3.99

$

In Stock, only 1 left!

0

18

Poulan 530027593

Reed

$6.49

$

In Stock, only 2 left!

0

19

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 530010960

Connecting Rod Ass'y. (Inc. Bearings)

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 530010934

Crankshaft Ass'y. See Service Reference 1

$34.99

$

Usually ships in 3-10 days

0

22

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

24

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

25

Poulan 530014016

Crankcase Ass'y. (Inc. 33-36)

$

$

Not available

26

Poulan 530014015

Crankcase/Crankshaft Ass'y. (Inc.21,25,33-37)
(Superseded to 530071705)

$37.99

$

Usually ships in 3-10 days

0

27

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

28

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

29

Poulan 530025875

Piston Ring

$

$

Not available

30

Poulan 530019178

Cylinder Gasket
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

31

Poulan 530069277

Piston Kit (Inc. 28, 29, Pin)

$54.99

$

Usually ships in 3-10 days

0

33

Poulan 530032103

Inner Bearing

$

$

Not available

34

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 530032102

Outer Bearing

$

$

Not available

37

Poulan 530015789

Crankshaft Ret. Ring

$4.99

$

Usually ships in 3-10 days

0

38

Poulan 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

39

Poulan 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530069257

Muffler Kit
(Superseded to 530069310)

$

$

Not available

41

Poulan 530036409

Muffler Spring

$

$

Not available

42

Poulan 530012238

Type 1 & 2
(Superseded to 530071581)

$78.99

$

Usually ships in 3-10 days

0

42

Poulan 530069628

Type 3
(Superseded to 530071581)

$78.99

$

Usually ships in 3-10 days

0

43

Poulan 530030077

Type 1 & 2 (CJ-14)

$

$

Not available

43

Poulan 530030075

Type 3 (RCJ-8Y)

$

$

Not available

44

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

45

Poulan 530039134

Ignition Module Kit

$

$

Not available

46

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530039189

Flywheel Ass'y.

$

$

Not available

48

Poulan 530347987

Washer
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

49

Poulan 530027945

Fan Housing

$

$

Not available

50

Poulan 530069291

Starter Pulley (Inc.69)
(Superseded to 530071387)

$

$

Not available

51

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

52

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 17

0

54

Poulan 530014022

Pulley Hsg. Ass'y.

$

$

Not available

55

Poulan 530094189

Clutch Washer

$6.99

$

In Stock, only 1 left!

0

56

Poulan 530069254

Clutch

$

$

Not available

57

Poulan 530015796

Washer

$3.99

$

Usually ships in 3-10 days

0

58

Poulan 530001733

Nut

$

$

Not available

59

Poulan 530014023

Clutch Housing

$

$

Not available

60

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

61

Poulan 530027511

Spacer

$8.99

$

Usually ships in 3-10 days

0

62

Poulan 530015770

Screw

$

$

Not available

63

Poulan 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 530027523

Pulley Retainer

$7.49

$

In Stock, only 2 left!

0

66

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

67

Poulan 530069276

Engine Gasket Kit (Inc. 12, 17 & 30)

$

$

Not available

68

Poulan 952701612

Spark Arrestor Kit

$

$

Not available

69

Poulan 530016080

Screw-Pulley

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 530027690

185 & 195 (Type 1)

$4.99

$

Usually ships in 3-10 days

0

70

Poulan 530047145

185R & 195 (Type 2)

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 530038874

Primer Bulb Ass'y. Type 2 & 3

$

$

Not available

72

Poulan 530016091

Screw-Type 2 & 3

$4.99

$

In Stock, only 1 left!

0

73

Poulan 530038205

Connector 185R & 195 (Type 2)

$2.49

$

Usually ships in 3-10 days

0

74

Poulan 530015882

Screw-Starter Spring Type 3

$

$

Not available

75

Poulan 530027546

Switch Insulator

$4.99

$

Usually ships in 3-10 days

0

76

Poulan 530027545

Switch Ramp

$3.99

$

Usually ships in 3-10 days

0

77

Poulan 530038309

Switch Button

$4.99

$

In Stock, Qty 8

0

78

Poulan 530027959

Switch Spring

$

$

Not available

79

Poulan 530027547

Lead Wire

$

$

Not available

80

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

80

, Instruction Decal

Note: Not Shown.

$

$

Not available

Poulan 530029012

175

Note: Not Shown.

$2.49

$

Usually ships in 3-10 days

0

Poulan 530037988

185 & 195 Type 1 Decal (Not a serviceable part)

Note: Not Shown.

$

$

Not available

Poulan 530038046

185R & 195 (Type 2)

Note: Not Shown.

$

$

Not available

Poulan 530047451

185R Type 3

Note: Not Shown.

$

$

Not available

, Carton Contents Bag

Note: Not Shown.

$

$

Not available

Poulan 530014056

175

Note: Not Shown.

$

$

Not available

Poulan 530014013

185 & 185R 195

Note: Not Shown.

$

$

Not available

Poulan 530014021

Type 1

Note: Not Shown.

$

$

Not available

Poulan 530047135

Type 2

Note: Not Shown.

$

$

Not available

, Operator's Manual

Note: Not Shown.

$

$

Not available

Poulan 530067349

175

Note: Not Shown.

$6.49

$

Usually ships in 3-10 days

0

Poulan 530082112

185

Note: Not Shown.

$

$

Not available

Poulan 530083178

185R

Note: Not Shown.

$9.99

$

Usually ships in 3-10 days

0

Poulan 530082111

195

Note: Not Shown.

$3.99

$

Usually ships in 3-10 days

0
