PP 190 - Poulan Pro Chainsaw CARBURETOR WT-20 Parts Diagram

Chainsaw

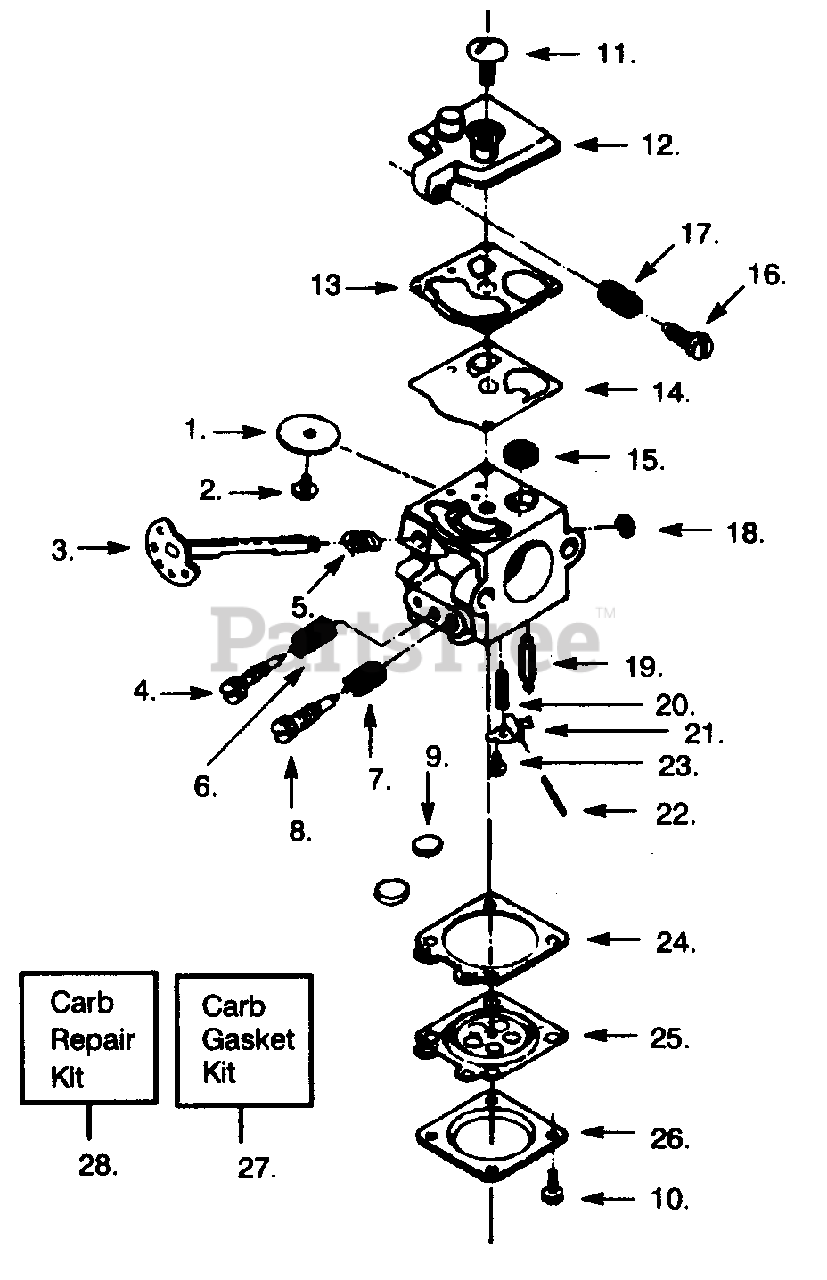

CARBURETOR WT-20 Parts Diagram

  • Title
1

Poulan 530035006

Throttle Valve

$

$

Not available

2

Poulan 530035015

Throttle Valve Screw

$

$

Not available

3

Poulan 530035034

Throttle Shaft Ass'y.

$

$

Not available

4

Poulan 530035171

Low Speed Mixture Needle

$

$

Not available

5

Poulan 530035024

Throttle Return Spring

$

$

Not available

6

Poulan 530035023

Low Speed Mixture Needle Spring
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

7

Poulan 530035167

High Speed Mixture Spring

$

$

Not available

8

Poulan 530035169

High Speed Mixture Needle

$

$

Not available

9

Poulan 530035162

Plug-5/16 Dia. Welch

$

$

Not available

10

Poulan 530035021

Metering Cover Screw Ass'y.

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530035017

Pump Cover Screw

$0.99

$

Usually ships in 3-10 days

0

12

Poulan 530035159

Fuel Pump Cover

$

$

Not available

13

Poulan 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

14

Poulan 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

15

Poulan 530035027

Fuel Inlet Screen

$

$

Not available

16

Poulan 530035035

Idle Speed Adjusting Screw

$

$

Not available

17

Poulan 530035168

Idle Speed Adjusting Screw Spring

$

$

Not available

18

Poulan 530035007

Throttle Retainer Ring

$

$

Not available

19

Poulan 530035016

Inlet Needle Valve

$7.99

$

In Stock, Qty 6

0

20

Poulan 530035188

Metering Lever Spring

$4.99

$

In Stock, Qty 10

0

21

Poulan 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

22

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

23

Poulan 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

24

Poulan 530035165

Metering Diaphragm Gasket

$

$

Not available

25

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

26

Poulan 530035003

Metering Diaphragm Cover

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530035173

Carb. Gasket/Diaphragm (Incl. 13, 14, 24 & 25)
(Superseded to 530069844)

$20.99

$

In Stock, only 3 left!

0

28

Poulan 530035161

Carb. Repair Kit (Incl. 9, 13-15, & 19-25)

$37.99

$

Usually ships in 3-10 days

0
