PP 18H46 - Poulan Pro Lawn Tractor STEERING ASSEMBLY Parts Diagram

Lawn Tractor

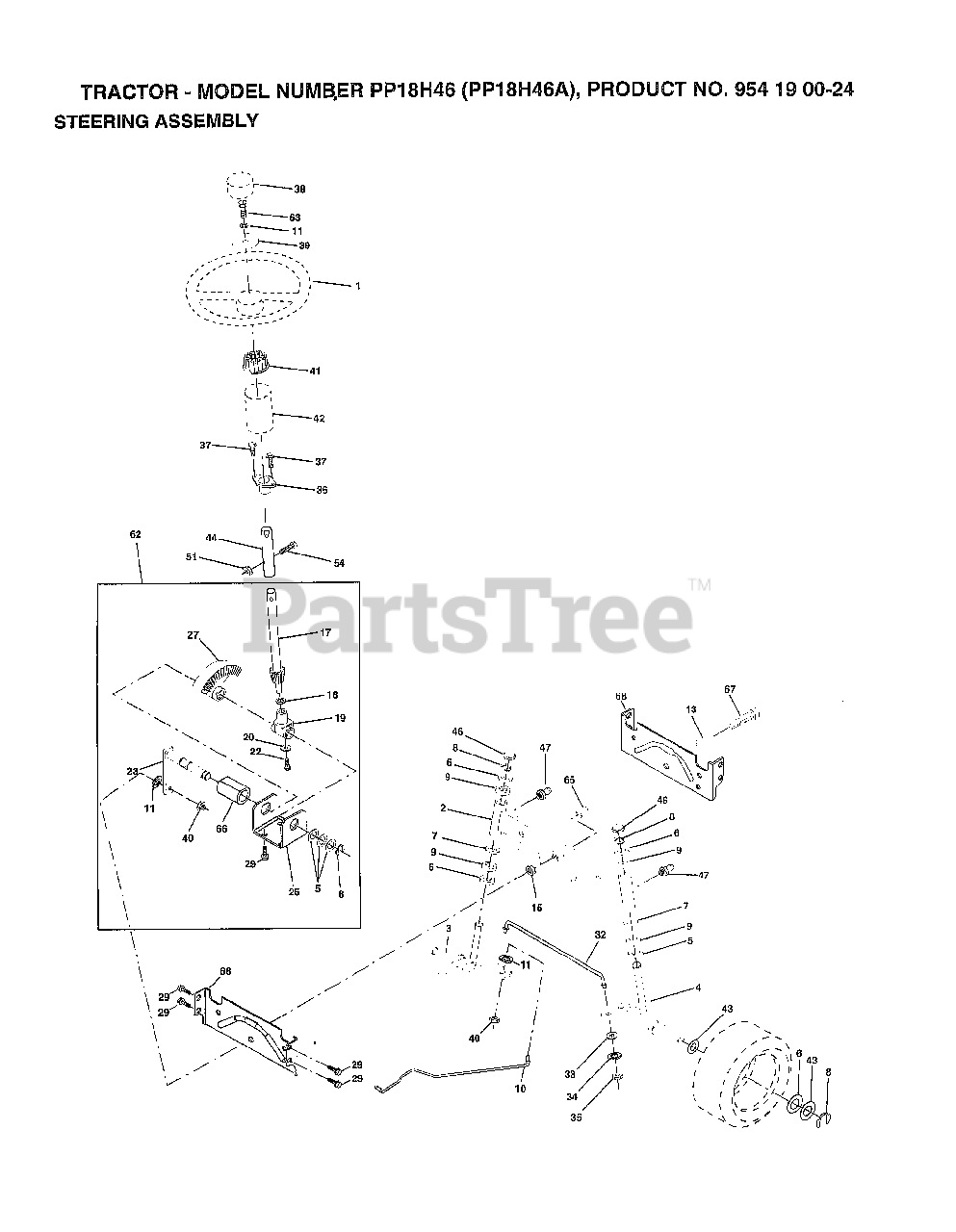

STEERING ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Electrolux/AYP 154427

AXLE ASM
(Superseded to 532418168)

$46.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 156483

SPINDLE.ASM.LH
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 157473

"SPINDLE ASM,RH"
(Superseded to 532157473)

$26.99

$

In Stock, only 1 left!

0

5

CHECK WITH SUPPLIER

$

$

Not available

6

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19272016

WASHER
(Superseded to 819272016)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 156438

DRAGLINK-STAMPED
(Superseded to 532156438)

$93.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 154779

BEARING AXLE
(Superseded to 532154779)

$10.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 156546

SHAFT ASM STEERIN
(Superseded to 532156546)

$35.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 57079

THRUST WASHER
(Superseded to 532057079)

$6.49

$

In Stock, Qty 11

0

19

Electrolux/AYP 124035

SUPPORT SHAFT

$

$

Not available

20

Electrolux/AYP 126684

WASHER SHIM 1/4 X 5/8 X 062

$

$

Not available

22

Electrolux/AYP 71200410

SCREW HEX SOC1/4-
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

23

Electrolux/AYP 127501

SUB= 918127501
(Superseded to 532156365)

$

$

Not available

25

Electrolux/AYP 154406

BRKT-STEERING
(Superseded to 532154406)

$8.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 136874

GEAR SECTOR
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 139929

ROD.TIE.19.75
(Superseded to 532171888)

$68.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

36

Murray 155099

BUSHING.STEERING
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

37

Electrolux/AYP 152927

"SCREW-TT,10-32 FL"
(Superseded to 532152927)

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 126805X

"INSERT,STR WHEEL"
(Superseded to 532126805)

$

$

Not available

39

Electrolux/AYP 19133808

WASHER T
(Superseded to 583789501)

$

$

Not available

40

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

42

Electrolux/AYP 145054

BOOT.STEER.PL
(Superseded to 532169633)

$

$

Not available

43

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 153720

EXT SHAFT STEERIN
(Superseded to 532153721)

$

$

Not available

46

Electrolux/AYP 121232X

CAP
(Superseded to 532121232)

$4.99

$

In Stock, Qty 9

0

47

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

51

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 74780520

BOLT
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 156594

KIT STEERING ASM
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

63

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 154780

SPACER AXLE
(Superseded to 532154780)

$9.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 154404

"BEARING-ARM,PITMA"
(Superseded to 532154404)

$6.49

$

In Stock, only 3 left!

0

67

Electrolux/AYP 74781044

BOLT
(Superseded to 874781044)

$

$

Not available

68

Electrolux/AYP 154429

BRACE AXLE
(Superseded to 532154429)

$21.99

$

Usually ships in 3-10 days

0
