PP 18H44J A - Poulan Lawn Tractor (1994) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

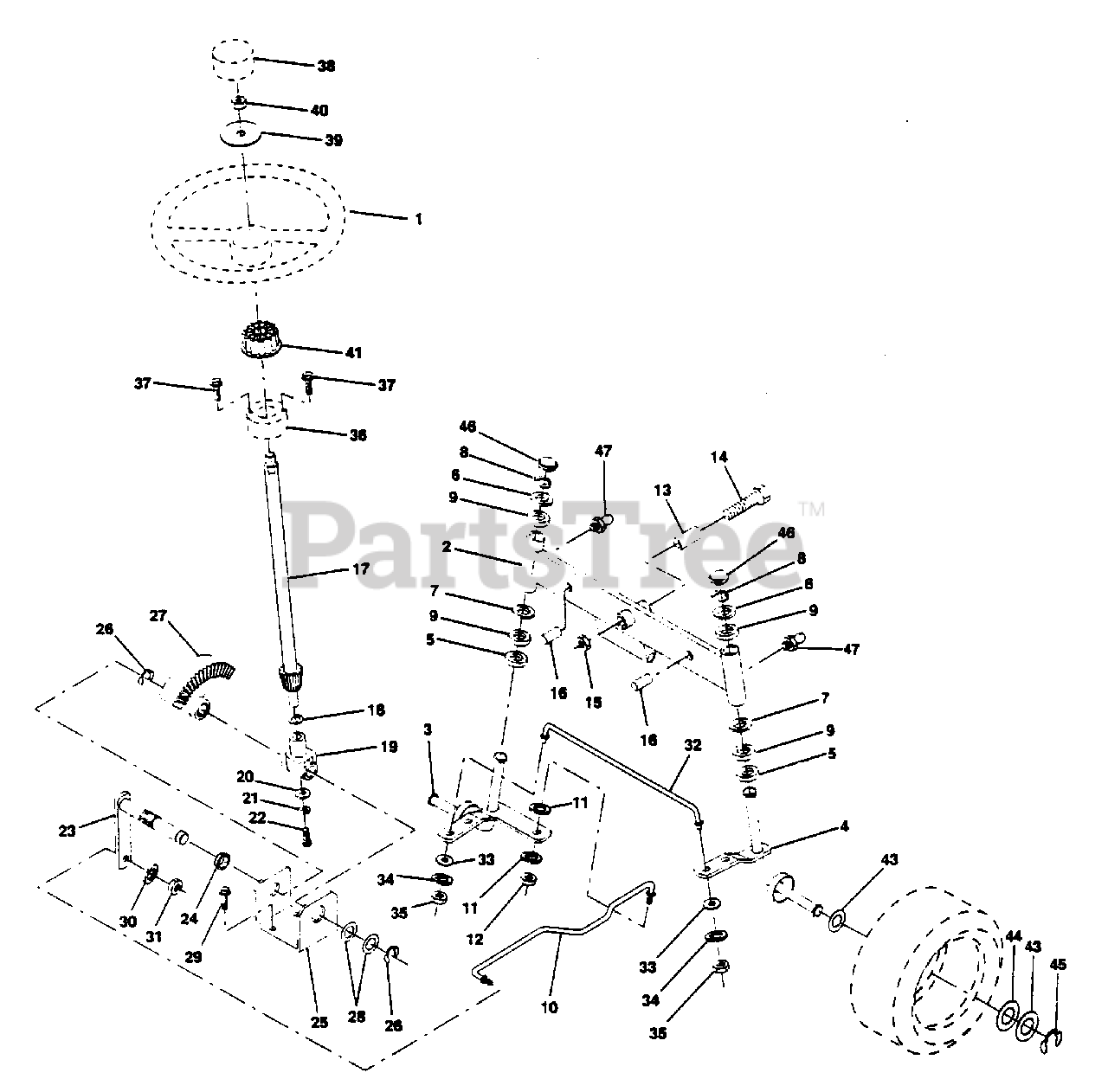

STEERING ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 532121472

Wheel Steering Auto Black
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532142033

Axle Asm Fr LT W/gzks 38/42
(Superseded to 142033)

$

$

Not available

3

Electrolux/AYP 532135227

Spindle Asm LH

$

$

Not available

4

Electrolux/AYP 532135228

Spindle Asm RH

$

$

Not available

5

Electrolux/AYP 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

6

Electrolux/AYP 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 819272016

Washer 27/32 X 1-1/4 X 16 Ga

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532124937

Bearing Col Strg Blk
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

10

Electrolux/AYP 532130468

Link Drag Sol Ball Jt 20 064

$93.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 873610600

Nut Fin Hex 3/8-24 Unf
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532110438

Spacer Bearing Axle Front
(Superseded to 532155134)

$

$

Not available

14

Electrolux/AYP 874011056

Bolt Hex 5/8-11 Unc X 3-1/2

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873901000

Nut Lock Flange 5/8-11 Unc
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532132624

Pin Axle 5/8 X 1 55/1 54 Lg

$

$

Not available

17

Electrolux/AYP 532128762

Shaft Asm Strg 20 31 x 3/4 YP YT
(Superseded to 532156544)

$91.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532057079

Washer Thrust 515x 750x ??33

$6.49

$

In Stock, Qty 10

0

19

Electrolux/AYP 532124035

Support Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

20

Electrolux/AYP 532126684

Washer Shim 1/4 X 5/8 X 062
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

22

Electrolux/AYP 871070410

Screw Hex Socket 1/4-20 X 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

23

Electrolux/AYP 532127501

Shaft Asm Pittman
(Superseded to 532156365)

$

$

Not available

24

Electrolux/AYP 532109816

Nyliner Snap In

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532124036

Bracket Steering

$

$

Not available

26

Electrolux/AYP 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

27

$80.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532124931

Bearing Race Thrust Harden
(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

29

Electrolux/AYP 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

30

Electrolux/AYP 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 873610600

Nut Fin Hex 3/8-24 Unf
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532130467

Rod Tie Wire Form 19 75 Elec
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 810040500

Washer, Lock Hvy Hlcl Spr 5/16

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 873810500

Locknut 5/16-24 Unf
(Superseded to 873610500)

$

$

Not available

36

Electrolux/AYP 532124720

Bushing Strg Blk 742/747 Id
(Superseded to 532001554)

$7.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 817431008

Screw Slftp #10-16 X 1/2 Ty-b
(Superseded to 98000165)

$2.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532126805

Insert Cap Strg Wh Aut
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532100712

Washer 53 X 2 25 X 160 Zinc

$

$

Not available

40

Electrolux/AYP 873940800

Nut Hex Jam Toplock 1/2-20 Unf

$7.49

$

In Stock, only 4 left!

0

41

Electrolux/AYP 532100711

Adapter Wheel Strg 758/ 753id
(Superseded to 532186737)

$9.49

$

In Stock, Qty 6

0

43

Electrolux/AYP 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 532121232

Cap Spindle Fr Top Blk

$4.99

$

In Stock, Qty 8

0

47

Electrolux/AYP 532124836

Fitting Grease
(Superseded to 532006855)

$7.49

$

In Stock, only 2 left!

0
