PP 18H44 JA - Poulan Pro Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

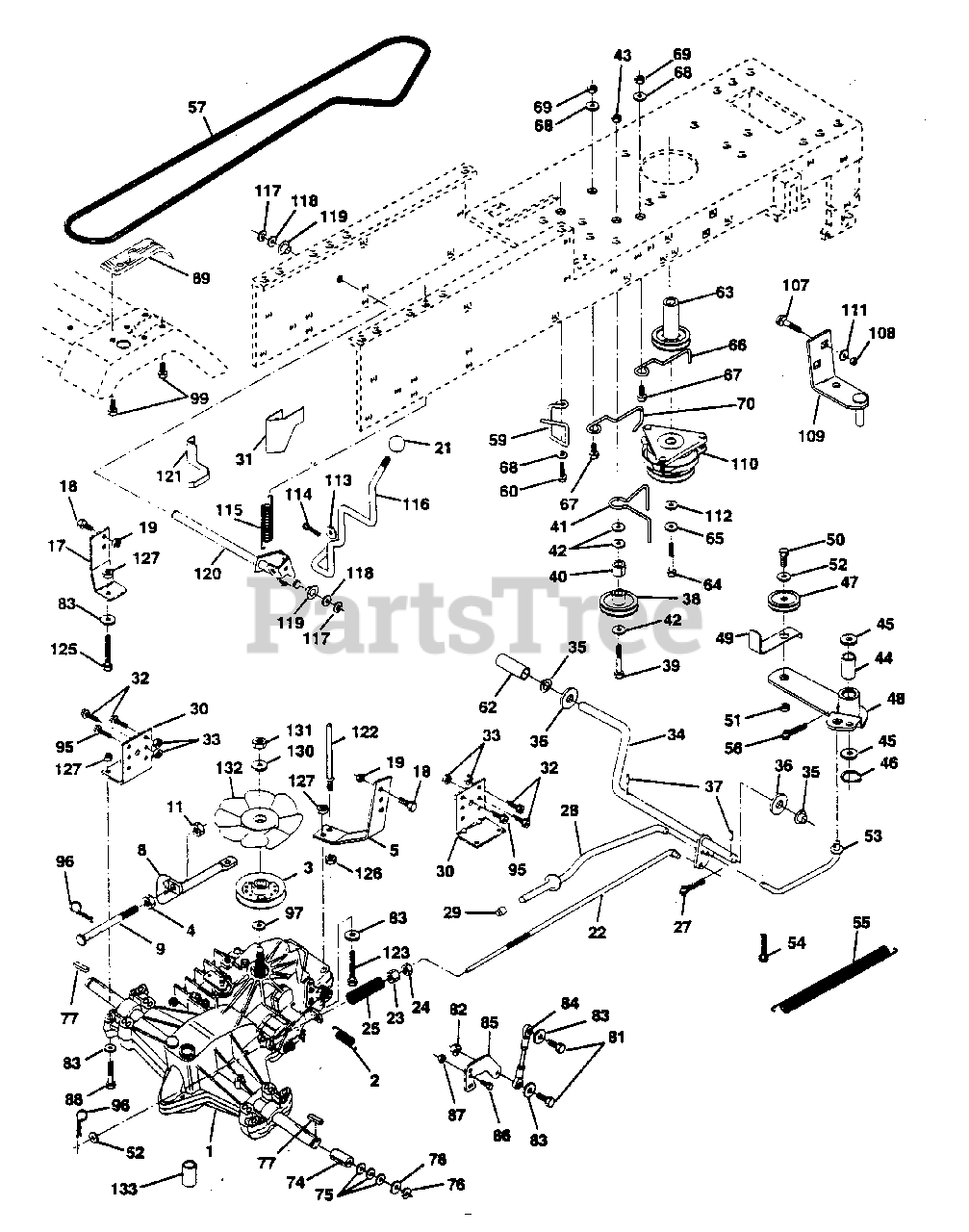

DRIVE Parts Diagram

  • Title

1

Poulan 532140295

Transaxle Assembly (AYP part number)
(Superseded to 532144436)

$

$

Not available

2

Poulan 532142431

Spring, Return, Brake (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

3

Poulan 532140293

Pulley, Transaxle (AYP part number)
(Superseded to 532143995)

$34.99

$

Usually ships in 3-10 days

0

4

Poulan 873350500

Nut Hex Jam 5/16-18 Unc (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

5

Poulan 532140157

Strap Torque Rh Hydro 18/20" T (AYP part number)

$

$

Not available

8

Poulan 532140357

Control Bypass Hydro 18" Tires (AYP part number)
(Superseded to 532144832)

$

$

Not available

9

Poulan 532140550

Rod Bypass Hydro 18/20" (AYP part number)
(Superseded to 532144832)

$

$

Not available

11

Poulan 873800500

Nut Lock Hex W/Ins 5/16-18 Unc P (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 532140158

Strap Torque Lh Hydro 18/20" T (AYP part number)
(Superseded to 140158)

$3.49

$

Usually ships in 3-10 days

0

18

Poulan 874780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 873800600

Nut Lock Hex W/Wsh 3/8-16 Unc (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 532121274

Knob, Duckhead 1/2-13 (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

22

Poulan 532140217

Rod, Brake Hydro (AYP part number)
(Superseded to 532145627)

$193.99

$

In Stock, only 1 left!

0

23

Poulan 873350600

Nut (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

24

Poulan 873800600

Locknut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 532106888

Spring, Brake Rod (AYP part number)
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

27

Poulan 876020412

Pin Cotter 1/8 x 3/4 CAD. (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 532133261

Rod, Parking Brake (AYP part number)

$

$

Not available

29

Poulan 532071673

Cap, Parking Brake (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

30

Poulan 532130807

Bracket, Transaxle (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 532127275

Keeper Belt Lh (AYP part number)

$

$

Not available

32

Poulan 874760512

Bolt Hex Hd 5/16-18 Unc x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 873800500

Nut Lock Hex W/Ins. 5/16-18 Unc (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

34

Poulan 532122424

Shaft, Foot Pedal (AYP part number)

$

$

Not available

35

Poulan 532120183

Bearing, Nylon (AYP part number)

$6.99

$

In Stock, only 4 left!

0

36

Poulan 819211616

Washer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532124963

Pin, Roll (AYP part number)
(Superseded to 532002882)

$

$

Not available

38

Poulan 532123674

Pulley, Idler, Flat (AYP part number)

$31.99

$

In Stock, only 1 left!

0

39

Poulan 874760644

Bolt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532124965

Spacer, Split (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532109070

Keeper, Belt Retainer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 819131312

Washer 13/32 x 13/16 x 12 Gauge (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

43

Poulan 873800600

Nut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 532105706

Bearing, Nylon (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 532110812

Washer, Hardened (AYP part number)
(Superseded to 110812X)

$

$

Not available

46

Poulan 812000039

Ring, Klip (AYP part number)

$6.49

$

In Stock, Qty 8

0

47

Poulan 532127783

Pulley, Idler, V-Groove
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Poulan 532123789

Bellcrank Assembly (AYP part number)

$

$

Not available

49

Poulan 532123205

Retainer, Belt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 874760624

Bolt (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Poulan 873680600

Nut
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

52

Poulan 819131316

Washer (AYP part number)

$4.99

$

In Stock, Qty 5

0

53

Poulan 532105710

Link, Clutch (AYP part number)
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

54

Poulan 876020412

Pin (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 532105709

Spring, Return, Clutch (AYP part number)

$11.99

$

In Stock, Qty 6

0

56

Poulan 876020412

Pin (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

57

Poulan 532140294

V-Belt, Ground Drive (AYP part number)

$39.99

$

In Stock, only 1 left!

0

59

Poulan 532140312

Keeper, Center Span (AYP part number)
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

60

Poulan 817490612

Screw Thdrol. 3/8-16 x 3/4 Ty. TT (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Poulan 532124872

Cover, Pedal (AYP part number)
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Poulan 532140189

Pulley, Engine (AYP part number)

$42.99

$

Usually ships in 3-10 days

0

64

Poulan 871170768

Bolt, Hex (AYP part number)
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

65

Poulan 810040700

Washer (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Poulan 532105730

Keeper Belt Engine (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

67

Poulan 874760616

Bolt (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

68

Poulan 819131312

Washer 13/32 x 13/16 x 12 Gauge (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

69

Poulan 873800600

Nut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 532121218

Keeper Belt Engine (AYP part number)

$

$

Not available

74

Poulan 532121199

Spacer, Split (AYP part number)

$

$

Not available

75

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

76

Poulan 812000001

E-Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 532123583

Key, Square (AYP part number)

$4.99

$

In Stock, only 3 left!

0

78

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 10

0

81

Poulan 874780520

Bolt Fin Hex 5/16-18 Unc x 1-1/4 (AYP part number)
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

82

Poulan 873800500

Nut Lock Hex W/Ins. 5/16-18 Unc P (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

83

Poulan 819111216

Washer 11/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

84

Poulan 532140548

Rod, Tie Hydro 20" Tires (AYP part number)

$

$

Not available

85

Poulan 532140156

Arm, Control Hydro (AYP part number)
(Superseded to 140156)

$

$

Not available

86

Poulan 871070516

Screw Cap Hex 5/16 x 18 x 1 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

87

Poulan 873800500

Nut Lock Hex W/Ins. 5/16-18 Unc P (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

88

Poulan 874780544

Bolt Fin Hex 5/16-18 Unc (AYP part number)
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

89

Poulan 532139989

Console, Shift (AYP part number)
(Superseded to 532153762)

$

$

Not available

95

Poulan 817490612

Screw, Thdroll. 3/8-16 x 1 Type TT (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

96

Poulan 532124788

Retainer Spring 1" Zinc/Cad (AYP part number)
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

97

Poulan 819211616

Washer 21/32 x 1 x 16 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

99

Poulan 532142432

Screw (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

107

Poulan 872140506

Bolt Carriage 5/16-18
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

108

Poulan 873680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

109

Poulan 532137141

Bracket, Asm Mtg Clutch (AYP part number)
(Superseded to 137141)

$

$

Not available

110

Poulan 532137140

Clutch, Electric (AYP part number)
(Superseded to 532142600)

$

$

Not available

111

Poulan 819111012

Washer 11/32 x 5/8 x 12 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

112

Poulan 532126197

Washer 1-1/2 OD x 15/32 ID x .250 (AYP part number)

$8.99

$

In Stock, only 3 left!

0

113

Poulan 819171216

Washer 17/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

114

Poulan 876020416

Pin Cotter 1/8 x 1 CAD (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

115

Poulan 532123782

Spring Torsion T/A (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

116

Poulan 532141002

Rod Shift Fender YT (AYP part number)

$

$

Not available

117

Poulan 812000008

Ring Klip #5304-62 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

118

Poulan 819212016

Washer 21/32 x 1-1/4 x 16 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

119

Poulan 532071208

Bushing Rod Steering 629/632 ID (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

120

Poulan 532140154

Shaft Asm. Cross Hydro 20" Tires (AYP part number)
(Superseded to 532156046)

$

$

Not available

121

Poulan 532140470

Keeper Belt Lh Hydro 0750. 18/20" (AYP part number)

$6.99

$

Usually ships in 3-10 days

0

122

Poulan 532140469

Keeper Belt Rh Hydro 0750. 18/20" (AYP part number)

$

$

Not available

123

Poulan 874780536

Bolt Fin Hex 5/16-18 x 2-1/4 (AYP part number)

$

$

Not available

125

Poulan 874780524

Bolt Fin Hex 5/6-18 Unc x 1-1/2 (AYP part number)
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

126

Poulan 873510600

Nut Keps Hex 3/8-16 Unc (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

127

Poulan 873800500

Nut Lock Hex W/Ins 5/16-18 Unc P (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

130

Poulan 532141322

Washer Belleville .501D x 1.50D (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

131

Poulan 532050831

Nut Nylon Insert 1/2-20 Unf. (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

132

Poulan 532140462

Fan, Hydro 7" (AYP part number)

$12.99

$

In Stock, only 1 left!

0

133

Poulan 532142564

Line Fuel Hydro 4" (AYP part number)

$6.49

$

Usually ships in 3-10 days

0
