PP 1846 - Poulan Pro Lawn Tractor Ground Drive Parts Diagram

Lawn Tractor

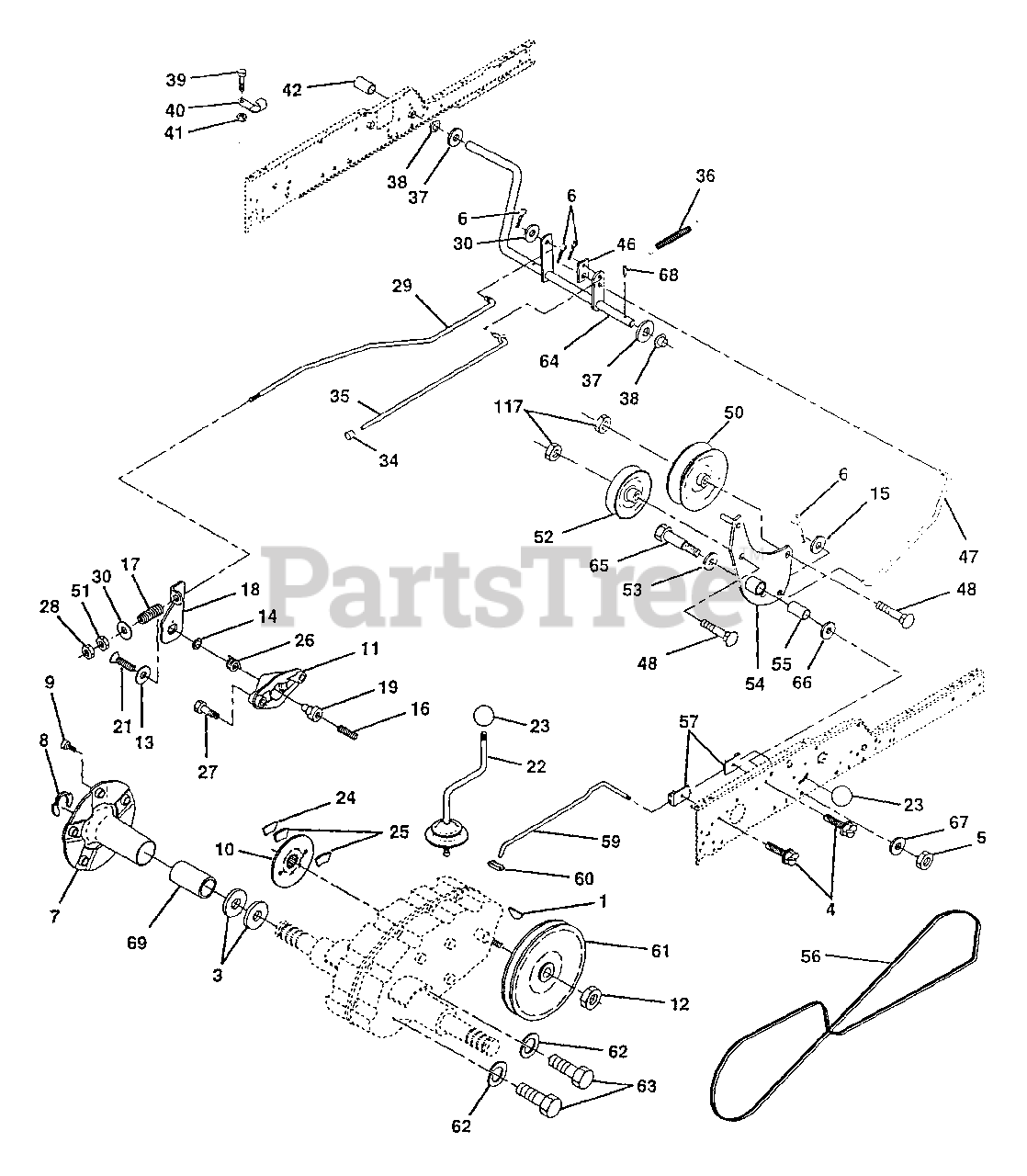

Ground Drive Parts Diagram

  • Title
1

Poulan 532124708

Key Woodruff (AYP part number)
(Superseded to 532009858)

$

$

Not available

3

Poulan 7563R

Washer Thrust Axle Harden
(Superseded to 532007563)

$8.99

$

In Stock, only 1 left!

0

4

Poulan 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 73680600

Nut Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 76020412

Pin Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

7

Poulan 532149176

Wheel Hub Asm. (AYP part number)
(Superseded to 532634692)

$42.99

$

Usually ships in 3-10 days

0

8

Poulan 12000034

Ring Klip
(Superseded to 812000034)

$

$

Not available

9

Poulan 140080

Bolt Hub
(Superseded to 532140080)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 142509

Disc Brake
(Superseded to 532142509)

$

$

Not available

11

Poulan 136927

Yoke Brake Disc
(Superseded to 532136927)

$

$

Not available

12

Poulan 9204H

Locknut 1/2-20

$

$

Not available

13

Poulan 139419

Washer Special
(Superseded to 532139419)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 138901

Bushing
(Superseded to 532138901)

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 19131316

Washer 13/32 x 13/16 x 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 143012

Set Screw 1/4-28 x 3/4
(Superseded to 532143012)

$2.99

$

Usually ships in 3-10 days

0

17

Poulan 126909X

Spring
(Superseded to 532126909)

$5.99

$

Usually ships in 3-10 days

0

18

Poulan 137104

Lever Brake

$3.49

$

Usually ships in 3-10 days

0

19

Poulan 136926

Cam Brake Disc
(Superseded to 532136926)

$

$

Not available

21

Poulan 23260412

Screw Flat Head 1/4-28 x 3/4
(Superseded to 823260412)

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 633A109

Gearshift Lever Assembly
(Superseded to 532124863)

$

$

Not available

23

$

$

Not available

24

Poulan 136925

Support Puck Brake
(Superseded to 532136925)

$

$

Not available

25

Poulan 136923

Puck Brake Top
(Superseded to 532136923)

$

$

Not available

26

Poulan 137552

Spring Return
(Superseded to 532137552)

$

$

Not available

27

Poulan 17490528

Screw Hex Wsh Thd 5/16-18 x 1-3/4
(Superseded to 817490528)

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 73350600

Nut Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 137213

Brake Rod
(Superseded to 532137213)

$21.99

$

Usually ships in 3-10 days

0

30

Poulan 19131616

Washer 13/32 x 1 x 16 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 71673

Cap Plunger
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

35

Poulan 137648

Rod Parking Brake
(Superseded to 532137648)

$11.99

$

In Stock, only 1 left!

0

36

Poulan 149412

Spring Extension
(Superseded to 532149412)

$

$

Not available

37

Poulan 121749X

Washer 25/32 x 1-1/4 x 16 Gauge
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

38

Poulan 150035

Nyliner
(Superseded to 532150035)

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 74321016

Screw Fin #10-24 x 1
(Superseded to 874321016)

$

$

Not available

40

Poulan 5304J

Actuator Interlock Switch (AYP part number)
(Superseded to 532178575)

$

$

Not available

41

Poulan 73631000

Nut Lock #10-24 (AYP part number)

$

$

Not available

42

Poulan 123533X

Cover Pedal
(Superseded to 532123533)

$6.99

$

Usually ships in 3-10 days

0

46

Poulan 145170

Retainer Spring
(Superseded to 532145170)

$4.99

$

Usually ships in 3-10 days

0

47

Poulan 138228

Clutch Rod
(Superseded to 532138228)

$12.99

$

Usually ships in 3-10 days

0

48

Poulan 72110612

Bolt Carr. SH 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 131494

Pulley Idler Flat (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

51

Poulan 73680600

Nut Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 139123

Pulley Idler Grooved
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

53

Poulan 207J

Washer Hardened
(Superseded to 532000207)

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 156563

Clutch Arm Asm (AYP part number)
(Superseded to 532161590)

$18.99

$

Usually ships in 3-10 days

0

55

Poulan 105706X

Bearing, Idler
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

56

Poulan 137153

V-Belt
(Superseded to 532137153)

$72.99

$

Usually ships in 3-10 days

0

57

Poulan 141756

Bracket Shift Rod Hi-Lo

$2.49

$

Usually ships in 3-10 days

0

59

Poulan 122253X

Shift Rod Hi-Lo
(Superseded to 532122253)

$14.99

$

Usually ships in 3-10 days

0

60

Poulan 122268X

Spring Clip Connecting Link
(Superseded to 532122268)

$6.49

$

Usually ships in 3-10 days

0

61

Poulan 137524

Pullery Transaxle (AYP part number)

$

$

Not available

62

Poulan 10040700

Washer Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

63

Poulan 74760720

Bolt Fin Hex 7/16-14 x 1-1/4 (AYP part number)
(Superseded to 874780720)

$6.99

$

Usually ships in 3-10 days

0

64

Poulan 154752

Shaft Clutch/Brake Pedal

$

$

Not available

65

Poulan 67609

Bolt Shoulder
(Superseded to 532179613)

$6.49

$

In Stock, only 2 left!

0

66

Poulan 140296

Washer Hardened
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

67

Poulan 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

68

Poulan 5142H

Pin Roll
(Superseded to 532437620)

$4.99

$

Usually ships in 3-10 days

0

69

Poulan 136327

Hub Cover
(Superseded to 532136327)

$6.49

$

Usually ships in 3-10 days

0

117

Poulan 73900600

Nut Lock Flg 3/8-16 UNC (AYP part number)

$

$

Not available
