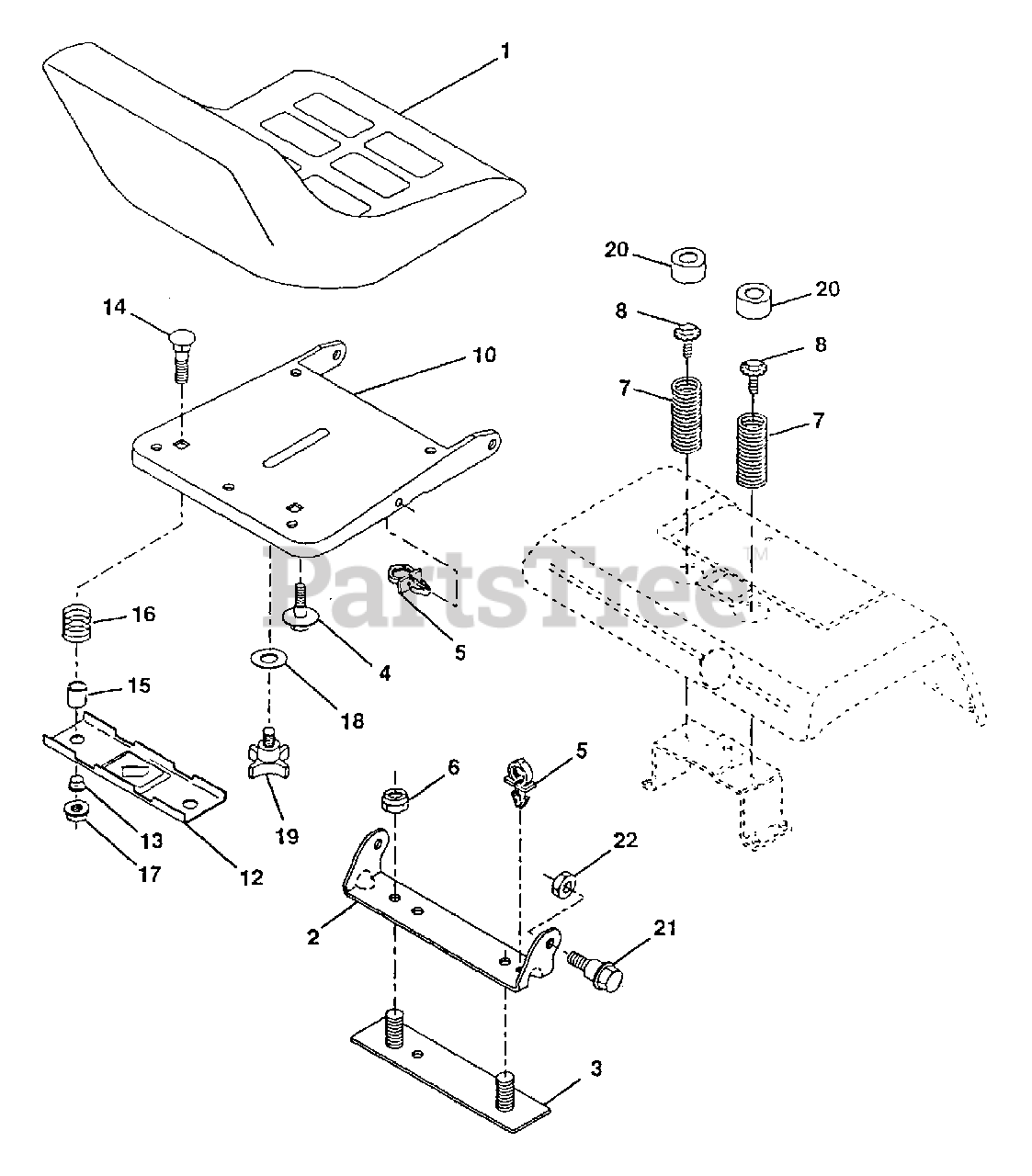

PP 1846 A - Poulan Pro Lawn Tractor Seat Assembly Parts Diagram

Lawn Tractor

Seat Assembly Parts Diagram

  • Title
1

Poulan 127440

Seat
(Superseded to 532401043)

$

$

Not available

2

Poulan 140551

Bracket, Pivot Seat
(Superseded to 532140551)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 140675

Strap, Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

4

Poulan 127018X

Bolt, Shoulder 5/16-18 X .62
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

5

Poulan 145006

Clip, Push In
(Superseded to 532145006)

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 73680600

Nut Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 124181X

Spring, Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Poulan 150176

Bolt 5/16-18 UNC x 3/4 w/Sems
(Superseded to 532149741)

$7.49

$

In Stock, only 2 left!

0

10

Poulan 155925

Pan, Seat (AYP part number)
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

12

Poulan 121246X

Bracket, Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Poulan 121248X

Bushing, Snap
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 72050411

Bolt, Carriage 1/4-20 X 1-3(8 (AYP part number)

$

$

Not available

15

Poulan 121249X

Spacer, Split
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

16

Poulan 123740X

Spring, Cprsn
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 123976X

Nut, Lock 1/4 Lge Flg Gr. 5 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

18

Poulan 19171912

Washer 17/32 X 1-3/16 X 12 Ga.
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

19

Poulan 120068X

Knob, Seat 1/2-13 Unc
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

20

Poulan 124238X

Cap, Spring Seat
(Superseded to 532124238)

$

$

Not available

21

Poulan 153236

Bolt, Shoulder 5/16-18 Unc (AYP part number)
(Superseded to 532171852)

$4.99

$

In Stock, Qty 8

0

22

Poulan 73680500

Nut, Crownlock 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0
