PP 1846 A - Poulan Pro Lawn Tractor Engine Parts Diagram

Lawn Tractor

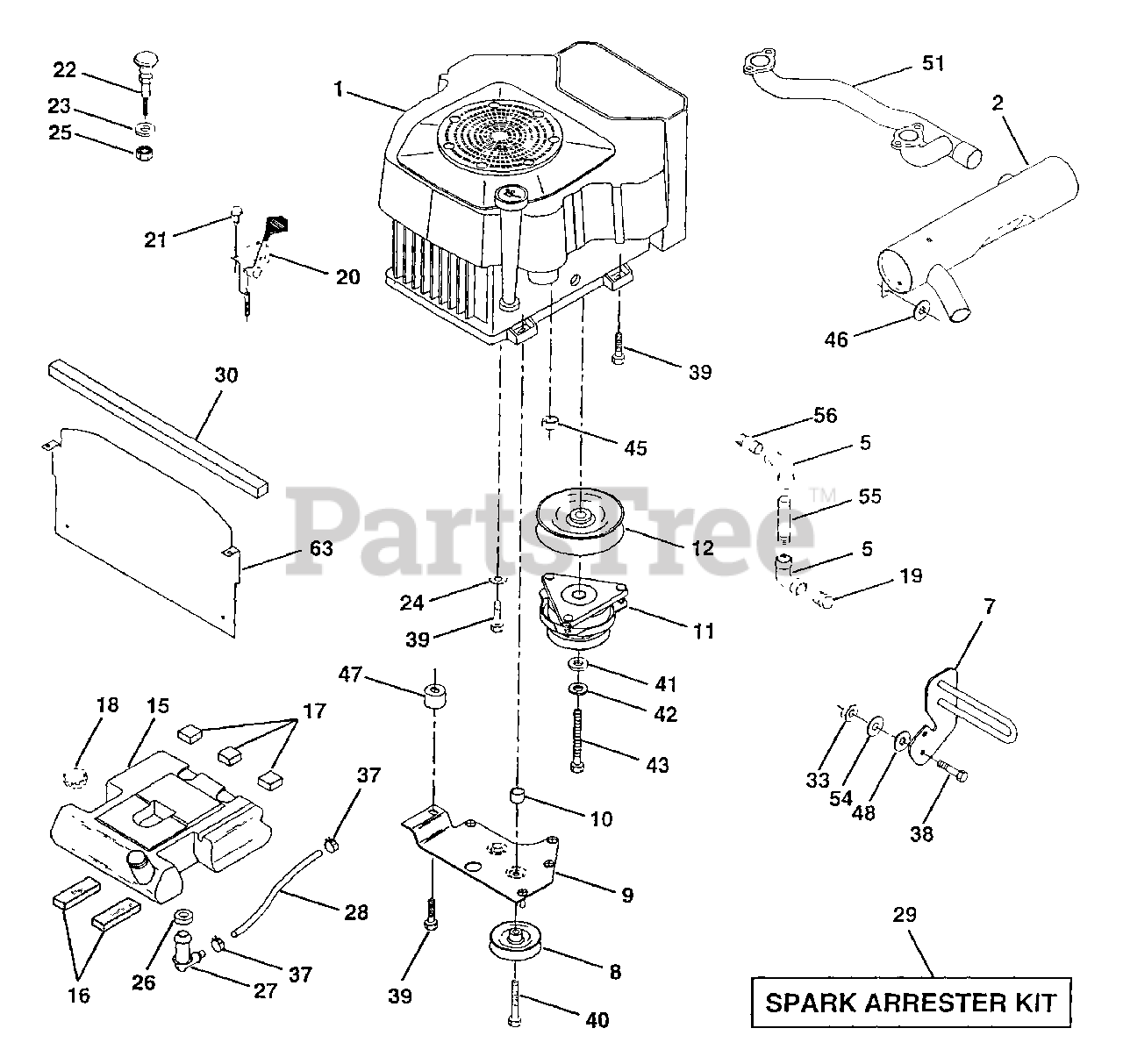

Engine Parts Diagram

  • Title

1

Engine Kohler,

Note: Model No. CV18S

$

$

Not available

2

Poulan 144636

Muffler VGT Cylinder

$

$

Not available

5

Poulan 13200300

Elbow STD 90 Degree 3/8 - 18 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

7

Poulan 151396

Muffler Assembly Guard

$

$

Not available

8

Poulan 121361X

Pulley V-Idler (AYP part number)

$

$

Not available

9

Poulan 150828

Keeper Asm Belt Engine VGT96 (AYP part number)
(Superseded to 532177748)

$

$

Not available

10

Poulan 105432X

Bushing

$

$

Not available

11

Poulan 140923

Clutch Electric (AYP part number)

$

$

Not available

12

Poulan 143996

Pulley Engine VGT Elect Clutch
(Superseded to 532143996)

$53.99

$

In Stock, only 1 left!

0

15

Poulan 151346

Tank Fuel Rear 3.50
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

16

Poulan 109227X

Pad Spacer
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 106082X

Pad Spacer
(Superseded to 532106082)

$

$

Not available

18

Poulan 140527

Cap Asm Fuel W/Sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

19

Poulan 13290300

Plug Oil Drain

Note: (Order From Engine Manufacturer)

$

$

Not available

20

Poulan 132747

Control Throttle (AYP part number)

$

$

Not available

21

Poulan 17720410

Screw Hex Thd Cut 1/4 - 20 X 5/8

$2.99

$

Usually ships in 3-10 days

0

22

Poulan 132781

Control Choke
(Superseded to 532132781)

$

$

Not available

23

Poulan 19131316

Washer 13/32 X 13/16 x 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

24

Poulan 11050600

Washer Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

25

Poulan 73920600

Nut Keps 3/8-24 UNF
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 3645J

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 139277

Stem Tank Fuel
(Superseded to 532139277)

$8.99

$

In Stock, Qty 7

0

28

Poulan 7834R

Fuel Line (AYP part number)

$

$

Not available

29

Poulan 132920

Spark Arrester Kit

$

$

Not available

30

Poulan 105037X

Strip Foam 18"

$

$

Not available

33

Poulan 73800600

Nut, Hex W/Ins. 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 123487X

Clamp Hose
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

38

Poulan 74780624

Bolt, Fin Hex 3/8-16 UNC x 1-1/2

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 17490636

Screw TT 3/8-16 x 2-1/4 UNC
(Superseded to 817490636)

$2.49

$

In Stock, Qty 6

0

40

Poulan 17490664

Screw TT 3/8-16 x 4 UNC
(Superseded to 817490664)

$

$

Not available

41

Poulan 126197X

Washer 1-1/2 OD X 15/32 ID X .250
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

42

Poulan 10040700

Washer Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 150280

Bolt Hex 7/16-20 X 4-1/4 Ga 5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

45

Poulan 128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 539128861)

$31.99

$

Usually ships in 3-10 days

0

46

Poulan 19131616

Washer 13/32 x 1 x 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 142040

Spacer Engine CV22 Round PM

$2.99

$

Usually ships in 3-10 days

0

48

Poulan 19132007

Washer 13/32 x 1-1/4 x 7 Ga.
(Superseded to 819132007)

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 532140787

Pipe Crossover CV22 (AYP part number)
(Superseded to 532161230)

$

$

Not available

54

Poulan 19131414

Washer Flat 13/32 x 7/8 x 14 Ga.
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

55

Poulan 13090336

Nipple, Pipe 3/8 NPT x 4-1/2
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

56

Poulan 13090308

Nipple, Pipe 3/8 NPT x 1.00
(Superseded to 813090308)

$4.99

$

Usually ships in 3-10 days

0

63

Poulan 145549

Shield, Heat VGT 22 HP YP/Husq.

$8.99

$

Usually ships in 3-10 days

0
