PP 1844K - Poulan Lawn Tractor (1995) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

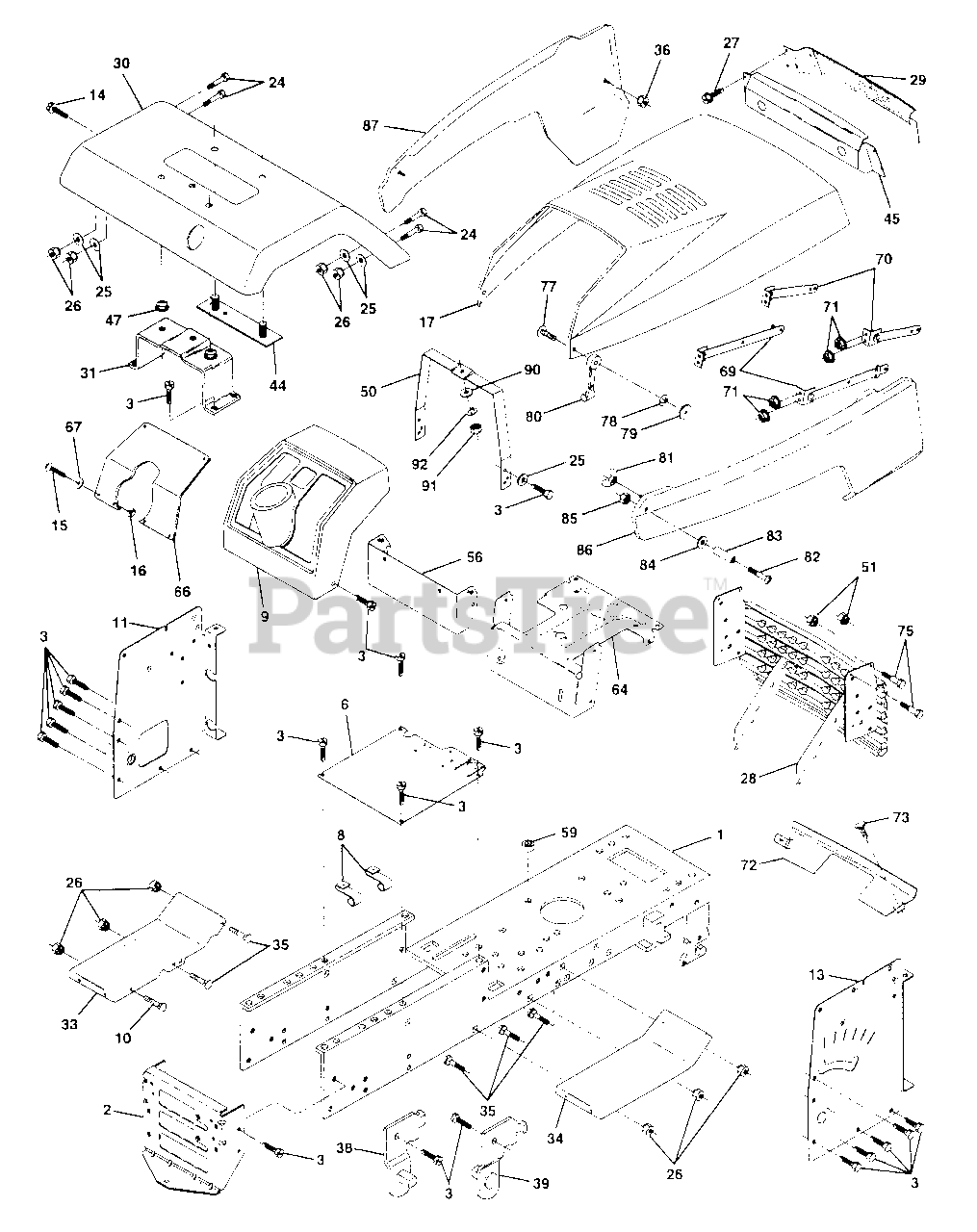

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532145501

Chassis Weldment 11 Ga

$

$

Not available

2

Electrolux/AYP 532140356

Drawbar Stretch
(Superseded to 532145009)

$

$

Not available

3

Electrolux/AYP 817490612

Screw Thdrol 3/8 - 16 x 3/4 Ty-TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 532145206

Saddle

$

$

Not available

8

Electrolux/AYP 532126471

Clip Insulator

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532140398

Dash Black Yard Pro

$

$

Not available

10

Electrolux/AYP 872140608

Bolt Carriage 3/8-16 Unc x 1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532145218

Panel Pnt Dash Lh

$

$

Not available

13

Electrolux/AYP 532145217

Panel Pnt Dash Rh

$

$

Not available

14

Electrolux/AYP 817490608

Screw Thdrol 3/8 - 16 x Ty-TT

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 874180512

Screw Mach Trhd 5/16 - 18 UNC x 3/4

$

$

Not available

16

Electrolux/AYP 873510500

Nut Keps 5/16 - 18 UNC
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532144524

Hood Pnt

$

$

Not available

24

Electrolux/AYP 874780616

Bolt Fin Hex 3/8 - 16 Unc x 1

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 819131312

Washer 13/32 x 13/16 x 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 873800600

Nut Lock 3/8 - 16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 817030814

Screw Lock Spider #8 x 7/8
(Superseded to 532161464)

$

$

Not available

28

Electrolux/AYP 532131681

Grille Asm

$

$

Not available

29

Electrolux/AYP 532146459

Lens/Clip Asm Bar Clear

$

$

Not available

30

Electrolux/AYP 532144523

Fender Pnt

$

$

Not available

31

Electrolux/AYP 532137113

Bracket Pnt Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532147947

Footrest Pnt Lh

$6.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532147948

Footrest Pnt Th

$

$

Not available

35

Electrolux/AYP 872110606

Bolt Rdhd Sht Sqnk 3/8 - 16 x 3/4

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532108067

Nut Pal
(Superseded to 108067X)

$

$

Not available

38

Electrolux/AYP 532139886

Bracket Asm Pivot Lh

$8.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532140675

Strap Asm. Fender

$6.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532124939

Bezel Asm. Pnt
(Superseded to 583678801)

$

$

Not available

47

Electrolux/AYP 532105531

Nut Push Nylon

$2.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532145205

Support Pnt Dash

$

$

Not available

51

Electrolux/AYP 873800400

Nut Lock, W/Insert 1/4 - 20 UNC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532145151

Dash Extension

$

$

Not available

59

Electrolux/AYP 532110436

Bushing Snap Split
(Superseded to 532009151)

$

$

Not available

64

Electrolux/AYP 532145095

Dash Pnt Lower
(Superseded to 532150272)

$

$

Not available

66

Electrolux/AYP 532142122

Plate Silkscreened Dash

$

$

Not available

67

Electrolux/AYP 819111116

Washer 11/32 x 11/16 x 16 Ga
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

69

Electrolux/AYP 532106784

Strap Asm Pnt Hinge Rear (blk)

$

$

Not available

70

Electrolux/AYP 532104618

Strap Asm Pnt Hinge Front

$

$

Not available

71

Electrolux/AYP 873640400

Nut Keps Hex 1/4 - 20 UNC

$

$

Not available

72

Electrolux/AYP 532147944

Strap Grille

$

$

Not available

73

Electrolux/AYP 817580408

Screw Taptite 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 532123481

Bolt, Shoulder 1/4 - 20 UNC
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 874191008

Screw Mach Cr Pan #10-24 x 1/2
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 810071000

Washer Lock #10

$4.99

$

In Stock, Qty 14

0

79

Electrolux/AYP 532125004

Nut Weld .327/.304 #10 - 24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 532109808

Latch Chute Blk

$6.99

$

In Stock, Qty 15

0

81

Electrolux/AYP 532123198

Nut Plastic Locking Wng 1/4 - 20
(Superseded to 532146525)

$

$

Not available

82

Electrolux/AYP 874981020

Screw Mach Cr Pan #10 - 24 x 1-1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

83

Electrolux/AYP 532007206

Spacer Split #10 x 3/4 Cad/Zin

$7.49

$

In Stock, Qty 8

0

84

Electrolux/AYP 819070818

Washer 7/32 x 1/2 x 18 Ga
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

85

Electrolux/AYP 873731000

Nut Keps #10 - 24 Unc
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 532144526

Panel Pnt Rh Side

$

$

Not available

87

Electrolux/AYP 532144525

Panel Pnt Lh Side

$

$

Not available

90

Electrolux/AYP 819091216

Washer 9/32 x 3/4 x 16 Ga
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

91

Electrolux/AYP 873220400

Nut Fin Hex 1/4 - 20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

92

Electrolux/AYP 810040400

Washer Lock Hvy. Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

Electrolux/AYP 532121794

Cover Access Black Square
(Superseded to 121794X)

Note: Not Shown.

$

$

Not available
