PP 1844 - Poulan Lawn Tractor (1991) TRANSAXLE - PEERLESS MODEL NUMBER 820-016 Parts Diagram

Lawn Tractor

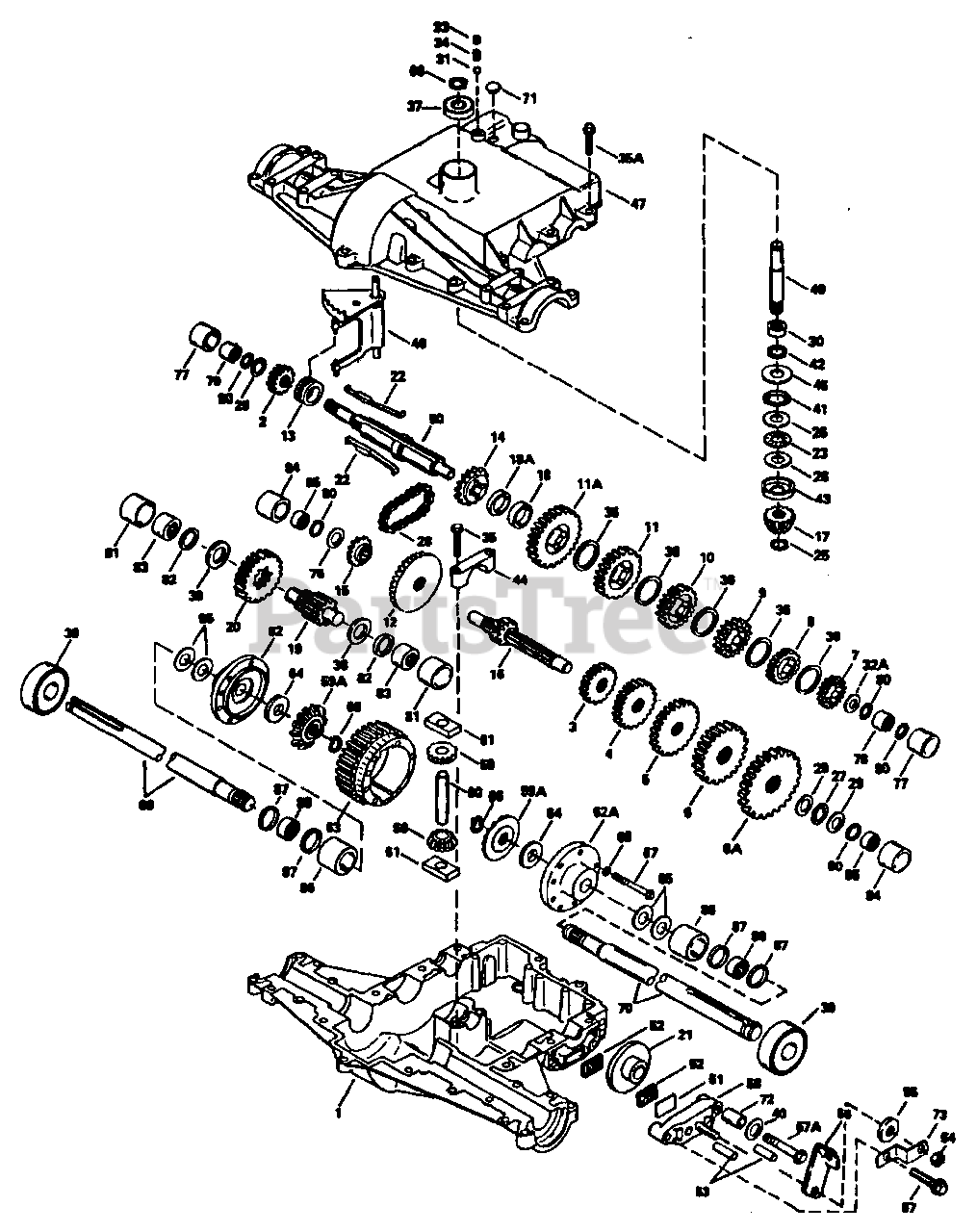

TRANSAXLE - PEERLESS MODEL NUMBER 820-016 Parts Diagram

  • Title

1

Electrolux/AYP 770088

Case, Transaxle

$

$

Not available

2

Electrolux/AYP 778253

Gear, Spur (15 teeth)

$

$

Not available

3

Electrolux/AYP 778211

Gear, Spur (12 teeth)

$

$

Not available

4

Electrolux/AYP 778240

Gear, Spur (18 teeth)

$

$

Not available

5

Electrolux/AYP 778201

Gear, Spur (25 teeth)

$

$

Not available

6

Electrolux/AYP 778202

Gear, Spur (28 teeth)

$

$

Not available

6A

Electrolux/AYP 778208

Gear, Spur (31 teeth)

$

$

Not available

7

Electrolux/AYP 778209

Gear, Spur (19 teeth)

$

$

Not available

8

Electrolux/AYP 778203A

Gear, Spur (22 teeth)

$

$

Not available

9

Electrolux/AYP 778204A

Gear, Spur (25 teeth)

$

$

Not available

10

Electrolux/AYP 778239A

Gear, Spur (32 teeth)

$

$

Not available

11

Electrolux/AYP 778207A

Gear, Spur (37 teeth)

$

$

Not available

11A

Electrolux/AYP 778216A

Gear, Spur (41 teeth)

$

$

Not available

12

Electrolux/AYP 778246

Gear, Bevel (33 teeth)

$

$

Not available

13

Electrolux/AYP 784216

Collar, Shift

$

$

Not available

14

Electrolux/AYP 786123

Sprocket (18 teeth)

$

$

Not available

15

Electrolux/AYP 786082

Sprocket (9 teeth)

$

$

Not available

16

Electrolux/AYP 776291

Shaft, Counter (w/9 tooth gear)

$

$

Not available

17

Electrolux/AYP 778245

Bevel Pinion, Input (13 teeth)

$

$

Not available

18

Electrolux/AYP 786121

Spacer, Neutral (.350/.340 thick)

$

$

Not available

18A

Electrolux/AYP 786122

Spacer, Neutral (.276/.268 thick)

$

$

Not available

19

Electrolux/AYP 776275

Shaft, Output (9 teeth)

$

$

Not available

20

Electrolux/AYP 778247

Gear, Output (35 teeth)

$

$

Not available

21

Electrolux/AYP 790043

Disk, Brake

$

$

Not available

22

Electrolux/AYP 792138

Key

$

$

Not available

23

Electrolux/AYP 780084

Bearing, Thrust

$

$

Not available

25

Electrolux/AYP 788040

Ring, Retaining

$

$

Not available

26

Electrolux/AYP 780051

Washer, Thrust

$

$

Not available

27

Electrolux/AYP 780071

Bearing, Thrust

$

$

Not available

28

Electrolux/AYP 786081

Chain, Roller (No. 41 chain, 24 links)

$

$

Not available

29

Electrolux/AYP 780072

Washer, Thrust

$

$

Not available

30

Electrolux/AYP 780155

Bearing, Needle

$

$

Not available

31

Electrolux/AYP 792077

Ball, Steel

$

$

Not available

32A

Electrolux/AYP 780139

Washer, Thrust

$

$

Not available

33

Electrolux/AYP 792078

Screw, Set, 3/8-16 x 3/8

$

$

Not available

34

Electrolux/AYP 792079

Spring

$

$

Not available

35

Electrolux/AYP 792073

Screw, Flanged hex hd. thread-forming, 1/4-20 x 1-1/4

$

$

Not available

35A

Electrolux/AYP 792129

Screw, Hex hd. thread forming, 5/16-18 x 1-1/4

$

$

Not available

36

Electrolux/AYP 780108

Washer, Thrust

$

$

Not available

37

Electrolux/AYP 780119

Bearing, Ball

$

$

Not available

38

Electrolux/AYP 780128

Washer, Thrust

$

$

Not available

39

Electrolux/AYP 780050

Bearing, Ball

$

$

Not available

40

Electrolux/AYP 792128

Washer, Flat

$

$

Not available

41

Electrolux/AYP 788077

"O" Ring

$

$

Not available

42

Electrolux/AYP 788042

Seal, Oil

$

$

Not available

43

Electrolux/AYP 780166

Washer, Cupped

$

$

Not available

44

Electrolux/AYP 786131

Cap, Bearing

$

$

Not available

45

Electrolux/AYP 780165

Washer, Flat

$

$

Not available

47

Electrolux/AYP 772098

Cover, Transaxle

$

$

Not available

48

Electrolux/AYP 784342

Rod & Fork Assy., Shift

$

$

Not available

49

Electrolux/AYP 776274

Shaft, Input

$

$

Not available

50

Electrolux/AYP 776313

Shaft, Brake (4 Keyed)

$

$

Not available

51

Electrolux/AYP 790007

Plate, Brake pad

$

$

Not available

52

Electrolux/AYP 790006

Pad, Brake

$

$

Not available

53

Electrolux/AYP 786026

Pin, Dowel

$

$

Not available

54

Electrolux/AYP 792075

Locknut, 5/16-24

$

$

Not available

55

Electrolux/AYP 792076

Washer, Flat

$

$

Not available

56

Electrolux/AYP 790047

Lever, Brake

$

$

Not available

57

Electrolux/AYP 792073

Screw, Flanged hex hd. thread-forming, 1/4-20 x 1-1/4

$

$

Not available

57A

Electrolux/AYP 792085

Screw, Flanged hex hd. thread-forming, 1/4-20 x 2-1/4

$

$

Not available

58

Electrolux/AYP 790025

Holder, Brake pad

$

$

Not available

59

Electrolux/AYP 778197

Pinion, Differential bevel

$

$

Not available

59A

Electrolux/AYP 778198

Gear, Bevel

$

$

Not available

60

Electrolux/AYP 786019

Pin, Drive

$

$

Not available

61

Electrolux/AYP 786027

Block, Drive

$

$

Not available

62

Electrolux/AYP 774833

Carrier, Differential (Threaded holes)

$

$

Not available

62A

Electrolux/AYP 774834

Carrier, Differential

$

$

Not available

63

Electrolux/AYP 778248

Gear, Ring (31 teeth)

$

$

Not available

64

Electrolux/AYP 780107

Washer

$

$

Not available

65

Electrolux/AYP 780042

Washer, Thrust

$

$

Not available

66

Electrolux/AYP 792018

Ring, Snap

$

$

Not available

67

Electrolux/AYP 792020

Screw, Hex hd., 1/4-20 x 2-1/4

$

$

Not available

68

Electrolux/AYP 792006

Lockwasher, 1/4"

$

$

Not available

69

Electrolux/AYP 774832

Axle (12-5/16" long)

$

$

Not available

70

Electrolux/AYP 774831

Axle (16-3/16" long)

$

$

Not available

71

Electrolux/AYP 792074

Plug, Hex hd., 9/16-18 thread

$

$

Not available

72

Electrolux/AYP 786067

Spacer

$

$

Not available

73

Electrolux/AYP 786086

Bracket, Brake lever

$

$

Not available

76

Electrolux/AYP 780153

Washer

$

$

Not available

77

Electrolux/AYP 786144

Sleeve (stepped)

$

$

Not available

78

Electrolux/AYP 780150

Bearing, Needle

$

$

Not available

79

Electrolux/AYP 780152

Bearing, Needle (capped)

$

$

Not available

80

Electrolux/AYP 792001

"O" Ring

$

$

Not available

81

Electrolux/AYP 786142

Sleeve (stepped)

$

$

Not available

82

Electrolux/AYP 788071

Ring, Square cut

$

$

Not available

83

Electrolux/AYP 780049

Bearing, Needle (capped)

$

$

Not available

84

Electrolux/AYP 786143

Sleeve (stepped)

$

$

Not available

85

Electrolux/AYP 780151

Bearing, Needle (capped)

$

$

Not available

86

Electrolux/AYP 786145

Sleeve (stepped)

$

$

Not available

87

Electrolux/AYP 788070

Ring, Square cut

$

$

Not available

88

Electrolux/AYP 780031

Bearing, Needle

$

$

Not available
