PP 1844 - Poulan Lawn Tractor (1991) POWER AND MECHANICAL CONTROLS GROUP Parts Diagram

Lawn Tractor

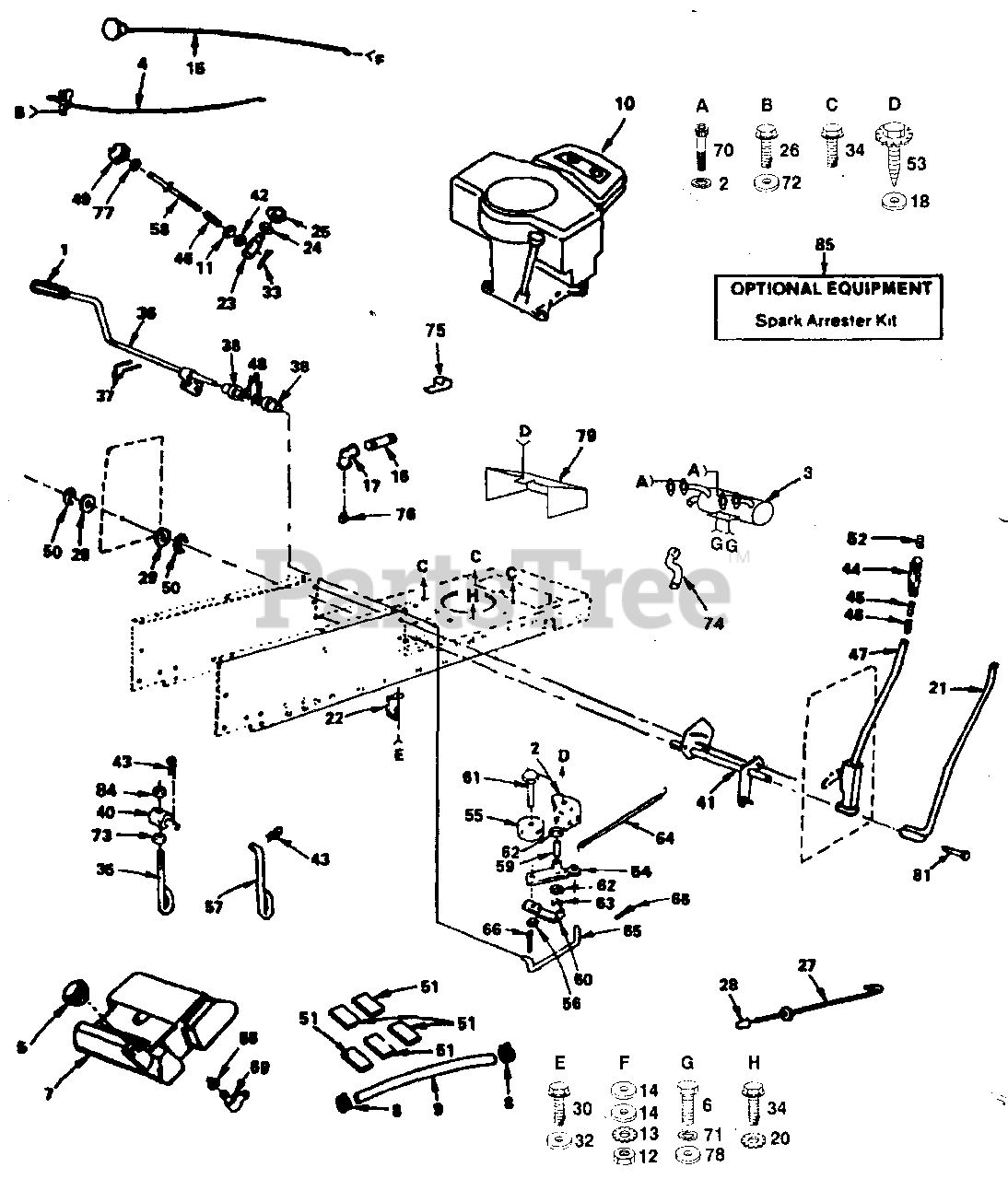

POWER AND MECHANICAL CONTROLS GROUP Parts Diagram

  • Title

1

Electrolux/AYP 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 810040500

Washer, Lock, Heavy Helical Spring

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532125890

Muffler

$

$

Not available

4

Electrolux/AYP 532122927

Control, Throttle
(Superseded to 532132748)

$

$

Not available

5

Electrolux/AYP 532123549

Cap, Fuel
(Superseded to 532158990)

$26.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 874760410

Bolt, Fin. Hex 1/4-20 x 5/8

$

$

Not available

7

Electrolux/AYP 532106020

Tank, Fuel

$

$

Not available

8

Electrolux/AYP 532123487

Clamp, Hose

$7.49

$

In Stock, only 4 left!

0

9

Electrolux/AYP 532008542

Line, Fuel

$

$

Not available

10

Electrolux/AYP 532124191

Engine, Kohler

$

$

Not available

11

Electrolux/AYP 819131016

Washer 13/32 x 5/8 x 16 Gauge

$6.49

$

In Stock, Qty 5

0

12

Electrolux/AYP 873610600

Nut, Hex 3/8-24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 811050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Gauge

$4.99

$

In Stock, Qty 5

0

15

Electrolux/AYP 532124049

Control, Choke

$

$

Not available

16

Electrolux/AYP 813280336

Pipe Nipple, Standard

$

$

Not available

17

Electrolux/AYP 813200300

90ø Elbow 3/8 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

18

Electrolux/AYP 819060916

Washer

$

$

Not available

20

Electrolux/AYP 811050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532121006

Rod Assembly, Lever

$34.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532123788

Retainer, Belt, Chassis, Center

$2.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532110810

Trunnion, Stop, Depth

$

$

Not available

24

Electrolux/AYP 819151216

Washer 15/32 x 3/4 x 16 Gauge
(Superseded to 19151216)

$

$

Not available

25

Electrolux/AYP 812000037

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 817080408

Screw, Hex Wsh. Hd., Thd. Cut. 1/4-20 x 1/2

$2.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532125637

Rod, Brake, Park
(Superseded to 532133261)

$

$

Not available

28

Electrolux/AYP 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 819292016

Washer 29/32 x 1-1/4 x 16 Gauge

$7.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 817490612

Screw, Hex Wsh. Thd., Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

32

Electrolux/AYP 819131316

Washer 13/32 x 1-3/16 x 16 Gauge

$4.99

$

In Stock, Qty 5

0

33

Electrolux/AYP 876020308

Pin, Cotter 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

34

Electrolux/AYP 817490624

Screw, Hex Washer Head, Threaded, Rolling 3/8-16 x 1-1/2 Type TT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532110448

Lift, Link, Adjustable

$7.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532122424

Shaft, Pedal, Foot

$

$

Not available

37

Electrolux/AYP 532124963

Roll Pin 3/16 x 1
(Superseded to 532002882)

$

$

Not available

38

Electrolux/AYP 532120183

Bearing, Nylon

$6.99

$

In Stock, only 4 left!

0

40

Electrolux/AYP 532110447

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

41

Electrolux/AYP 532121000

Shaft Assembly, Lift
(Superseded to 121000X)

$48.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532110807

Nut, Hex, Special

$

$

Not available

43

Electrolux/AYP 532124670

Retainer, Spring
(Superseded to 532085902)

$

$

Not available

44

Electrolux/AYP 532109413

Grip, Handle
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 532122364

Plunger, Lever Lift
(Superseded to 532125925)

$

$

Not available

46

Electrolux/AYP 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532121002

Lever Assembly, Hand Kit
(Superseded to 532123096)

Note: (Includes Key #21)

$

$

Not available

48

Electrolux/AYP 819211616

Washer 21/32 x 1 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532121891

Handle, Adjust, Lift
(Superseded to 121891X)

$

$

Not available

50

Electrolux/AYP 812000022

E-Ring

$4.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 532106082

Pad, Spacer

$

$

Not available

52

Electrolux/AYP 532122365

Button, Plunger
(Superseded to 532125925)

$

$

Not available

53

Electrolux/AYP 817030808

Screw, Spiderlock Hex Head #8-1/2 AB
(Superseded to 817030814)

$

$

Not available

54

Electrolux/AYP 532123789

Arm Assembly, Idler

$

$

Not available

55

Electrolux/AYP 532123766

Pulley, Idler
(Superseded to 532127783)

$37.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

57

Electrolux/AYP 532110029

Link, Lift

$

$

Not available

58

Electrolux/AYP 532110729

Rod, Adjust, Lift

$

$

Not available

59

Electrolux/AYP 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 874760624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532110812

Washer, Hardened
(Superseded to 110812X)

$

$

Not available

63

Electrolux/AYP 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

64

Electrolux/AYP 532105709

Spring, Return, Clutch

$11.99

$

In Stock, only 4 left!

0

65

Electrolux/AYP 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

68

Electrolux/AYP 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532124951

Stem, Tank, Fuel
(Superseded to 532008710)

$

$

Not available

70

Electrolux/AYP 874570512

Screw, Hex Socket Head 5/16-16 x 12 Gauge

$3.99

$

In Stock, only 4 left!

0

71

Electrolux/AYP 810040400

Washer, Lock, Heavy Helical Spring 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

72

Electrolux/AYP 532110457

Washer 9/32 x 5/8 x 16 Gauge
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 873360700

Nut, Hex, Jam 7/16-20

$5.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 532128144

Tube, Exhaust

$

$

Not available

75

Electrolux/AYP 532122758

Clamp, Muffler

$

$

Not available

77

Electrolux/AYP 873350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

78

Electrolux/AYP 819091216

Washer 9/32 x 3/4 x 16 Gauge
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

79

Electrolux/AYP 532125891

Heat Shield

$

$

Not available

81

Electrolux/AYP 874780624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 873710700

Nut, Crownlock 7/16-20
(Superseded to 73710700)

$2.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 532121851

Spark Arrester Kit

$

$

Not available
