PP 1844 K - Poulan Pro Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

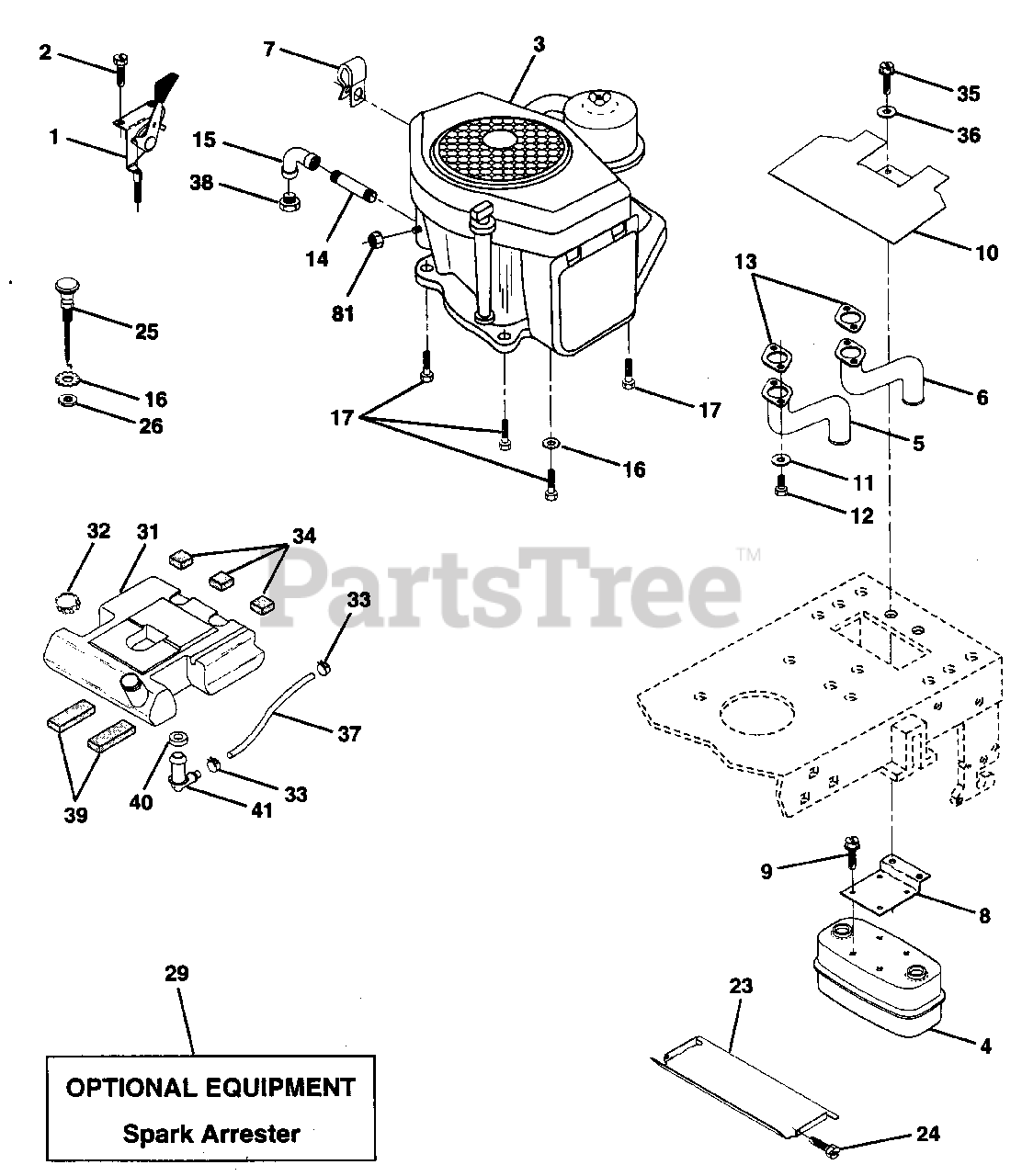

ENGINE Parts Diagram

  • Title

1

Poulan 532132747

Control Throt RH Blk Flg 41 60 (AYP part number)
(Superseded to 532132748)

$

$

Not available

2

Poulan 817720410

Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number)
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

4

Poulan 532137978

Muffler VGT YT Dual Inlet (AYP part number)
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

5

Poulan 532146699

Pipe Exhaust CV18/20 LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

6

Poulan 532146700

Pipe Exhaust CV18/20 RH
(Superseded to 583954801)

$20.99

$

In Stock, only 2 left!

0

7

Poulan 532124996

Clip, Fuel Line (AYP part number)
(Superseded to 532002751)

$

$

Not available

8

Poulan 532122439

Bracket Muffler Mounting (AYP part number)

$

$

Not available

9

Poulan 817190408

Screw Hex Wsh Thd Cut 1/4-20 (AYP part number)
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

10

Poulan 532146629

Shield Heat Muffler CV18/20 (AYP part number)
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

11

Poulan 810040500

Washer Lock Hvy Hlcl 1/4 (Order from Engine Manufacturer) (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 874570512

Bolt, Fin Hex 1/4-20 x 3/4 (Order from Engine Manufacturer) (AYP part number)

$3.99

$

In Stock, only 4 left!

0

14

Poulan 813280336

Nipple Pipe 3/8 Npt X 4-1/2" (AYP part number)

$

$

Not available

15

Poulan 813200300

Elbow Std 90 Degree 3/8-18 Npt (AYP part number)
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Poulan 811050600

Washer Lock Ext Tooth 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Poulan 817490624

Screw Thdrol 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

23

Poulan 532128953

Shield Heat Browning LT/YT (AYP part number)

$

$

Not available

24

Poulan 817021008

Screw Tap Hex #10-24unc X 1/2 (AYP part number)

$4.99

$

In Stock, Qty 14

0

25

Poulan 532132782

Choke Control (AYP part number)
(Superseded to 532132781)

$

$

Not available

26

Poulan 873610600

Nut, Fin Hex 3/8-24 Unf (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 532137180

Kit Spark Arrestor (Flat Scrn) (AYP part number)

$182.99

$

In Stock, only 1 left!

0

31

Poulan 532141069

Tank Fuel 3 50 Rear (AYP part number)
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

32

Poulan 532140527

Cap Asm Fuel W/sym Vented (AYP part number)
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Poulan 532123487

Clamp Hose Blk (AYP part number)

$7.49

$

In Stock, only 1 left!

0

34

Poulan 532106082

Pad, Spacer (AYP part number)

$

$

Not available

35

Poulan 817490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

36

Poulan 819132012

Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

37

Poulan 532008543

Line Fuel 54" (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

39

Poulan 532109227

Pad, Idler (AYP part number)

$4.99

$

In Stock, Qty 20+

0

40

Poulan 532124952

Bushing (AYP part number)
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 532139277

Stem Tank Fuel (AYP part number)

$8.99

$

In Stock, Qty 7

0

81

Poulan 873510400

Nut Keps Hex 1/4-20 Unc (AYP part number)
(Superseded to 873640400)

$

$

Not available
