PP 16H46 B - Poulan Pro Lawn Tractor Transaxle - Peerless (205-026B) Parts Diagram

Lawn Tractor

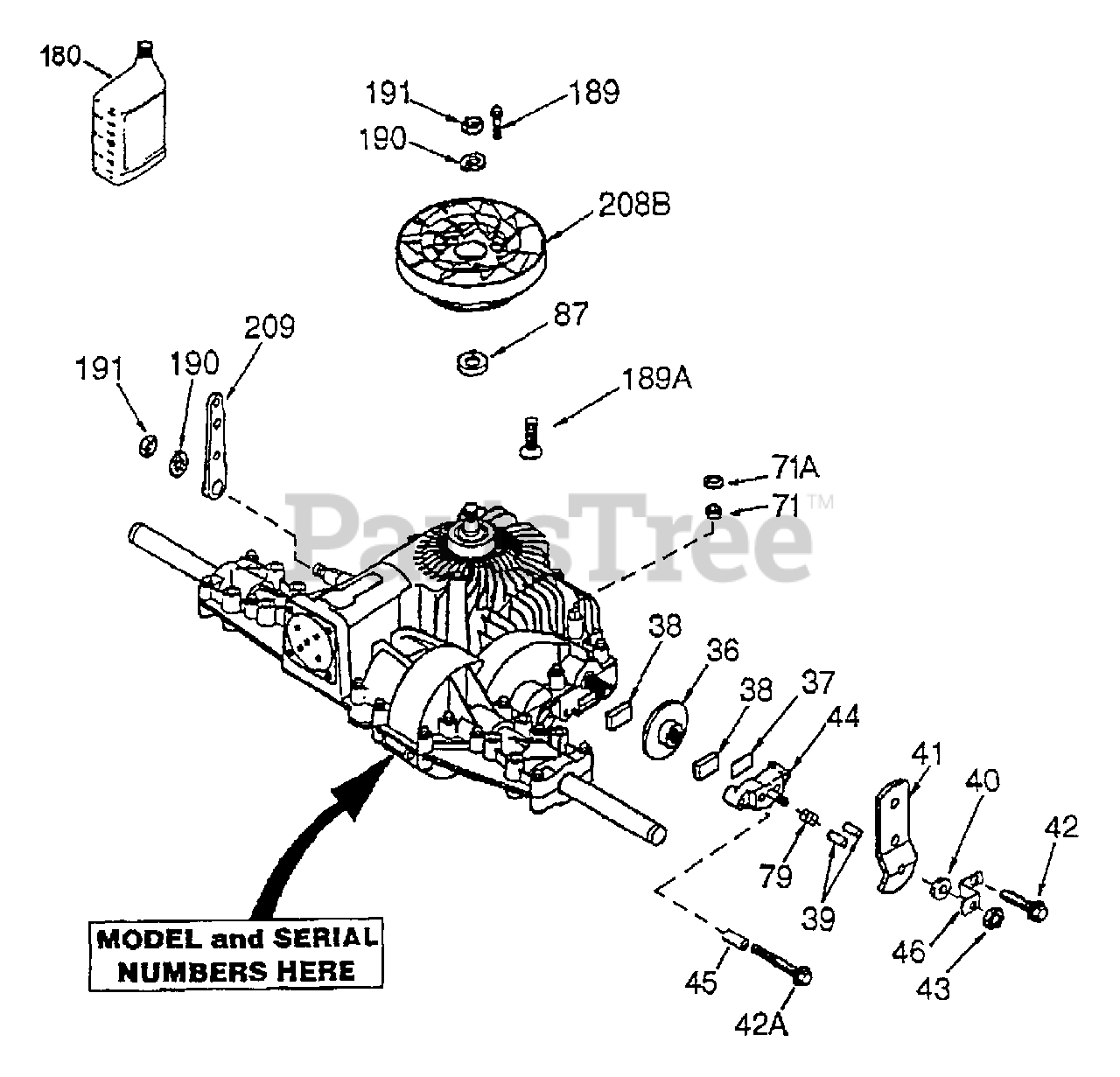

Transaxle - Peerless (205-026B) Parts Diagram

  • Title

36

Poulan 790075

Brake Disc (Peerless part number)

$

$

Not available

37

Poulan 790007

Brake Pad Plate (Peerless part number)

$

$

Not available

38

Poulan 799021

Brake Pad (Peerless part number) (AYP part number)

Note: Pkg of 2

$

$

Not available

39

Poulan 786026

Dowel Pin (Peerless part number)

$

$

Not available

40

Poulan 792076A

Flat Washer (Peerless part number)

$

$

Not available

41

Poulan 790085

Brake Lever (Peerless part number)

$

$

Not available

42

Poulan 792073

Screw, 1/4-20 x 1-1/4" (Peerless part number)

$

$

Not available

42A

Poulan 7920854

Screw, 1/4-20 x 2-1/4" (Peerless part number)

$

$

Not available

43

Poulan 792075

Locknut, 5/16-24 (Peerless part number)

$

$

Not available

44

Poulan 790025

Brake Pad Holder (Peerless part number)

$

$

Not available

45

Poulan 786066

Spacer (Peerless part number)

$

$

Not available

46

Poulan 790086

Brake Lever Bracket (Peerless part number)

$

$

Not available

71

Poulan 788069

Square Cut Ring (Peerless part number)

$

$

Not available

71A

Poulan 792162

Pushnut, 9/16" (Peerless part number)

$

$

Not available

79

Poulan 792144

Spring (Peerless part number)

$

$

Not available

87

Poulan 788035

Oil Seal, 5/8" (Peerless part number)

$

$

Not available

180

Poulan 730229A

Gear Oil 80W90 (AYP part number)

$

$

Not available

189

Poulan 792168

Drive Screw #6 x 1/2" (Peerless part number)

$

$

Not available

189A

Poulan 792169

Screw, 10-32 x 1/2" (Peerless part number)

$

$

Not available

190

Poulan 792150

Lockwasher (Peerless part number)

$

$

Not available

191

Poulan 792151

Nut, 7/16-20 (Peerless part number)

$

$

Not available

208B

Poulan 798025

Fan/Coupling (Peerless part number)

Note: Incl. 189 & 189A

$

$

Not available

209

Poulan 798024

Control Lever (Peerless part number)

$

$

Not available
