PP 16H46 B - Poulan Pro Lawn Tractor Mower Deck Parts Diagram

Lawn Tractor

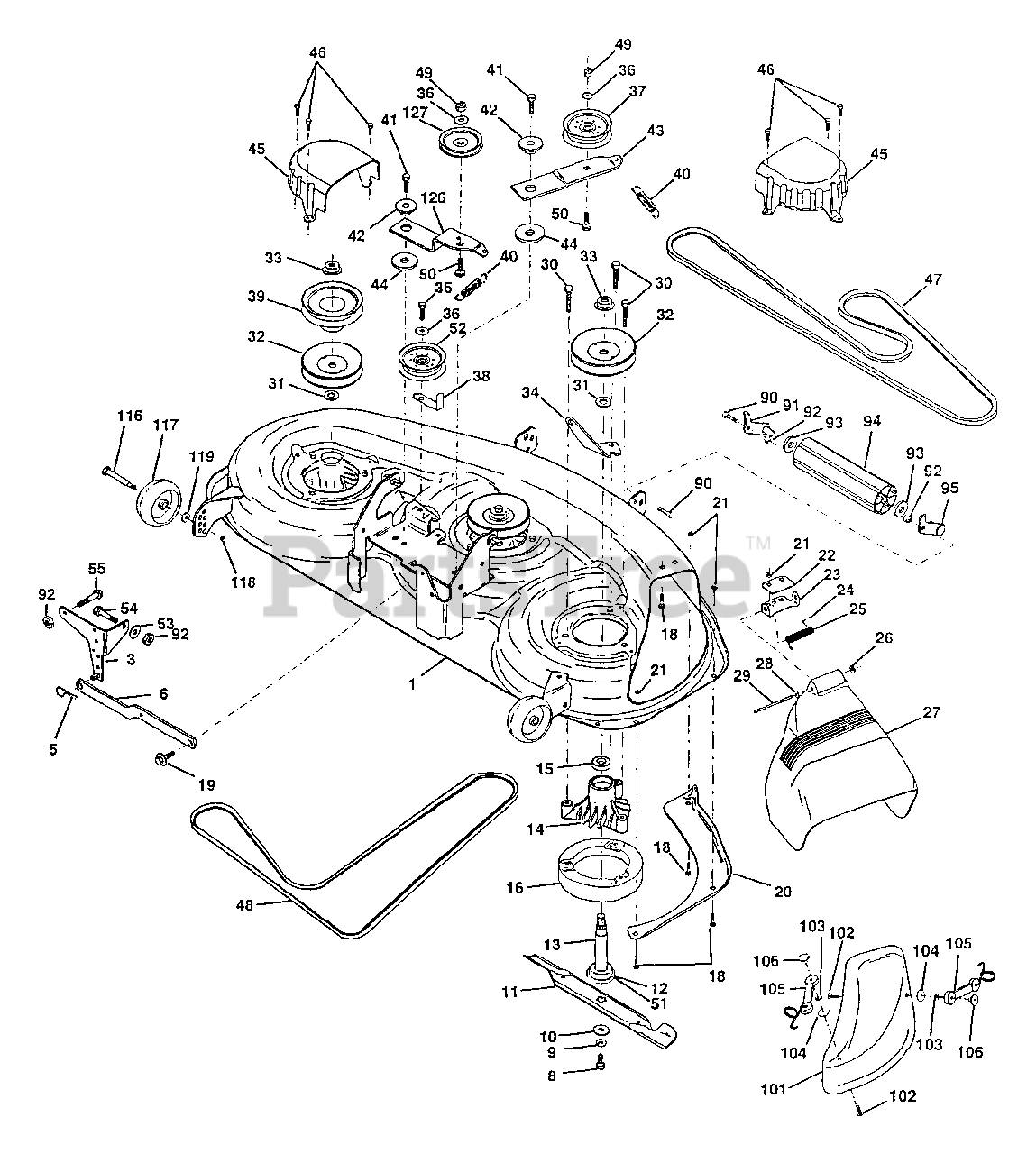

Mower Deck Parts Diagram

  • Title

1

Poulan 156948

Deck Asm., Mower 46"
(Superseded to 532176026)

$

$

Not available

3

Poulan 138457

Bracket Asm., Sway Bar

$11.99

$

Usually ships in 3-10 days

0

5

Poulan 4939M

Retainer Spring (AYP part number)

$

$

Not available

6

Poulan 130832

Arm, Suspension, Rear (Sway Bar) (AYP part number)

$

$

Not available

8

Poulan 850857

Bolt, Patched 3/8-24 x 1-1/4 Gr. 8
(Superseded to 532850857)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 10030600

Washer, Lock Hvy., Unplated 3/8 (AYP part number)

$

$

Not available

10

Poulan 140296

Washer, Hard Blade, Mower Vented
(Superseded to 532140296)

$6.99

$

In Stock, only 1 left!

0

11

Poulan 152443

Blade, 46" Mower Deck
(Superseded to 532152443)

$20.99

$

In Stock, only 3 left!

0

12

Poulan 129895

Bearing, Bail, Mandrel #6204
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Poulan 137553

Shaft Asm. w/Lower Bearing
(Superseded to 532137553)

Note: Includes Key No. 12

$37.99

$

In Stock, only 1 left!

0

14

Poulan 137152

Housing, Mandrel
(Superseded to 532137152)

$40.99

$

In Stock, only 1 left!

0

15

Poulan 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 6

0

16

Poulan 140329

Stripper, Mower Round (AYP part number)
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Poulan 72140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 132827

Bolt, Hex Head, Shoulder 5/16-18
(Superseded to 532132827)

$

$

Not available

20

Poulan 145055

Baffle, Vortex Mower 46"
(Superseded to 532145055)

$9.99

$

Usually ships in 3-10 days

0

21

Poulan 73680500

Nut, Crownlock 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 134753

Stiffener, Bracket (AYP part number)
(Superseded to 532177563)

$

$

Not available

23

Poulan 131267

Bracket, Deflector (AYP part number)
(Superseded to 532177563)

$

$

Not available

24

Poulan 105304X

Cap, Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Poulan 123713X

Spring, Torsion, Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

26

Poulan 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 157788

Shield, Deflector Mower
(Superseded to 532166883)

$

$

Not available

28

Poulan 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

29

Poulan 131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Poulan 138776

Screw, Hex Head, Thdroll (AYP part number)
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Poulan 129963

Washer, Spacer Mower Vented (AYP part number)
(Superseded to 532187690)

$4.99

$

In Stock, only 2 left!

0

32

Poulan 153531

Pulley, Mandrel (AYP part number)
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Poulan 137266

Nut, Flg. Top Lock Cntr. 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Poulan 144945

Anchor, Spring Deck 46"
(Superseded to 532144945)

$

$

Not available

35

Poulan 17490628

Screw, Thdroll 3/8-16 x 1-3/4 Tytt
(Superseded to 817490628)

$3.49

$

Usually ships in 3-10 days

0

36

Poulan 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Poulan 131494

Pulley, Idler, Flat (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

38

Poulan 156086

Keeper, Belt, Idler
(Superseded to 532156086)

$8.99

$

In Stock, Qty 6

0

39

Poulan 144917

Pulley, Idler, Driven
(Superseded to 532144917)

$31.99

$

In Stock, only 1 left!

0

40

Poulan 137273

Spring, Secondary 44/46/50 Vent
(Superseded to 532137273)

$7.99

$

In Stock, Qty 5

0

41

Poulan 17490620

Screw, Thdroll 3/8-16 x 1-1/4 Tytt
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

42

Poulan 122052X

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

43

Poulan 144949

Arm, Idler Secondary
(Superseded to 532144949)

$

$

Not available

44

Poulan 133943

Washer, Hardened (AYP part number)
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

45

Poulan 145059

Cover, Mandrel Deck
(Superseded to 532145059)

$

$

Not available

46

Poulan 137729

Screw, Thdroll. 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

47

Poulan 144959

V-Belt, Mower, Secondary
(Superseded to 532144959)

$43.99

$

In Stock, Qty 20+

0

48

Poulan 139573

V-Belt, Mower, Primary
(Superseded to 532139573)

$51.99

$

In Stock, only 1 left!

0

49

Poulan 73680600

Nut, Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 72110612

Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 153390

Washer, Felt
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

52

Poulan 156493

Pulley Idler 46 Pri. Drive (AYP part number)
(Superseded to 532173901)

$

$

Not available

53

Poulan 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

54

Poulan 74780616

Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 72140608

Bolt Rdhd Sqnk 3/8-16 unc x 1 (AYP part number)

$

$

Not available

90

Poulan 74760616

Bolt, Fin, Hex 3/8-16 UNC x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

91

Poulan 132274

Bracket, Asm Noseroller, LH (AYP part number)
(Superseded to 532175746)

$9.49

$

In Stock, Qty 6

0

92

Poulan 73800600

Nut, Lock, Hex w/Ins 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Poulan 19171416

Washer 17/32 x 7/8 x 16 Ga.
(Superseded to 819171416)

$4.99

$

In Stock, Qty 8

0

94

Poulan 132264

Roller, Nose 38 & 42 (AYP part number)

$

$

Not available

95

Poulan 132273

Bracket, asm Noseroller RH (AYP part number)
(Superseded to 532175747)

$10.99

$

Usually ships in 3-10 days

0

101

Poulan 145579

Cover, Mulching
(Superseded to 532145579)

$

$

Not available

102

Poulan 71161010

Screw (AYP part number)
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

103

Poulan 10071000

Washer, Lock #10
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

104

Poulan 19061216

Washer
(Superseded to 819061216)

$4.99

$

In Stock, only 1 left!

0

105

Poulan 130758

Latch Asm. Bagger
(Superseded to 532160793)

$

$

Not available

106

Poulan 2029J

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

116

Poulan 146851

Bolt, Shoulder

$

$

Not available

117

Poulan 146850

Gauge Wheel

$

$

Not available

118

Poulan 73930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Poulan 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

126

Poulan 144948

Arm, Idler, Primary Deck 46"
(Superseded to 532144948)

$

$

Not available

127

Poulan 146763

Pulley, Idler, V-Groove Dim. 4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

Poulan 143651

Mandrel Assembly
(Superseded to 532143651)

Note: Includes Key Nos. 8-10, 12-15, 31 and 33.

$102.99

$

In Stock, only 4 left!

0

Poulan 158851

Mower Serv 46" (AYP part number)
(Superseded to 532166222)

Note: Standard Deck Order nose roller, guage wheels, and mulching plate components separately Key Nos. 90-95, 116-118, 101-106.

$971.99

$

Usually ships in 3-10 days

0
