PP 16H46 B - Poulan Pro Lawn Tractor Engine Parts Diagram

Lawn Tractor

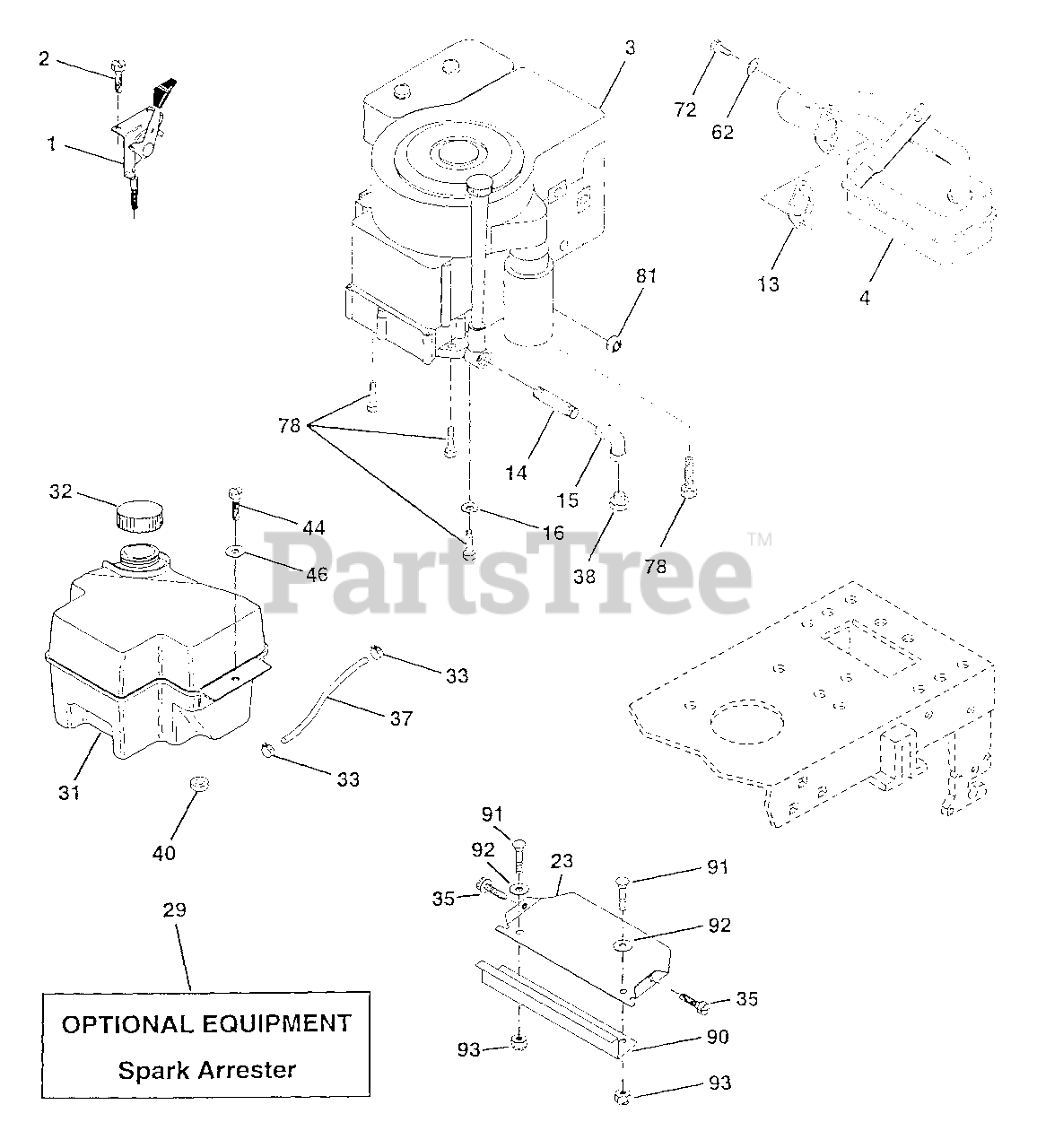

Engine Parts Diagram

  • Title

1

Poulan 140310

Control Th/ch 23 5 LH Flag (AYP part number)
(Superseded to 532170551)

$37.99

$

Usually ships in 3-10 days

0

2

Poulan 17720410

Screw Hex Thd Cut 1/4-20 x 5/8 T

$2.99

$

Usually ships in 3-10 days

0

3

Engine B&S

Note: Model No. 280777

$

$

Not available

4

Poulan 137352

Muffler LT B&S 14.5
(Superseded to 532137352)

$45.99

$

In Stock, only 3 left!

0

13

Poulan 272293

Gasket Eng 1 313 Id Tin Plated
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Poulan 13280324

Nipple Pipe 3/8 Npt X 3"

$

$

Not available

15

Poulan 13200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Poulan 11050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Poulan 156123

Shield Heat
(Superseded to 159880)

$

$

Not available

29

Poulan 137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532137180)

$182.99

$

In Stock, only 1 left!

0

31

Poulan 140280

Tank Fuel Front 2 00
(Superseded to 532180645)

$

$

Not available

32

Poulan 140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Poulan 123487X

Clamp Hose Black
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

35

Poulan 17490512

Screw
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

37

Poulan 137040

Line Fuel 20"
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

Plug Oil Drain

Note: Order From Engine Manufacturer

$

$

Not available

40

Poulan 124028X

Bushing Snap Nyl Blk Fuel Line (AYP part number)

$

$

Not available

44

Poulan 17490412

Screw Hexwsh Thdrol 1/4-20 x 3/4

$2.99

$

In Stock, only 1 left!

0

46

Poulan 19091416

Washer 9/32 X 7/8 X 16 Ga
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 17490616

Screw Thdrol 3/8-16 x 1
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

62

Poulan 10040500

Washer Lock Hvy Hlcl Spr 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

72

Poulan 71070512

Screw Hexhd Cap 5/16-18 x 3/4
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

78

Poulan 17490620

Screw Thdrol 3/8-16 x 1-1/4 TYTT
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

81

Poulan 128861

Nut Flange 1/4-20 Starter Nut
(Superseded to 539128861)

$31.99

$

Usually ships in 3-10 days

0

90

Poulan 159520

Guard Debris 97

$2.49

$

Usually ships in 3-10 days

0

91

Poulan 17000612

Bolt Blk Fin Hex 1/4-20 Unc x 1/2
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

92

Poulan 19091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

93

Poulan 123976X

Nut Lock 1/4 Lge Flg Fr. 5 Zinc (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0
