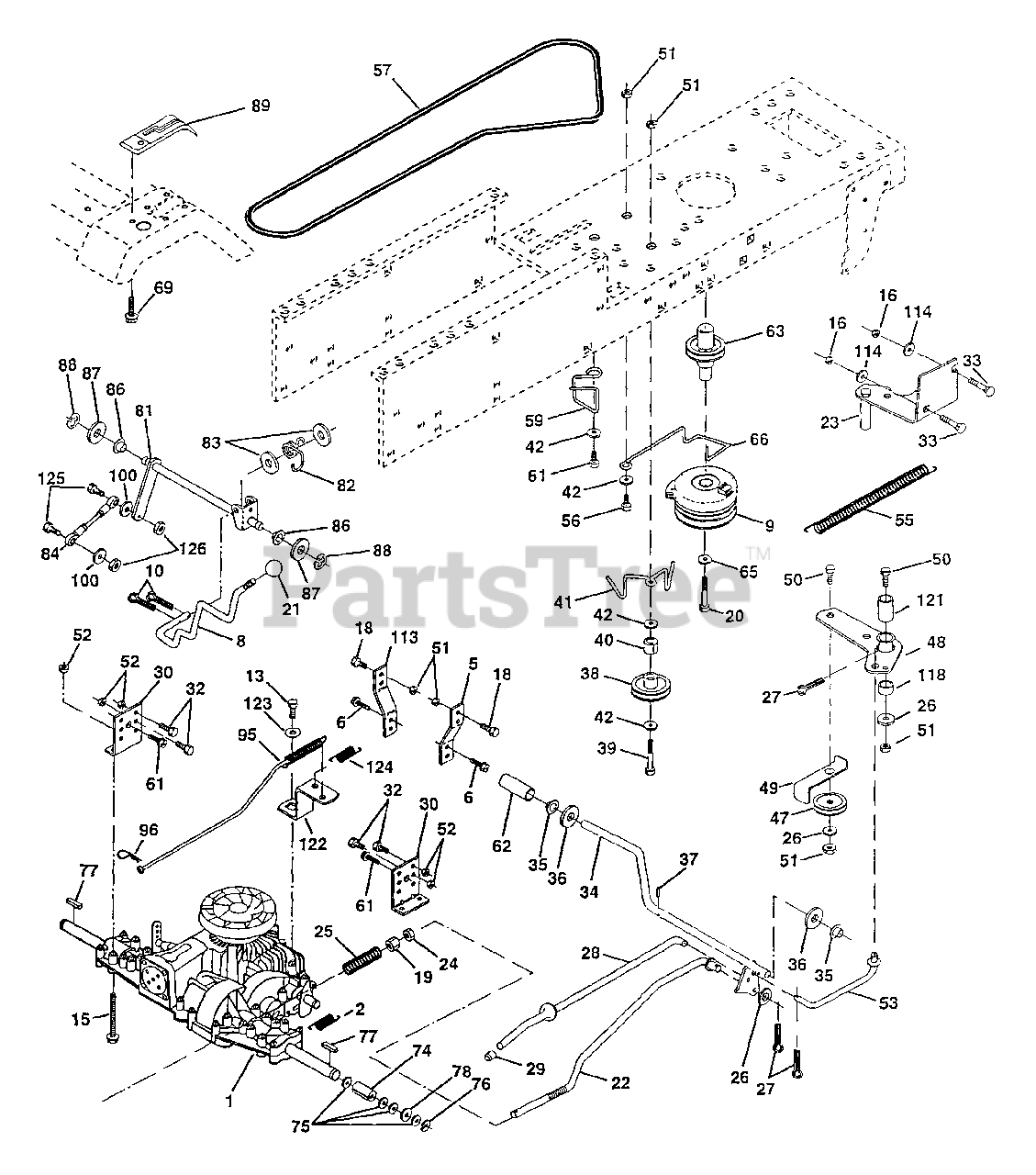

PP 16H46 B - Poulan Pro Lawn Tractor Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Transaxle

Note: See Peerless (Peerless 205-026B) illustration and parts list.

$

$

Not available

2

Poulan 146682

Spring, Return, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Poulan 143995

Pulley, Transaxle Hydro 750 LT
(Superseded to 532143995)

$34.99

$

Usually ships in 3-10 days

0

5

Poulan 121520X

Strap Torque R
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

6

Poulan 17490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 154792

Rod Shift Fender STLT
(Superseded to 532154792)

$12.99

$

Usually ships in 3-10 days

0

9

Poulan 145028

Clutch Electric
(Superseded to 532145028)

$

$

Not available

10

Poulan 76020416

Pin Cotter 1/8 x 1 CAD

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 74550412

Bolt 1/4-28 Unf Gr. 8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 74490544

Bolt Hex 5/16-18 Unc Flghd
(Superseded to 874490544)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 73800500

Nut Lock Hex W/Ins. 5/1 6-18 Unc P
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 74780616

Bolt Fin Hex 3/8-16 Unc x 1 Gr.5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 73800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 150280

Bolt, Hex 7/16-20 x 4-1/4 Ga. 5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Poulan 121274X

Knob, Duckhead 1/2-13 Unc Blk
(Superseded to 532121274)

$10.99

$

Usually ships in 3-10 days

0

22

Poulan 130804

Rod, Brake
(Superseded to 532130804)

$31.99

$

Usually ships in 3-10 days

0

23

Poulan 154978

Bracket Asm Mtg CL

$

$

Not available

24

Poulan 73350600

Nut Hex Jam 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 106888X

Spring, Brake Rod
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Poulan 59131316

Washer (AYP part number)

$

$

Not available

27

Poulan 76020412

Pin Cotter 1/8 x 3/4 CAD.
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 145204

Rod, Parking Brake

$

$

Not available

29

Poulan 71673

Cap,Parking Brake
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Poulan 130807

Bracket, Transaxle
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 74760512

Bolt Hex Hd 5/16-18 Unc x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 72140506

Bolt Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Poulan 155071

Shaft, Foot Pedal
(Superseded to 532155071)

$

$

Not available

35

Poulan 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

36

Poulan 19211616

Washer
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 1572H

Pin, Roll (AYP part number)

$

$

Not available

38

Poulan 123674X

Pulley, Idler, Flat
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

39

Poulan 74760644

Bolt
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 4470J

Spacer Split
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 154777

Keeper, Belt Idler
(Superseded to 532165838)

$

$

Not available

42

Poulan 19131312

Washer 13/32 x 13/16 x 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

47

Poulan 127783

Pulley, Idler, V-Groove Plastic (AYP part number)

$

$

Not available

48

Poulan 154604

Bellcrank Assembly
(Superseded to 532154604)

$

$

Not available

49

Poulan 123205X

Retainer, Belt Style Spring
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 74760624

Bolt (AYP part number)

$

$

Not available

51

Poulan 73680600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 73680500

Nut Crown Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Poulan 105710X

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Poulan 105709X

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

In Stock, Qty 6

0

56

Poulan 74760620

Bolt, Fin Hex 3/8-16 UNC x 1 1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Poulan 156971

V-Belt, Ground Drive
(Superseded to 584448801)

$

$

Not available

59

Poulan 532140312

Keeper, Center Span (AYP part number)
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Poulan 17490612

Screw Thdrol. 3/8-16 x 3/4 Ty. TT
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

62

Poulan 8883R

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Poulan 145868

Pulley Clutch Electric EVX
(Superseded to 532145868)

$100.99

$

Usually ships in 3-10 days

0

65

Poulan 10040700

Washer Lock Hvy HLCL Spr 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Poulan 154778

Keeper Belt Engine
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

69

UNKNOWN

$

$

Not available

74

Poulan 156972

Spacer, Axle
(Superseded to 532156972)

$6.99

$

Usually ships in 3-10 days

0

75

Poulan 121749X

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Poulan 12000001

E-Ring
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 123583X

Key, Square
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

78

Poulan 121748X

Washer 25/32 x 1-5/8 x 16 Ga
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

81

Poulan 156969

Shaft Asm. Cross
(Superseded to 532156969)

$14.99

$

Usually ships in 3-10 days

0

82

Poulan 123782X

Spring Torsion T/A
(Superseded to 532123782)

$4.99

$

Usually ships in 3-10 days

0

83

Poulan 19171216

Washer 17/32 x 3/4 x 16 Ga.

$2.99

$

Usually ships in 3-10 days

0

84

Poulan 156962

Rod, Tie PVST 20"

$

$

Not available

86

Poulan 71208

Bushing Rod Strig. 629/632 ID
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

87

Poulan 19212016

Washer 21/32 x 1-1/4 x 16 Ga.
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

88

Poulan 12000008

Ring Klip #5304-62
(Superseded to 812000008)

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 154882

Console, Hydro Shift STLT
(Superseded to 532164890)

$24.99

$

Usually ships in 3-10 days

0

90

Poulan 124346X

Nut Self Thd Wsh-hd 1/4 zinc
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

95

Poulan 156970

Rod Asm. Bypass Hydro

$

$

Not available

96

Poulan 4497H

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

100

Poulan 19111216

Washer 11/32 x 3/4 x 16 Ga.

$0.99

$

Usually ships in 3-10 days

0

113

Poulan 127285X

Strap Torque Lh
(Superseded to 532127285)

$

$

Not available

114

Poulan 19111214

Washer 11/32 x 3/4 x 14 Ga.

$

$

Not available

118

Poulan 154774

Spacer Bellcrank

$

$

Not available

121

Poulan 154419

Nyliner Clutching STL
(Superseded to 532154419)

$

$

Not available

122

Poulan 156963

Plate Bypass PVST

$2.49

$

Usually ships in 3-10 days

0

123

Poulan 19091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

124

UNKNOWN

$

$

Not available

125

Poulan 74780516

Bolt Fin Hex 5/16-18 Unc x 1.00
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

126

Poulan 1685H

Nut Lock 5/16-18 Nc Thd (AYP part number)

$

$

Not available
