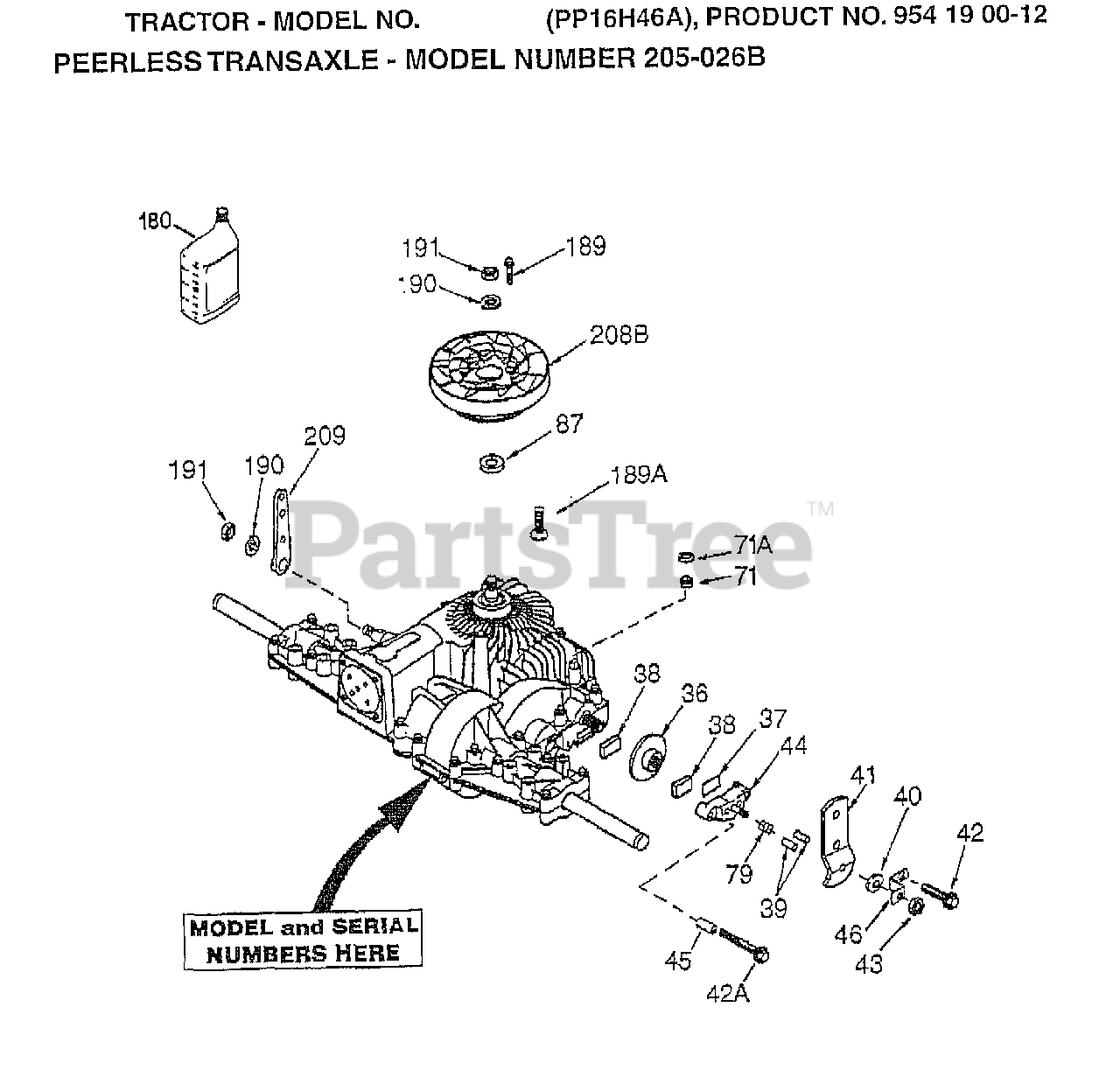

PP 16H46 A - Poulan Pro Lawn Tractor (1997) PEERLESS TRANSAXLE Parts Diagram

Lawn Tractor

PEERLESS TRANSAXLE Parts Diagram

  • Title

Electrolux/AYP 205-026B

TRANSAXLE, PEERLESS

$

$

Not available

36

$

$

Not available

37

Electrolux/AYP 790007

PLATE BRAKE PAD

$

$

Not available

38

$10.99

$

In Stock, only 1 left!

0

39

$

$

Not available

$

$

Not available

41

Electrolux/AYP 790085

BRAKE LEVER

$

$

Not available

42

Electrolux/AYP 792073

SCREW, 1/4-20 X 1-1/4

$

$

Not available

42A

Electrolux/AYP 792085A

SCREW, 1/4-20 X 2-1/4

$

$

Not available

43

Electrolux/AYP 792075

LOCKNUT 5/16-24

$

$

Not available

44

Electrolux/AYP 790025

HOLDER BRAKE PAD

$

$

Not available

$

$

Not available

46

Electrolux/AYP 790086

BRAKE LEVER BRACKET

$

$

Not available

71

Electrolux/AYP 788069

SEAL SQUARE CUT

$

$

Not available

71A

$

$

Not available

$

$

Not available

87

$

$

Not available

180

Electrolux/AYP 730229A

GEAR OIL 80W90

$

$

Not available

189

Electrolux/AYP 792168

DRIVE SCREW

$

$

Not available

$

$

Not available

190

$

$

Not available

$

$

Not available

208B

Electrolux/AYP 798025

FAN/COUPLING

$

$

Not available

209

Electrolux/AYP 798024

CONTROL LEVER

$

$

Not available
