PP 16H44 C - Poulan Pro Lawn Tractor MOWER Parts Diagram

Lawn Tractor

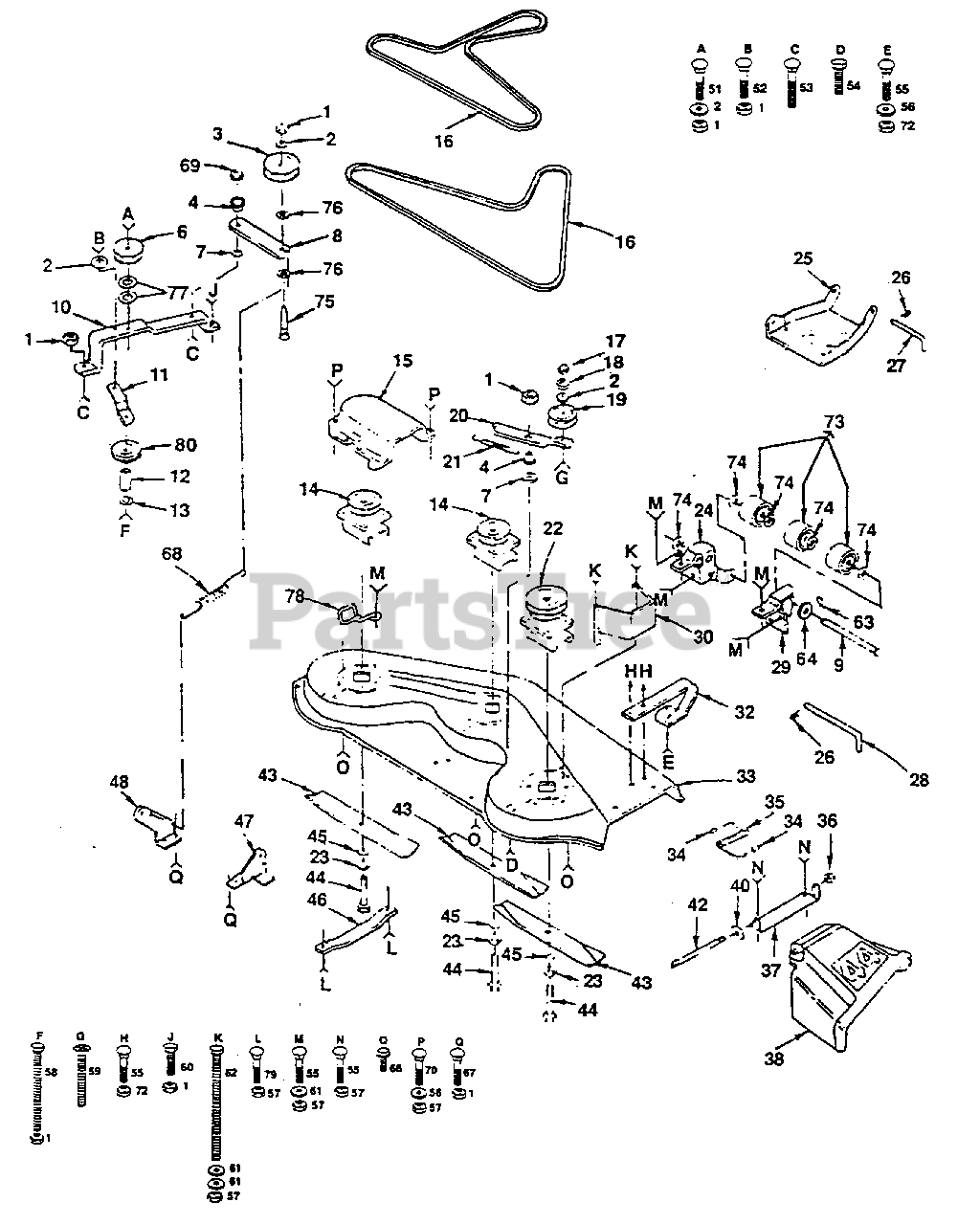

MOWER Parts Diagram

  • Title

1

Poulan 873680600

Locknut 3/8 x 16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

2

Poulan 819131614

Washer 13/32 x 1 x 14 Ga. (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 532121316

Pulley, Idler (AYP part number)

$51.99

$

In Stock, only 4 left!

0

4

Poulan 532106902

Spacer (AYP part number)

$2.99

$

In Stock, only 2 left!

0

6

Poulan 532124858

Pulley, Idler (AYP part number)

$

$

Not available

7

Poulan 532106513

Washer, Wear (AYP part number)

$6.99

$

In Stock, only 4 left!

0

8

Poulan 532121425

Arm, Idler (AYP part number)

$

$

Not available

9

Poulan 532109776

Pin, Pivot (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 532106523

Bar, Support, Idler (AYP part number)

$

$

Not available

11

Poulan 532106522

Brace, Idler, Deck (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

12

Poulan 532121236

Spacer (AYP part number)

$

$

Not available

13

Poulan 819131316

Washer 13/32 x 13/16 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

14

Poulan 532136818

Mandrel, Secondary (AYP part number)
(Superseded to 532136819)

$

$

Not available

15

Poulan 532106214

Guard (AYP part number)
(Superseded to 106214X)

$

$

Not available

16

Poulan 532106085

V-Belt (AYP part number)

$43.99

$

Usually ships in 3-10 days

0

17

Poulan 873220600

Nut, Hex 3/8 x 16 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

18

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

19

Poulan 532102932

Idler, Flat (AYP part number)

$30.99

$

Usually ships in 3-10 days

0

20

Poulan 532106526

Arm, Idler, Deck (AYP part number)

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 532124885

Spring, Extension (AYP part number)
(Superseded to 7644J)

$

$

Not available

22

Poulan 532121704

Mandrel, Primary (AYP part number)
(Superseded to 532121705)

$

$

Not available

23

Poulan 810030600

Washer, Lock, Hvy. Helical (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

24

Poulan 532109599

Bracket, Lift, LH (AYP part number)

$

$

Not available

25

Poulan 532105662

Link, Parallel (AYP part number)

$

$

Not available

26

Poulan 532124961

Retainer, Spring (AYP part number)
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

27

Poulan 532105744

Pin, Front, Hinge (AYP part number)

$

$

Not available

28

Poulan 532109835

Pin, Rear, Hinge (AYP part number)

$

$

Not available

29

Poulan 532109600

Bracket, Lift, RH (AYP part number)

$

$

Not available

30

Poulan 532108119

Guard, Belt, RH (AYP part number)

$

$

Not available

32

Poulan 532136321

Runner, RH (AYP part number)

$

$

Not available

33

Poulan 532121423

Housing, Mower (AYP part number)
(Superseded to 532144729)

$

$

Not available

34

Poulan 532105304

Cap, Sleeve (AYP part number)

$4.99

$

In Stock, Qty 20+

0

35

Poulan 532123713

Spring (AYP part number)

$7.99

$

In Stock, only 1 left!

0

36

Poulan 532110452

Nut, Push (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 532137607

Bracket, Deflector (AYP part number)

$6.49

$

In Stock, only 2 left!

0

38

Poulan 532109785

Guard, Discharge (AYP part number)

$30.99

$

Usually ships in 3-10 days

0

40

Poulan 819111016

Washer 11/32 x 5/8 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

42

Poulan 532106735

Rod, Hinge (AYP part number)

$10.99

$

In Stock, only 1 left!

0

43

Poulan 532106635

Blade (AYP part number)
(Superseded to 532025034)

$

$

Not available

44

Poulan 874610624

Bolt, Hex 3/8-24 x 1 1/2 Gr.5 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

45

Poulan 819132012

Washer 13/32 x 1 1/4 x 12 Ga. (AYP part number)

$1.99

$

Usually ships in 3-10 days

0

46

Poulan 532125074

Runner, LH (AYP part number)
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

47

Poulan 532123807

Bracket, Suspension, Rear, RH (AYP part number)

$

$

Not available

48

Poulan 532123808

Bracket, Suspension, Rear, LH (AYP part number)

$

$

Not available

51

Poulan 872140614

Bolt, Carriage 3/8-16 x 1-3/4 (AYP part number)
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

52

Poulan 872140608

Bolt, Carriage 3/8-16 x 1 (AYP part number)
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 872140612

Bolt, Carriage 3/8-16 x 1 1/2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

54

Poulan 874760620

Bolt, Hex 3/8-16 x 1-1/4 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

55

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

56

Poulan 819111116

Washer 11/32 x 11/16 x 16 Ga. (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

57

Poulan 873680500

Locknut 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Poulan 874760648

Bolt, Hex 3/8-16 x 3 (AYP part number)
(Superseded to 874780648)

$

$

Not available

59

Poulan 874110632

Screw, Flat Head 3/8-16 x 2 (AYP part number)

$

$

Not available

60

Poulan 874760616

Bolt, Fin. Hex 3/8-16 X 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

61

Poulan 819111216

Washer 11/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

62

Poulan 874760580

Bolt, Hex 5/16-18 x 5 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

63

Poulan 876020412

Pin, Cotter (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

64

Poulan 819151616

Washer, 15/32 X 1X 16 Ga. (AYP part number)
(Superseded to 734117801)

$

$

Not available

66

Poulan 817490612

Screw, Hex Washer Thread Rolling 3/8-16x3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

67

Poulan 872140606

Bolt, Carriage 3/8-16 x 3/4 (AYP part number)

$

$

Not available

68

Poulan 532102727

Spring, Extension (AYP part number)

$

$

Not available

69

Poulan 873930600

Nut.Centerlock 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 872110506

Bolt, Carriage 5/16-18 x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 20+

0

72

Poulan 532124949

Locknut 5/16-18 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

73

Poulan 532109729

Roller, Nose (AYP part number)
(Superseded to 109729X)

$

$

Not available

74

Poulan 819151610

Washer 15/32 x 1 x 10 Ga. (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

75

Poulan 872140620

Bolt, Carriage 3/8-16 x 2-1/2 (AYP part number)
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

76

Poulan 819131210

Washer 13/32 x 3/4 x 10 Ga. (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

77

Poulan 819131410

Washer 13/32 x 7/8 x 10 Ga. (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

78

Poulan 532121352

Keeper, L.H. Mandrel (AYP part number)

$

$

Not available

79

Poulan 872110505

Bolt, Carriage 5/16-18 x 5/8 (AYP part number)
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

80

Poulan 532102403

Idler, Pulley (AYP part number)

$39.99

$

In Stock, only 1 left!

0

Poulan 532121826

Deck, Mower Complete (AYP part number)
(Superseded to 532131508)

Note: Not Shown.

$

$

Not available
