PP 16H44 C - Poulan Lawn Tractor (1993) SEAT ASSEMBLY Parts Diagram

Lawn Tractor

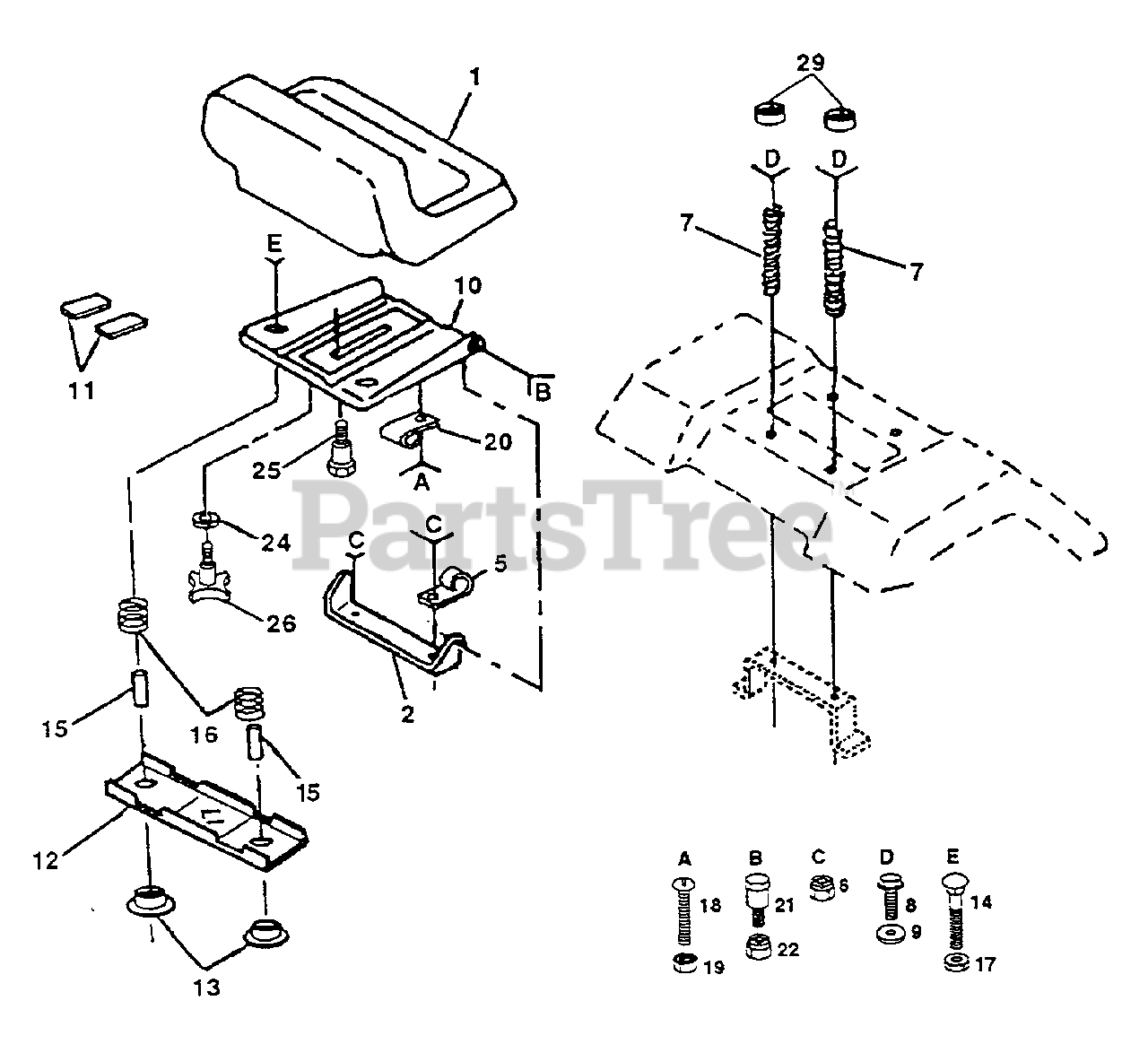

SEAT ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 532127440

Seat V-560 BLK/blk Std
(Superseded to 532140121)

$

$

Not available

2

Electrolux/AYP 532126656

Bracket Pivot Seat 8 720

$

$

Not available

5

Electrolux/AYP 532124996

Clip Line Fuel 13/32 Mtg Hole
(Superseded to 532002751)

$

$

Not available

6

Electrolux/AYP 873680600

Nut Crownlock 3/8-16 Unc
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 532124181

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 817490508

Screw Hwsh Thdrol 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 819131614

Washer 13/32 X 1 X 14 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532131451

Pan Seat
(Superseded to 532140552)

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532121251

Strip Foam Gray Or Black

$

$

Not available

12

Electrolux/AYP 532121246

Bracket Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 872050411

Bolt Rdhd Sht Nk 1/4-20x1-3/8

$

$

Not available

15

Electrolux/AYP 532121249

Spacer Split 28x 88 Yel Zinc

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 532123740

Spring Cprsn 1 310 Blk Pnt

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532123976

Nut Lock 1/4 Lge Flg Gr 5 Zinc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

18

Electrolux/AYP 874641008

Screw SLTD Pan Hd #10-32 X 1/2

$2.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 873951000

Nut Keps #10-32 Unf

$5.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532124967

Clip Insulated 11/32 Mtg Hole

$

$

Not available

21

Electrolux/AYP 532105529

Bolt Shoulder 5/16-18 Unc Blkz
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 873680500

Nut Crown Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 819171912

Washer 17/32 X 1-3/16 X 12 Ga

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 532127018

Bolt Shoulder 5/16-18 X 62

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532120068

Knob Seat 1/2-13unc Blk
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 532124238

Cap Spring Seat

$

$

Not available
