PP 16H44 B - Poulan Lawn Tractor (1992) DRIVE Parts Diagram

Lawn Tractor

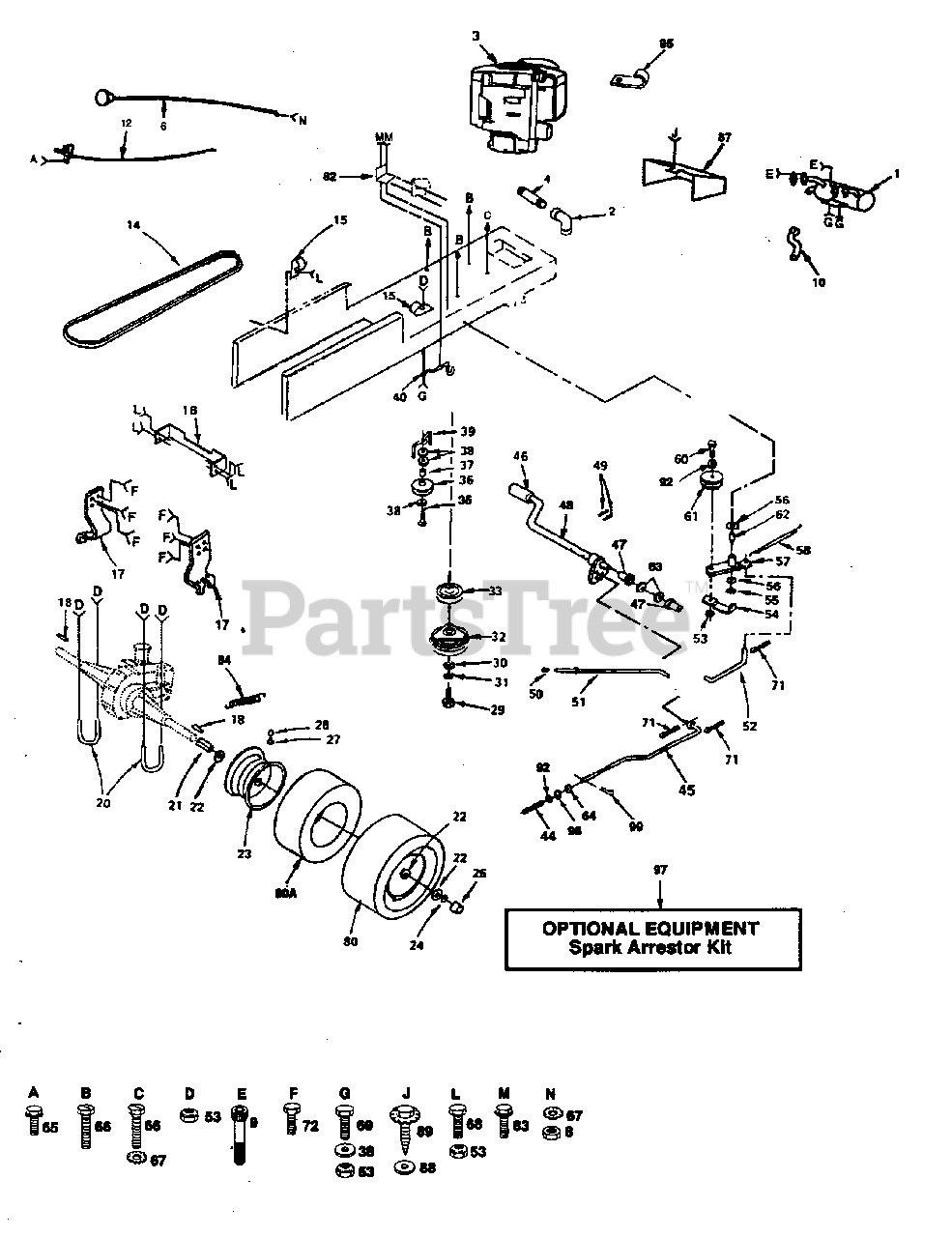

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 532125890

Muffler

$

$

Not available

2

Electrolux/AYP 813200300

Elbow, STD 90 3/8-18NPT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 813280336

Nipple, Pipe

$

$

Not available

6

Electrolux/AYP 532132781

Control, Choke

$

$

Not available

8

Electrolux/AYP 873610600

Nut, Fin Hex 3/8-24 UNF
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 874570512

Screw, Hex Socket 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

10

Electrolux/AYP 532128144

Tube Exhaust

$

$

Not available

12

Electrolux/AYP 532133024

Control, Throttle

$

$

Not available

14

Electrolux/AYP 532123461

V-Belt, Drive

$

$

Not available

15

Electrolux/AYP 532124996

Clip
(Superseded to 532002751)

$

$

Not available

16

Electrolux/AYP 532121187

Bracket, Mounting, Hydro T/A

$

$

Not available

17

Electrolux/AYP 532126649

Bracket, Transaxle

$

$

Not available

18

Electrolux/AYP 532123583

Key, Square 1/4 x 2

$4.99

$

In Stock, only 4 left!

0

20

Electrolux/AYP 532121189

U-Bolt, 3/8-16 x 2-3/4

$

$

Not available

21

Electrolux/AYP 532121199

Spacer, Split

$

$

Not available

22

Electrolux/AYP 532121748

Washer 1-1/32 x 1-5/8 x 16 Ga,

$4.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 532124723

Rim, Rear
(Superseded to 532106108)

$145.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 812000001

E-Ring

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532104757

Cap, Axle

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 532065139

Stem, Valve

$9.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

30

Electrolux/AYP 532126197

Washer 1-1/2 OD X 15/32 ID X .250

$8.99

$

In Stock, only 3 left!

0

31

Electrolux/AYP 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 532126112

Clutch, Electric
(Superseded to 532142600)

$

$

Not available

33

Electrolux/AYP 532109841

Pulley, Engine
(Superseded to 532136905)

$42.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 874760644

Bolt, Hex 3/8-16 x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532004859

Idler, Flat
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 532004470

Spacer
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

39

Electrolux/AYP 532109070

Keeper, Belt

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532129921

Keeper, Belt Engine Lh Lt

$

$

Not available

42

Electrolux/AYP 532105730

Belt, Keeper, Engine R.H.

$4.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532106888

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

45

Electrolux/AYP 532132654

Rod, Brake

$

$

Not available

46

Electrolux/AYP 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532120183

Bearing, Nylon

$6.99

$

In Stock, only 3 left!

0

48

Electrolux/AYP 532122424

Shaft, Foot Pedal, Asm.

$

$

Not available

49

Electrolux/AYP 532124963

Pin, Roll 3/16 x 1
(Superseded to 532002882)

$

$

Not available

50

Electrolux/AYP 532071673

Cap, Plunger

$5.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 532133261

Rod, Brake, Park

$

$

Not available

52

Electrolux/AYP 532105710

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 873680600

Locknut, 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 7

0

54

Electrolux/AYP 532123205

Retainer, Belt

$6.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 812000039

Klip Ring

$6.49

$

In Stock, Qty 7

0

56

Electrolux/AYP 532110812

Washer, Hardened
(Superseded to 110812X)

$

$

Not available

57

Electrolux/AYP 532123789

Arm, Asm, Idler

Note: (Incl. Key No. 62)

$

$

Not available

58

Electrolux/AYP 532105709

Spring, Return, Clutch

$11.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 874760624

Bolt, Hex, 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 532127783

Idler, V. Grove
(Superseded to 532139245)

$37.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532105706

Bearing

$7.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 819211616

Washer, 21/32 x 1 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 873800600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 817720410

Screw, Hex Thread Cut 1/4-20 x 5/8
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 817490624

Screw. Thdrol 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 811050600

Washer, Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 874760612

Bolt, Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 3 left!

0

69

Electrolux/AYP 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 876020412

Pin, Cotter, 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 817490612

Screw, Hex, Thdrol 3/8-16 X 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

80

Electrolux/AYP 532122082

Tire
(Superseded to 532125833)

$194.99

$

In Stock, only 1 left!

0

80A

Electrolux/AYP 532007152

Tube

$74.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 817021008

Screw, Tap. Hex Hd. #10-24 x 1/2 Type T

$4.99

$

In Stock, Qty 16

0

84

Electrolux/AYP 532110422

Spring, Brake Return
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

87

Electrolux/AYP 532125891

Shield Heat

$

$

Not available

88

Electrolux/AYP 819060916

Washer

$

$

Not available

89

Electrolux/AYP 817030808

Screw Spiderlock Hex Hd #8 x 1/2
(Superseded to 817030814)

$

$

Not available

92

Electrolux/AYP 819131316

Washer, 13/32 X 13/16 X 16 Ga.

$4.99

$

In Stock, Qty 5

0

95

Electrolux/AYP 532122758

Clamp Muffler

$

$

Not available

97

Electrolux/AYP 532121851

Spark Arrestor

$

$

Not available

98

Electrolux/AYP 873350600

Nut, Hex Jam 3/8 X 16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

99

Electrolux/AYP 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

Electrolux/AYP 532132506

Decal, HP Engine

Note: Not Shown.

$

$

Not available
