PP 16H44 B - Poulan Lawn Tractor (1992) AGRI-FAB TRANSAXLE MODEL NUMBER 121431X Parts Diagram

Lawn Tractor

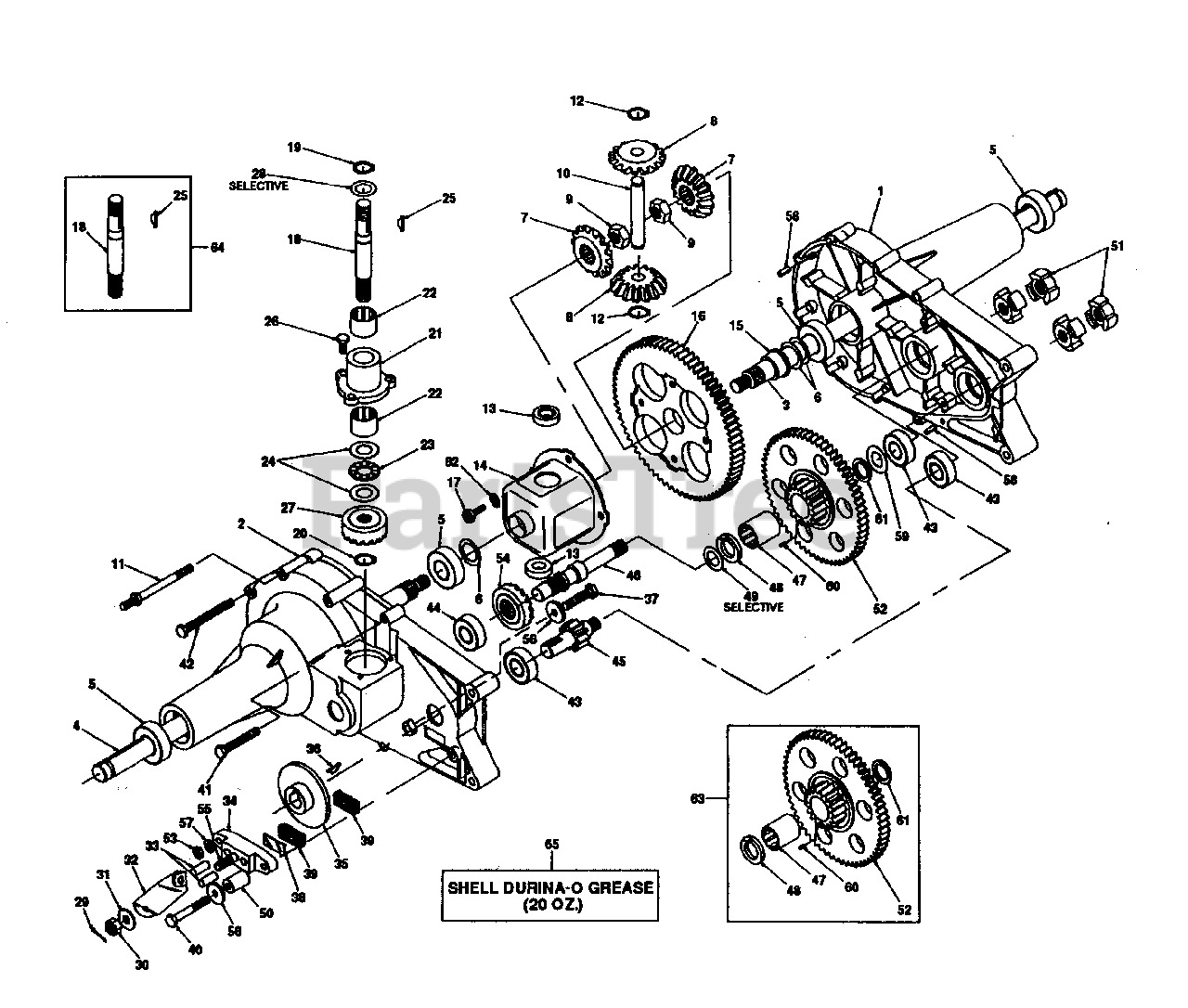

AGRI-FAB TRANSAXLE MODEL NUMBER 121431X Parts Diagram

  • Title

1

Electrolux/AYP 532122614

Housing, Half L.H.
(Superseded to 122614X)

$

$

Not available

2

Electrolux/AYP 532122615

Housing, Half R.H.
(Superseded to 122615X)

$

$

Not available

3

Electrolux/AYP 532122616

Axle L.H.

$

$

Not available

4

Electrolux/AYP 532122620

Axle R.H.

$

$

Not available

5

Electrolux/AYP 532122621

Bearing, Ball
(Superseded to 122621X)

$

$

Not available

6

Electrolux/AYP 532122622

Washer, Flat 3/4 x 1-1/8 x .030
(Superseded to 122622X)

$

$

Not available

7

Electrolux/AYP 532122623

Gear, Miter
(Superseded to 122623X)

$

$

Not available

8

Electrolux/AYP 532122624

Gear, Miter
(Superseded to 122624X)

$

$

Not available

9

Electrolux/AYP 532122625

Nut, Hex Jam w/Patch 1/2-20
(Superseded to 584282101)

$

$

Not available

10

Electrolux/AYP 532122626

Shaft, Cross

$

$

Not available

11

Electrolux/AYP 532122688

Screw, Stud
(Superseded to 122688X)

$

$

Not available

12

Electrolux/AYP 532122629

Snap, Ring

$2.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532122631

Bearing, Thrust
(Superseded to 122631X)

$

$

Not available

14

Electrolux/AYP 532122633

Housing Assembly, Differential

$182.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532122634

Bearing, Flange
(Superseded to 122634X)

$

$

Not available

16

Electrolux/AYP 532122640

Gear, Differential 72 Tooth

$

$

Not available

17

Electrolux/AYP 532122641

Bolt, Torx Head 1/4-28 x 5/8"

$

$

Not available

18

Electrolux/AYP 532122642

Shaft, Input
(Superseded to 532137195)

$376.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532122643

Snap, Ring

$

$

Not available

20

Electrolux/AYP 532122644

Retaining Ring 7/16"
(Superseded to 122644X)

$

$

Not available

21

Electrolux/AYP 532122645

Housing, Input Bearing
(Superseded to 532155892)

$376.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532122646

Bearing, Needle
(Superseded to 122646X)

$

$

Not available

23

Electrolux/AYP 532122647

Bearing, Thrust
(Superseded to 122647X)

$

$

Not available

24

Electrolux/AYP 532122648

Washer, Flat 5/8 x 1-1/8 x .030

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532122649

Key, Hi-Pro 3/32 x 5/8
(Superseded to 122649X)

$

$

Not available

26

Electrolux/AYP 532122650

Screw, Hex W/Patch 1/4-20 x 3/4

$

$

Not available

27

Electrolux/AYP 532122651

Gear, Input Pinion 17 Tooth
(Superseded to 532155892)

$376.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532123061

Washer, Flat .62 x 1 x .05
(Superseded to 532170404)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 532122678

Washer, Flat .62 x 1.125 x .060

Note: Not Shown.

$

$

Not available

Electrolux/AYP 532122654

Washer, Flat .62 x 1 x .040
(Superseded to 122654X)

Note: Not Shown.

$

$

Not available

29

Electrolux/AYP 532122656

Pin, Cotter

$

$

Not available

30

Electrolux/AYP 532122653

Nut, Castle 5/16-24

$

$

Not available

31

Electrolux/AYP 532122659

Washer, Flat .343 x .88 x .062
(Superseded to 532142884)

$12.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532122660

Arm, Brake Actuator

$12.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532122662

Pin, Brake Actuating

$

$

Not available

34

Electrolux/AYP 532122663

Brake, Yoke
(Superseded to 583041701)

$40.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532122664

Disc, Brake

$

$

Not available

36

Electrolux/AYP 532123065

Key, Hi-Pro 3/16 x 5/8"

$

$

Not available

37

Electrolux/AYP 532122666

Screw, Hex 1/4-20 x 1.50

$

$

Not available

38

Electrolux/AYP 532122667

Plate, Puck

$

$

Not available

39

Electrolux/AYP 532122668

Puck, Brake
(Superseded to 532142883)

$8.99

$

In Stock, only 2 left!

0

40

Electrolux/AYP 532123066

Screw, Hex w/Patch 1/4-20 x 2.00

$

$

Not available

41

Electrolux/AYP 532122670

Screw, Hex Self-Tap 1/4-20 x 2.00
(Superseded to 122670X)

$

$

Not available

42

Electrolux/AYP 532122671

Screw, Hex Self-Tap 1/4-20 x 3.00

$

$

Not available

43

Electrolux/AYP 532126982

Bearing, Ball
(Superseded to 532122672)

$

$

Not available

44

Electrolux/AYP 532122673

Bearing, Ball
(Superseded to 122673X)

$

$

Not available

45

Electrolux/AYP 532122674

Shaft, Pinion W/11 Tooth Gear
(Superseded to 122674X)

$

$

Not available

46

Electrolux/AYP 532122675

Shaft, Drive

$

$

Not available

47

Electrolux/AYP 532123059

Bearing, Needle
(Superseded to 123059X)

$

$

Not available

48

Electrolux/AYP 532123060

Bronze Thrust Brg. 5/8 x 1-1/4 x 7/64

$

$

Not available

49

Electrolux/AYP 532123061

Washer, Flat .62 x 1.0 x .050
(Superseded to 532170404)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 532122654

Washer, Flat .62 x 1.0 x .040
(Superseded to 122654X)

Note: Not Shown.

$

$

Not available

50

Electrolux/AYP 532122689

Spacer

$

$

Not available

51

Electrolux/AYP 532121839

Coupling

$18.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 532126975

Gear, 60 and 17 Tooth
(Superseded to 126975X)

$

$

Not available

53

Electrolux/AYP 532122682

Nut, Hex 1/4-20

$

$

Not available

54

Electrolux/AYP 532122683

Gear, Drive Pinion 17 Tooth

$

$

Not available

55

Electrolux/AYP 532122684

Bolt, Square Head

$

$

Not available

56

Electrolux/AYP 532122685

Washer 15/16 x .265 x .125

$

$

Not available

57

Electrolux/AYP 532122686

Washer, Spring Lock 1/4"

$

$

Not available

58

Electrolux/AYP 532122687

Pin, Roll 3/16" x 1/2"
(Superseded to 122687X)

$

$

Not available

59

Electrolux/AYP 532122652

Washer, Flat .62 x 1.0 x .030
(Superseded to 122652X)

$

$

Not available

60

Electrolux/AYP 532123062

Pin, Dowel 3/32 x 1/4

$

$

Not available

61

Electrolux/AYP 532123063

Seal, Grease

$

$

Not available

62

Electrolux/AYP 532126977

Washer, Head Spring Lock 1/4"

$

$

Not available

63

Electrolux/AYP 532126980

Assembly, Gear, Reduction

$

$

Not available

64

Electrolux/AYP 532126981

Assembly, Shaft, Input

$

$

Not available

65

Electrolux/AYP 532126976

Shell Durina-O Grease (20 oz.)

$47.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 532121431

Transaxle Assembly Complete

Note: Not Shown.

$

$

Not available
