PP 16H36R B - Poulan Pro Lawn Tractor (2006-05) Steering Assembly Parts Diagram

Lawn Tractor

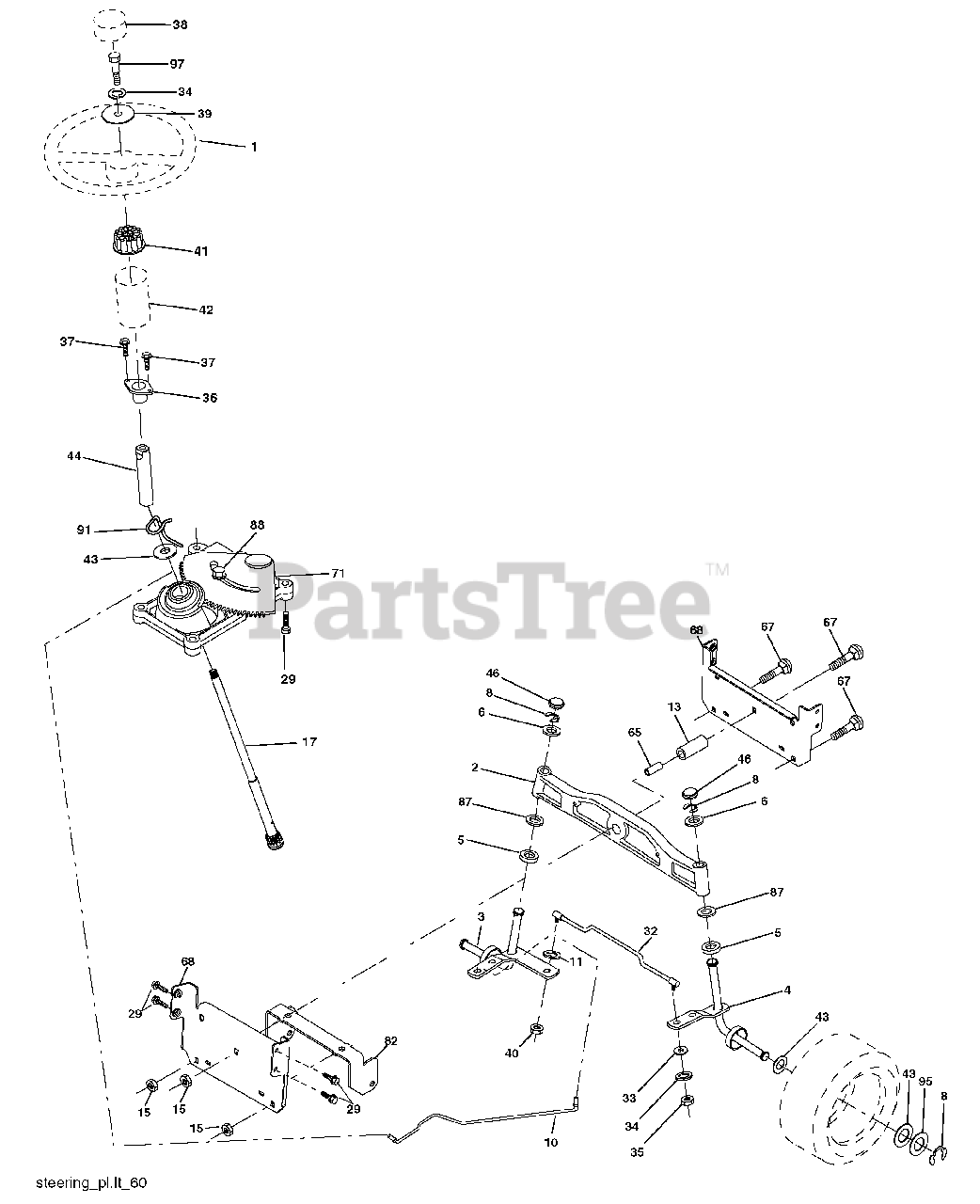

Steering Assembly Parts Diagram

  • Title

1

Electrolux/AYP 532194595

Steering Wheel

$

$

Not available

2

Electrolux/AYP 532184706

Front Axle Assembly
(Superseded to 532193542)

$169.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532169840

Spindle Assembly, L.H.
(Superseded to 596873901)

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532169839

Spindle Assembly, R.H.
(Superseded to 596873801)

$31.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532124931

Bearing, Race, Thrust, Hardened
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

6

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 812000029

Ring, Klip

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532175121

Link, Drag

$68.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 810040600

Washer, Lock
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532136518

Spacer Axle

$9.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 532145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532190753

Shaft Assembly, Steering

$

$

Not available

29

Electrolux/AYP 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 532170162

Rod, Tie

$93.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 810040500

Washer Lock Hvy Hlcl Spr 5/16

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 873540500

Crownlock Nut 5/16-24 unf

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532155099

Bushing, Steering
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

37

Electrolux/AYP 532152927

Screw TT #I0-32 x 5 x 3/8 Flange

$7.49

$

In Stock, only 2 left!

0

38

Electrolux/AYP 532194603

Cap Wheel Steering

$53.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 819113812

Washer 11/32 ID x 2-3/8 OD 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 873540600

Nut Crownlock 3/8-24

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532186737

Adaptor, Steering Wheel
(Superseded to 532437747)

$9.49

$

In Stock, Qty 8

0

42

Electrolux/AYP 532169633

Boot, Steering Dash P/L Mtl
(Superseded to 532145054)

$

$

Not available

43

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532190752

Extension Steering

$17.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 9

0

65

Electrolux/AYP 532160367

Spacer Axle
(Superseded to 532414736)

$6.99

$

In Stock, Qty 5

0

67

Electrolux/AYP 872110618

Bolt Rdhd Sq 3/8-16 x 2-1/4

$6.49

$

In Stock, only 2 left!

0

68

Electrolux/AYP 532169827

Brace Axle

$21.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532175146

Steering Asm.

$182.99

$

In Stock, only 3 left!

0

82

Electrolux/AYP 532199978

Bracket Susp. Chassis Front

$15.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 532173966

Washer Flat .781 x 1-1/2 x .14

$7.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 532175118

Bolt Shoulder 7/16-20 unc

$6.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 532175553

Clip Steering

$13.99

$

In Stock, only 1 left!

0

95

Electrolux/AYP 532188967

Washer Hardened .739 x 1.637 x 060

$4.99

$

In Stock, Qty 20+

0

97

Electrolux/AYP 874780564

Bolt 5/16-18 unc x 4" L Gr. 5

$6.49

$

Usually ships in 3-10 days

0
