PP 16H36R B - Poulan Pro Lawn Tractor (2006-05) Seat Assembly Parts Diagram

Lawn Tractor

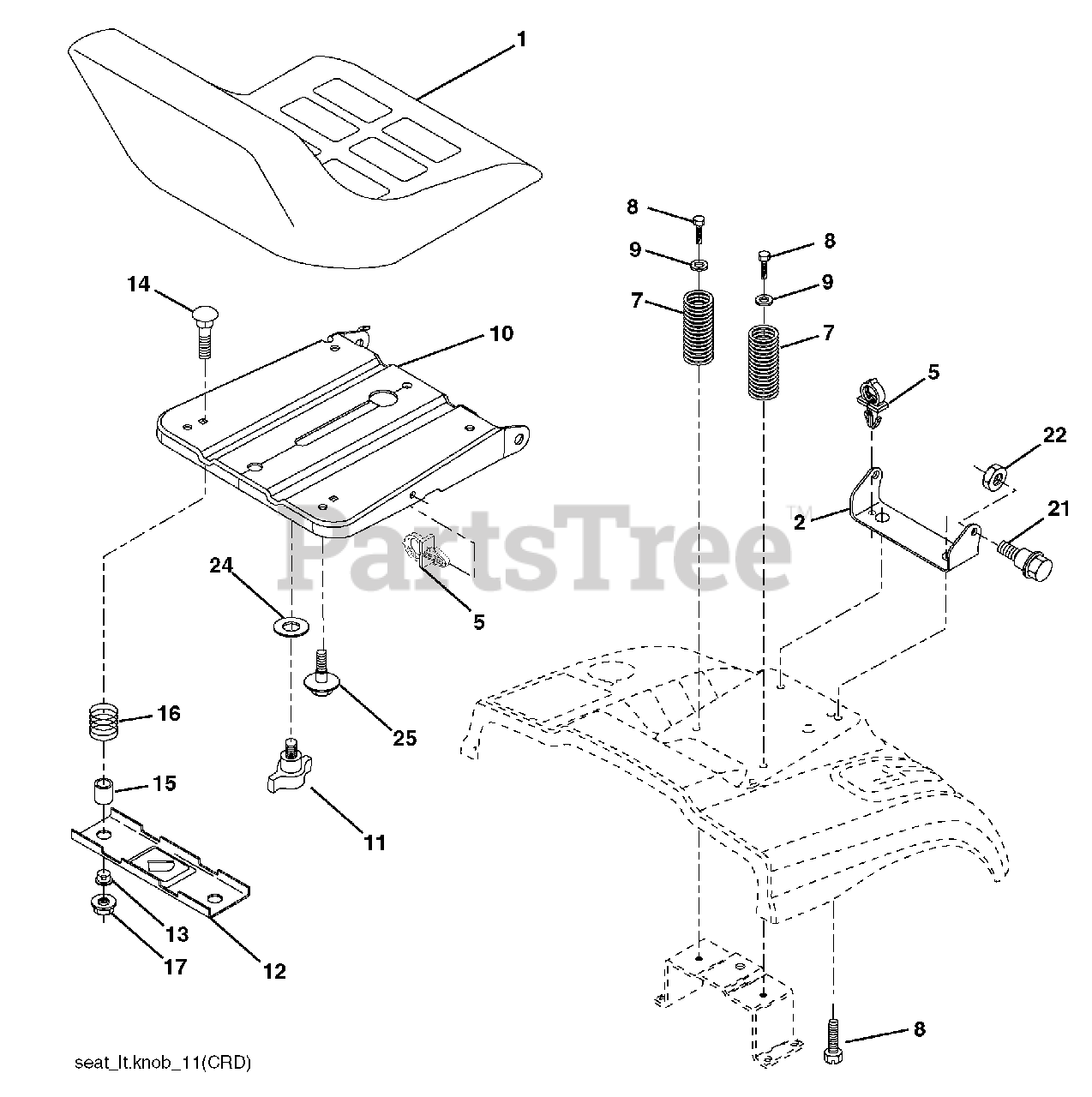

Seat Assembly Parts Diagram

  • Title
1

Electrolux/AYP 532188712

Seat
(Superseded to 532401043)

$

$

Not available

2

Electrolux/AYP 532140551

Bracket Pnt Pivot Seat (blk )

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 871110616

Bolt Fin Hex 3/8-16 x 1

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 819131610

Washer Flat 13/32 x 1 x 10 Ga.

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 532145006

Clip Push In Hinged

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 873800600

Nut Lock Hex W/Ins 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532124181

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 817000616

Screw 3/8-16 x 1.5

$7.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532195530

Pan Pnt Seat (blk )

$21.99

$

Usually ships in 3-10 days

0

$10.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 532174648

Bracket Pnt Mounting Switch

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 872050412

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

15

$7.49

$

Usually ships in 3-10 days

0

16

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532123976

Nut Lock 1/4 Lge Flg Gr. 5 Zinc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

21

Electrolux/AYP 532171852

Bolt Shoulder 5/16-18 unc-2A
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 873800500

Nut Hex Lock w/Ins 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 819171912

Washer 17/32 x 1-3/16 x 12 Ga.

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 532127018

Bolt Shoulder 5/16-18 x .62

$7.49

$

Usually ships in 3-10 days

0
