PP 16H36R B - Poulan Pro Lawn Tractor (2006-05) Mower Lift Parts Diagram

Lawn Tractor

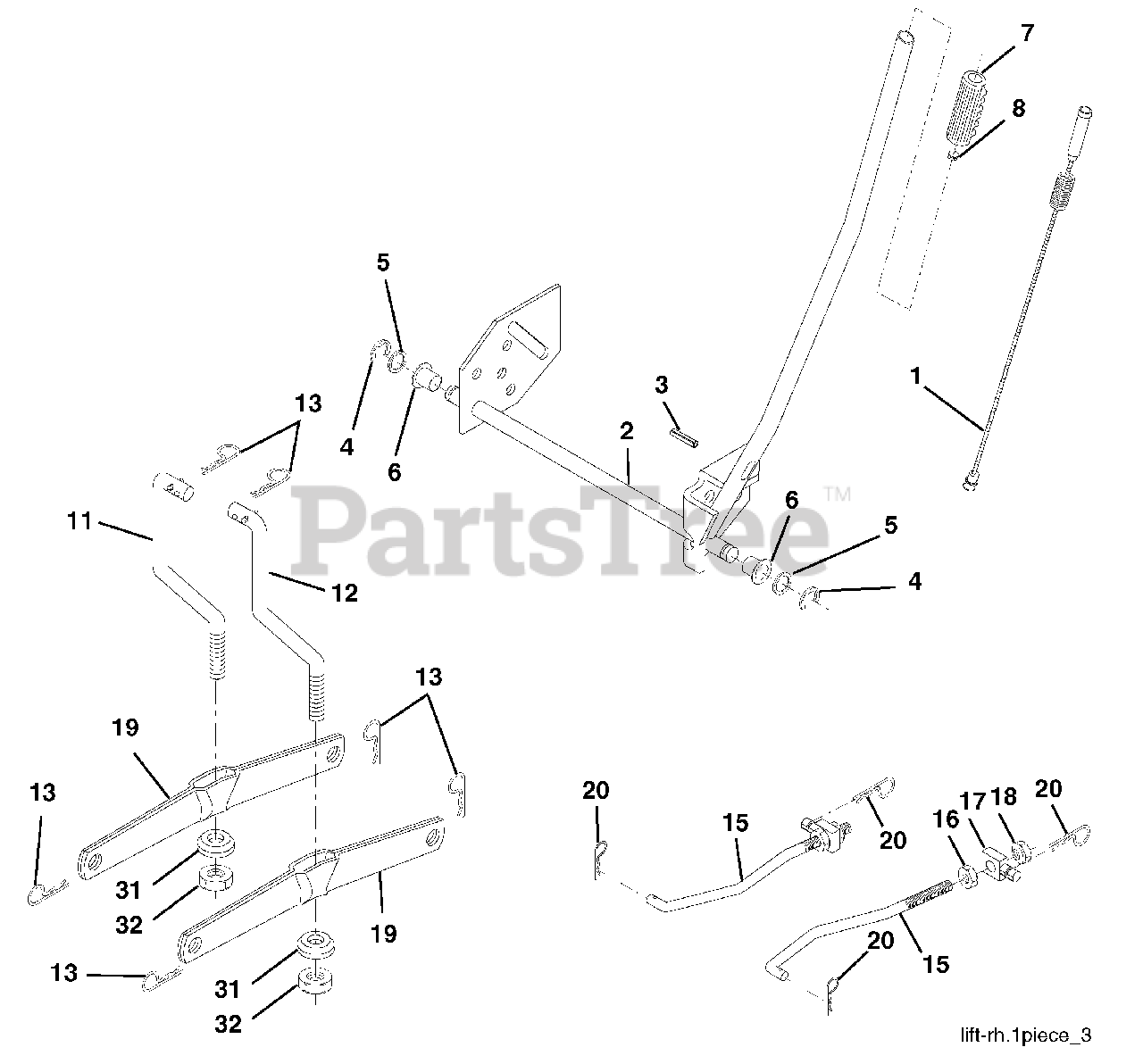

Mower Lift Parts Diagram

  • Title

1

Electrolux/AYP 532198417

Washer Asm Inner Spring W/Plunger

$

$

Not available

2

Electrolux/AYP 532198070

Shaft Asm. Lift
(Superseded to 585906501)

$56.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532188822

Pin Groove
(Superseded to 583172901)

$7.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 812000002

E Ring #5133-62

$7.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 819211621

Washer 21/32 x 1 x 21 Ga.

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 532120183

Bearing Nylong

$6.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 532109413

Grip Handle Bicycle
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532124385

Button Plunger Black

$

$

Not available

11

Electrolux/AYP 532165829

Link Asm Lift L.H.
(Superseded to 532165828)

$26.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532165831

Link Asm Lift R.H.
(Superseded to 532165830)

$

$

Not available

13

Electrolux/AYP 532124670

Retainer Spring
(Superseded to 532085902)

$

$

Not available

15

Electrolux/AYP 532173288

Link Front

$13.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 873350800

Nut Jam Hex 1/2-13 unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 532175689

Trunnion Blk Zinc

$

$

Not available

18

Electrolux/AYP 873800800

Nut Lock w/wsh 1/2-13 unc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532139868

Arm Suspension Mower

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532194209

Retainer Spring

$3.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 532169865

Bearing, Pvt. Lift.

$

$

Not available

32

Electrolux/AYP 873540600

Nut Crownlock 3/8-24

$4.99

$

Usually ships in 3-10 days

0
