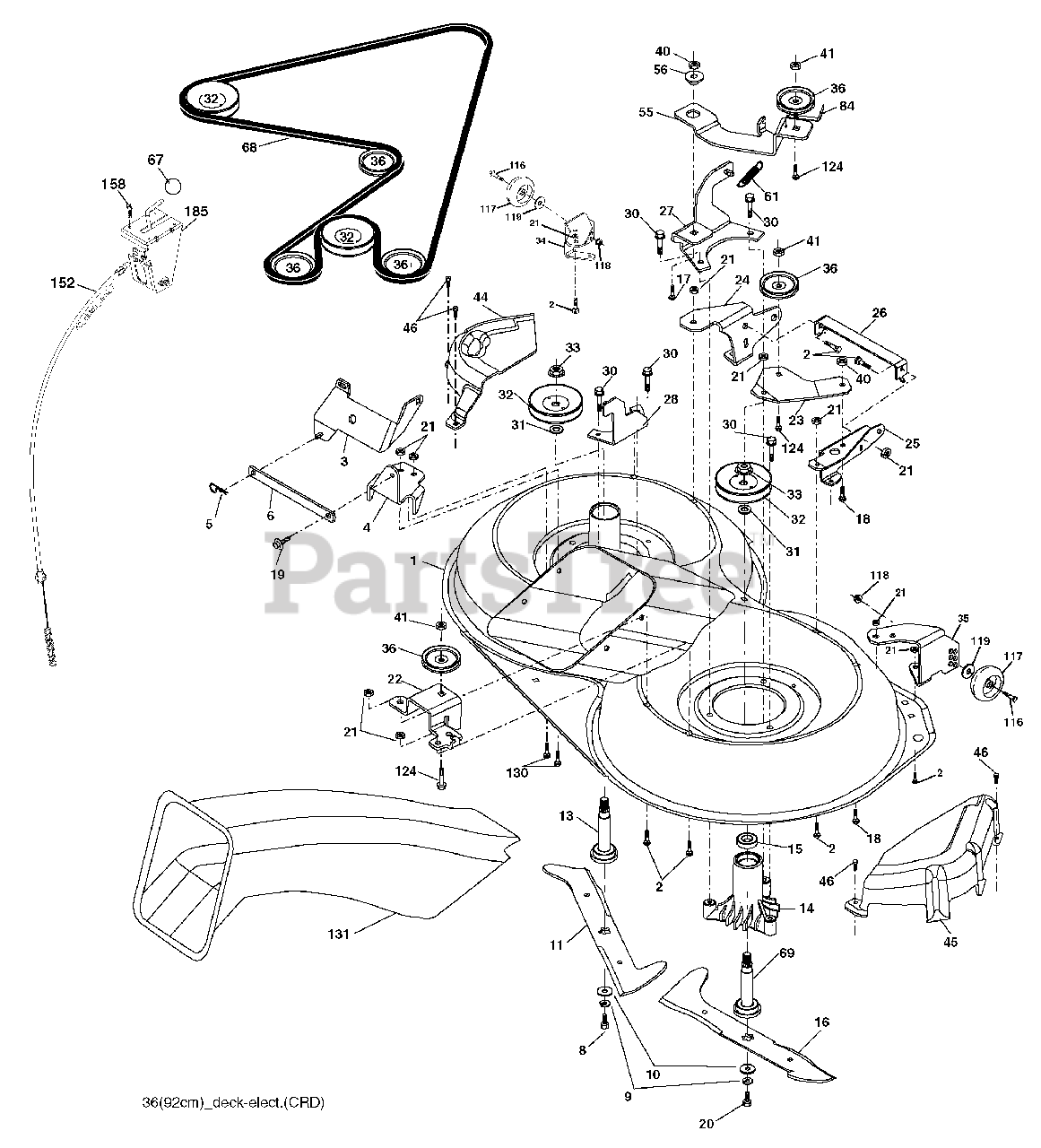

PP 16H36R B - Poulan Pro Lawn Tractor (2006-05) Mower Parts Diagram

Lawn Tractor

Mower Parts Diagram

  • Title

1

Electrolux/AYP 532400108

Housing Asm. Mower

$

$

Not available

2

Electrolux/AYP 872140506

Bolt Rdhd Sqnk 5/16-18 unc x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 532165569

Bracket Asm. S-Bar Chass
(Superseded to 532431864)

$24.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532165558

Bracket Bar Sway Deck

$

$

Not available

5

Electrolux/AYP 532124670

Retainer Spring
(Superseded to 532085902)

$

$

Not available

6

Electrolux/AYP 532165557

Bar Sway
(Superseded to 165557)

$

$

Not available

8

Electrolux/AYP 532181712

Bolt 3/8-24 x 1.25 Gr. 8 Patched
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 810030600

Washer Lock Hvy 3/8 Unplated
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532186385

Blade 3-1 Lh

$

$

Not available

13

Electrolux/AYP 532137645

Shaft Asm. W/Lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 532128774

Housing Mandrel Vented (Machd)

$34.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532110485

Bearing Ball Mandrel

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 532186386

Blade 3-1 Rh

$

$

Not available

17

Electrolux/AYP 873680600

Nut Crownlock 3/8-16 unc
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

18

Electrolux/AYP 872110606

Bolt Rdhd Sqnk 3/8-16 x 3/4 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532132827

Bolt Shoulder 5/16-18 Thd Form

$

$

Not available

20

Electrolux/AYP 532181713

Bolt 3/8-24 x 1.25 Gr. 8 Ptch
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

21

Electrolux/AYP 873680500

Nut Crown Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 532199590

Bracket Idler Sprt RR

$

$

Not available

23

Electrolux/AYP 532165446

Bracket Idler Sprt RF

$

$

Not available

24

Electrolux/AYP 532165242

Bracket Suspension LF
(Superseded to 165242)

$

$

Not available

25

Electrolux/AYP 532165244

Bracket Suspension RF
(Superseded to 165244)

$

$

Not available

26

Electrolux/AYP 532400110

Brace Support Susp Frt CRD
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532165568

Bracket Asm. Susp RR

$27.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532165567

Bracket Asm. Susp LR
(Superseded to 165567)

$

$

Not available

30

Electrolux/AYP 532173984

Screw Thd Rolling Dod.PT Hex
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 532187690

Washer Spacer Mower Vented

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 532153531

Mandrel Pulleys
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532400234

Nut Flg Top Lock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

34

Electrolux/AYP 532400107

Bracket Gauge Wheel Lf

$

$

Not available

35

Electrolux/AYP 532400106

Bracket Gauge Wheel Rf

$

$

Not available

36

Electrolux/AYP 532146763

Pulley Idler V-Groove Dim 4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 873680600

Nut Crownlock 3/8-16 unc
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

41

Electrolux/AYP 873900600

Nut Flangelock 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 532175538

Cover Mandrel Lh

$

$

Not available

45

Electrolux/AYP 532175539

Cover Mandrel Rh

$21.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 532137729

Screw Thd Roll 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 532199498

Arm Idler
(Superseded to 583252901)

$30.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532165723

Spacer Retainer

$6.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 532165945

Spring Tension Belt

$14.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 532124700

Knob

$

$

Not available

68

Electrolux/AYP 532180217

Hex-Belt Mower
(Superseded to 532402008)

$91.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532165482

Shaft Asm W/Lwr Brg Rh Thd

$68.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 532156085

Keeper Belt Idler
(Superseded to 532173968)

$

$

Not available

116

Electrolux/AYP 532184219

Bolt Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 532174873

Wheel Gage
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

118

Electrolux/AYP 873930600

Nut Centerlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 819121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

124

Electrolux/AYP 872110612

Bolt Carr Sh 3/8-16 x 1-1/2 Gr5

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 872110506

Bolt Rdhdsqnk 5/16-18 unc x 3/4

$7.49

$

In Stock, Qty 20+

0

131

Electrolux/AYP 532165661

Chute Bagger CRD 92cm

$93.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 532176074

Cable Clutch

$

$

Not available

158

Electrolux/AYP 817720408

Screw 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 532188234

Head Asm Cable Clutch

$53.99

$

In Stock, only 1 left!

0

185

Electrolux/AYP 532181857

Mandrel Asm Service
(Superseded to 583118201)

$91.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 532181858

Mandrel Asm CRD Lh Threads VC
(Superseded to 583118301)

$96.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 532189949

Replacement Mower Complete

$

$

Not available
