PP 16H36R B - Poulan Pro Lawn Tractor (2006-05) Engine Parts Diagram

Lawn Tractor

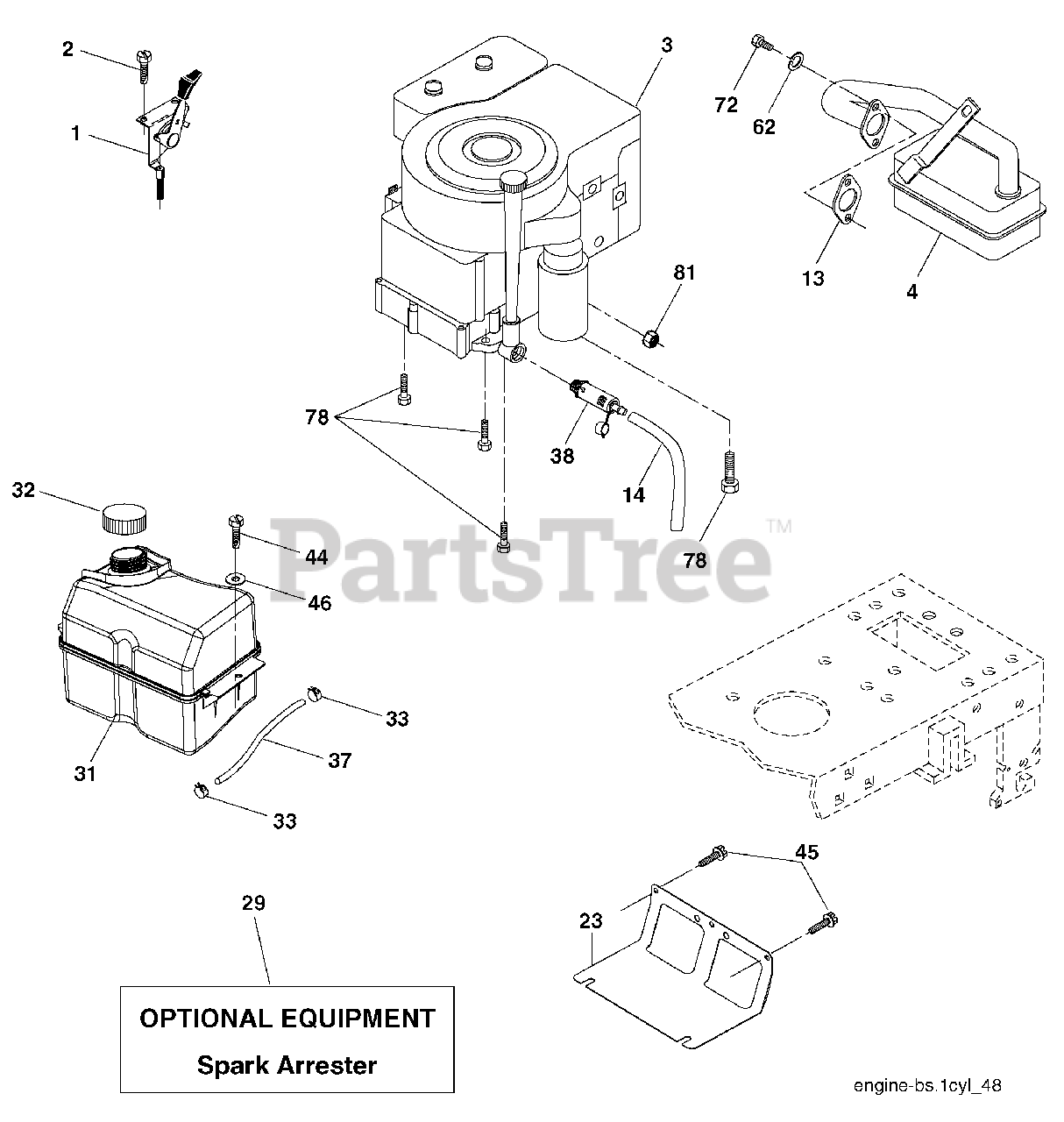

Engine Parts Diagram

  • Title

1

Electrolux/AYP 532170551

Control Throt/Ck

$37.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine B&S Model 283H07

Note: (Order parts from engine manufacturer)

$

$

Not available

4

Electrolux/AYP 532137352

Muffler

$45.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 532165291

Gasket Muffl er
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

23

Electrolux/AYP 532169837

Shield Brn/Dbr Guard

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532121851)

$

$

Not available

31

Electrolux/AYP 532185534

Tank Fuel
(Superseded to 532183361)

$87.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 532197725

Cap Asm Fuel Top
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532123487

Clamp Hose Blk

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 532137040

Line Fuel

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

44

Electrolux/AYP 817670412

Screw Hexwsh thdrol 1/4-20 x 3/4

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 810010500

Washer Split

$6.49

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 532192334

Screw Socket Hd 5/16-18 x .75
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

78

Electrolux/AYP 817060620

Screw 3/8-16 x 1/4

$7.49

$

In Stock, Qty 11

0

81

Electrolux/AYP 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873640400)

$

$

Not available
