PP 16H36R B - Poulan Pro Lawn Tractor (2006-05) Drive Parts Diagram

Lawn Tractor

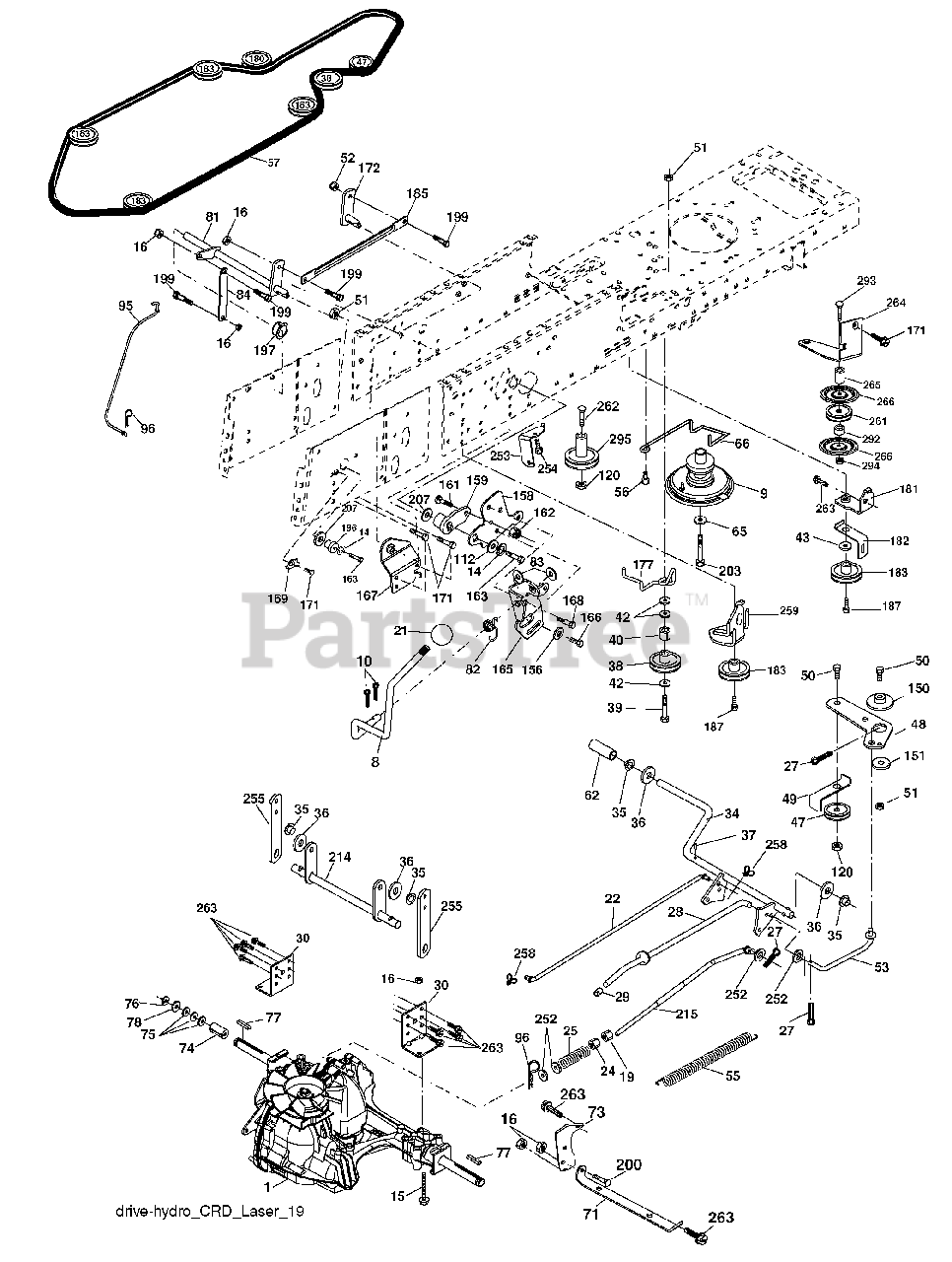

Drive Parts Diagram

  • Title

1

Transaxle Hydro Gear 321-0510

Note: (Order parts from transaxle manufacturer)

$

$

Not available

8

Electrolux/AYP 532192706

Rod, Shift Fender Adjust Lt
(Superseded to 585139901)

$20.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532180354

Clutch Asm Noram
(Superseded to 582219701)

$

$

Not available

10

Electrolux/AYP 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 810040400

Washer, Lock Hvy Helical
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 874490544

Bolt Hex FGHD 5/16-18 x Gr. 5

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 873800500

Nut Lock Hex W/Ins 5/16-18 unc
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 873800600

Nut Lock Hex w/Insert 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532126639

Knob

$

$

Not available

22

Electrolux/AYP 532175607

Rod, Brake
(Superseded to 583070201)

$27.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 873350600

Nut
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532192036

Spring, Rod, Brake
(Superseded to 583201301)

$4.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 819131316

Washer 13/32 x 13/16 x 16 Ga.

$4.99

$

In Stock, Qty 5

0

27

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532175765

Rod, Parking Brake

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532071673

Cap, Parking Brake

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532169592

Bracket, Mfg. Transaxle

$6.49

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532175578

Shaft, Asm Pedal Foot CRD

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532120183

Bearing, Nylon

$6.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 819211616

Washer 21/32 x 1 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532124963

Pin, Roll 3/16 x 1"
(Superseded to 532002882)

$

$

Not available

38

Electrolux/AYP 532165936

Pulley Flat Composite 3.06"

$31.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 874760644

Bolt Fin Hex 3/8-16 unc x 2-3/4

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532124965

Spacer, Split 395 x 59 Bzp

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

43

Electrolux/AYP 819111012

Washer 11/32 x 5/8 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532127783

Pulley, Idler, V Groove Plasitc
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 532154407

Bellcrank Clutch Grnd Drv

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532123205

Retainer, Belt Style Spring

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 872110612

Bolt 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 873680600

Nut, Crownlock 3/8-16 unc
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

52

Electrolux/AYP 873680500

Nut Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 532199652

Link, Clutch 7.66

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532105709

Spring, Return, Clutch

$11.99

$

In Stock, only 4 left!

0

56

Electrolux/AYP 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

57

Electrolux/AYP 532170140

V-Belt Kev 112" 0650 CRD
(Superseded to 583036701)

$85.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532124872

Cover, Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 810040700

Washer
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 532154778

Keeper, Belt Engine F-Proof

$12.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532169183

Strap, Torque, Lh

$7.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 532169182

Strap, Torque, Rh

$17.99

$

In Stock, only 1 left!

0

74

Electrolux/AYP 532137057

Spacer, Split

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 812000001

Ring, E

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 532123583

Key, Square

$4.99

$

In Stock, Qty 7

0

78

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 532170006

Asm, Shaft,Cross Rear
(Superseded to 170006)

$12.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 532165711

Spring, Torsion

$7.49

$

In Stock, only 1 left!

0

83

Electrolux/AYP 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 19171216)

$

$

Not available

84

Electrolux/AYP 532170007

Link, Transaxle
(Superseded to 583035901)

$6.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 532170015

Control Asm Bypass Hydro
(Superseded to 583036101)

$21.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 532124788

Spring, Retainer 1"
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Electrolux/AYP 819091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 873900600

Nut Lock Flg. 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

150

Electrolux/AYP 532165850

Bushing, Bellcrank Grnd Dr

$

$

Not available

151

Electrolux/AYP 819133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 532166002

Washer Srrted 5/16 ID x 1.125

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 532165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 532183900

Hub Shift
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 872140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 873680400

Nut Crownlock 1/4-20 unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

163

Electrolux/AYP 874780416

Bolt Hex Fin 1/4-20 unc x 1 Gr 5

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 532165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 817490510

Screw 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

167

Electrolux/AYP 532165588

Bracket Support Shift CRD
(Superseded to 574988801)

$

$

Not available

168

Electrolux/AYP 532165492

Bolt Shoulder 5/16-18 x .561

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 532165580

Plate Fastening Lt

$6.99

$

Usually ships in 3-10 days

0

171

Electrolux/AYP 817490608

Screw Thdrol 3/8-16 x 1/2 Ty-Tt

$6.49

$

Usually ships in 3-10 days

0

172

Electrolux/AYP 532170271

Shaft Asm Shifter Frt CRD
(Superseded to 583037801)

$24.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 532165932

Keeper Flat Idler 3.06" CRD

$7.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 532180211

Bracket Idler Ground Drive CRD
(Superseded to 583099101)

$5.99

$

Usually ships in 3-10 days

0

182

Electrolux/AYP 532182682

Keeper Belt 2.5" Od V-Idler CRD
(Superseded to 583123401)

$4.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 532199532

Pulley V-Idler 2.50" Od CRD
(Superseded to 532199534)

$37.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 532170008

Link Shift
(Superseded to 583036001)

$13.99

$

Usually ships in 3-10 days

0

186

Electrolux/AYP 532165614

Hub Tapered Round CRD

$6.49

$

Usually ships in 3-10 days

0

187

Electrolux/AYP 817580520

Screw Thdrol 5/16-18 x 1.25

$4.99

$

In Stock, only 3 left!

0

197

Electrolux/AYP 532169613

Nyliner Snap-In 5/8

$7.49

$

In Stock, Qty 6

0

199

Electrolux/AYP 532169612

Bolt Shoulder 5/16-18 unc
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

200

Electrolux/AYP 872140508

Bolt RDHD SQNK 5/16-18 x 1
(Superseded to 595901501)

$4.99

$

In Stock, Qty 7

0

203

Electrolux/AYP 871170780

Bolt Hex 7/16-20 x 5
(Superseded to 71170780)

$9.49

$

In Stock, only 1 left!

0

207

Electrolux/AYP 532169845

Washer Nylon Rear

$4.99

$

Usually ships in 3-10 days

0

214

Electrolux/AYP 532175609

Shaft Asm. Brake
(Superseded to 583070401)

$11.99

$

Usually ships in 3-10 days

0

215

Electrolux/AYP 532175652

Rod Brake Hydro

$

$

Not available

252

Electrolux/AYP 819131616

Washer 13/32 x 1 x 16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

253

Electrolux/AYP 532175028

Bracket Cable Chassis

$

$

Not available

254

Electrolux/AYP 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

255

Electrolux/AYP 532175608

Brace Shaft Brake Mtg.
(Superseded to 583070301)

$2.99

$

Usually ships in 3-10 days

0

258

Electrolux/AYP 532178062

Clip Retainer

$4.99

$

In Stock, only 1 left!

0

259

Electrolux/AYP 532180212

Bracket Pulley
(Superseded to 583099201)

$

$

Not available

261

Electrolux/AYP 532131494

Pulley Idler
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

262

Electrolux/AYP 872110622

bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5

$4.99

$

In Stock, Qty 9

0

263

Electrolux/AYP 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

264

Electrolux/AYP 532197608

Bracket Clutch Mounting

$

$

Not available

265

Electrolux/AYP 532182013

Spacer Idler Chassis

$18.99

$

Usually ships in 3-10 days

0

266

Electrolux/AYP 532182061

Shield Idler Mower
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

292

Electrolux/AYP 532400271

Spacer Noram
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

293

Electrolux/AYP 872140628

Bolt Rdhd Sqnk 3/8-16 x 3-1/2

$4.99

$

In Stock, only 2 left!

0

294

Electrolux/AYP 532197033

Nut Jam 3/8-16

$4.99

$

Usually ships in 3-10 days

0

295

Electrolux/AYP 532179114

Pulley Idler Composite

$31.99

$

Usually ships in 3-10 days

0
