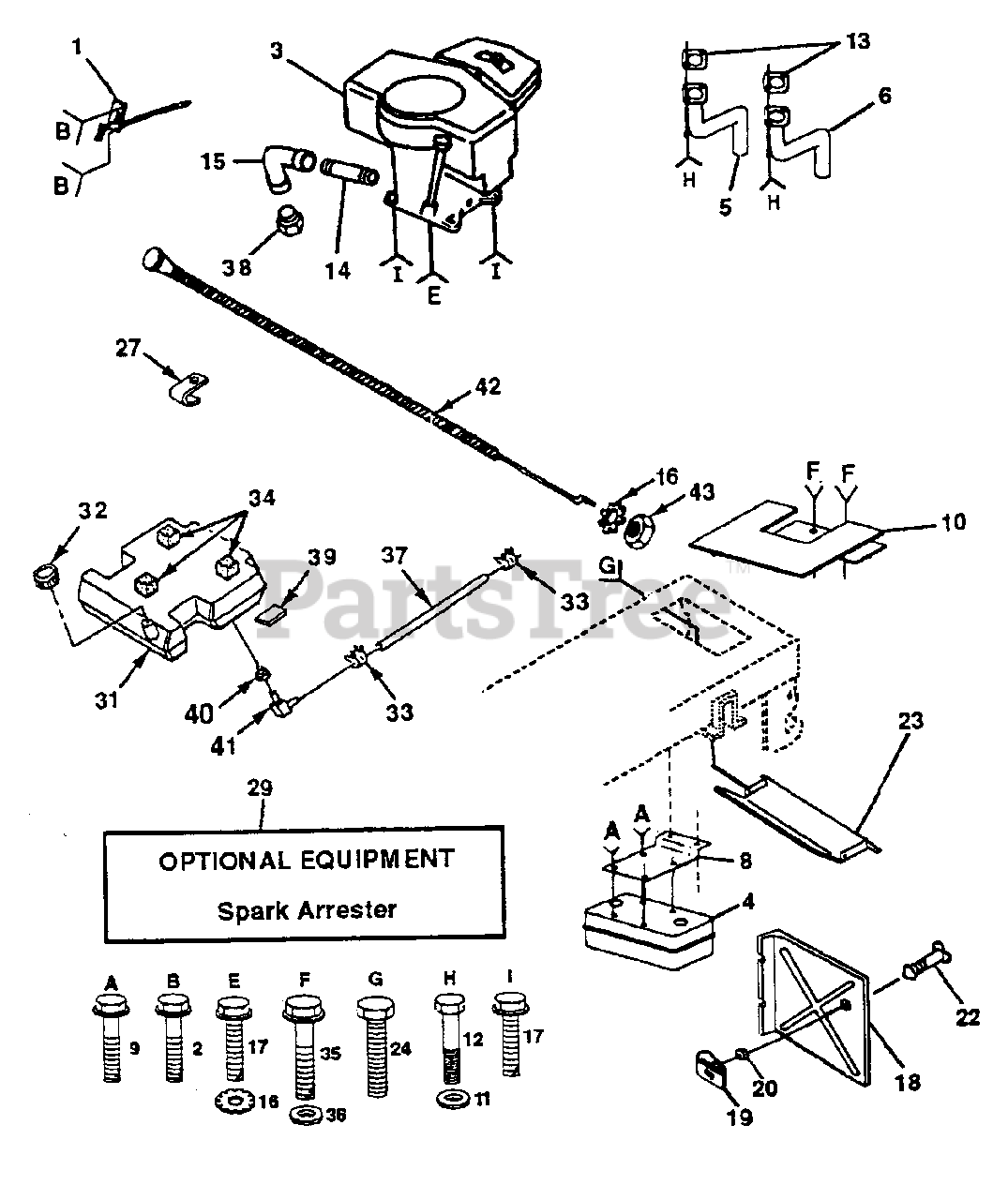

PP 1644J - Poulan Lawn Tractor (1994) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 532137214

Control RH Blk Flg 37 88
(Superseded to 532143443)

$34.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 532137978

Muffler LT B&S
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532136215

Tube Manifold LH

$

$

Not available

6

Electrolux/AYP 532136216

Tube Manifold RH

$

$

Not available

8

Electrolux/AYP 532122439

Bracket Muffler Mounting

$

$

Not available

9

Electrolux/AYP 817190408

Screw Hex Wsh Thd Cut 1/4-20
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532143600

Shield Heat LT
(Superseded to 532145552)

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 810040500

Washer Lock Hvy Hlcl 1/4 (Order from Engine Manufacturer)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 874570512

Bolt, Fin Hex 1/4-20 x 3/4 (Order from Engine Manufacturer)

$3.99

$

In Stock, only 4 left!

0

14

Electrolux/AYP 813280336

Nipple Pipe 3/8 Npt X 4-1/2"

$

$

Not available

15

Electrolux/AYP 813200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 817490624

Screw Thdrol 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532133747

Shield Heat Mech
(Superseded to 133747)

$

$

Not available

19

Electrolux/AYP 532105839

Receptacle 1/4 Turn

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 532105838

Retainer 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532123650

Stud 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532128953

Shield Heat Browning LT/YT

$

$

Not available

24

Electrolux/AYP 817021008

Screw Tap Hex #10-24unc X 1/2

$4.99

$

In Stock, Qty 14

0

27

Electrolux/AYP 532002751

Clip, Fuel Line
(Superseded to 2751R)

$

$

Not available

29

Electrolux/AYP 532137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532121851)

$

$

Not available

31

Electrolux/AYP 532141069

Tank Fuel 3 50 Rear
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532123487

Clamp Hose Blk

$7.49

$

In Stock, only 4 left!

0

34

Electrolux/AYP 532106082

Pad, Spacer

$

$

Not available

35

Electrolux/AYP 817490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 819131614

Washer 13/32 x 1-1/4 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532008543

Line Fuel 54"

$10.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532109227

Pad, Idler

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 532124952

Bushing
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 7

0

42

Electrolux/AYP 532132782

Choke Control
(Superseded to 532132781)

$

$

Not available

43

Electrolux/AYP 873610600

Nut, Fin Hex 3/8-24 Unf
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
