PP 1644 JA - Poulan Pro Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

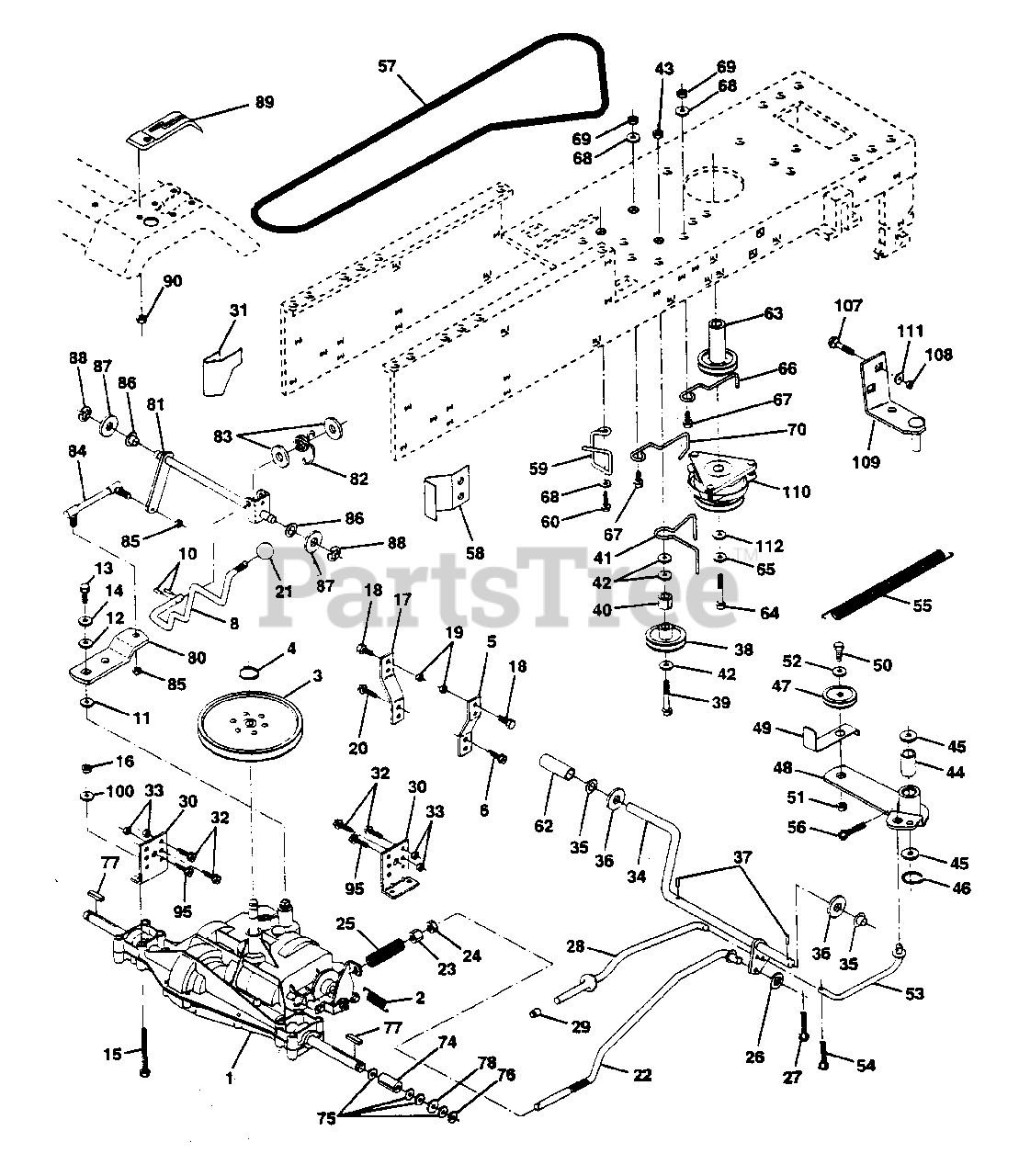

DRIVE Parts Diagram

  • Title

1

Poulan 532142607

Transaxle 6sp Dana LT Model # 4360-81 (AYP part number)
(Superseded to 532145605)

$

$

Not available

2

Poulan 532110422

Spring Return Brake T/a Zinc (AYP part number)
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Poulan 532123666

Pulley Transaxle 20"tires (AYP part number)

$45.99

$

In Stock, only 1 left!

0

4

Poulan 812000028

Ring Retainer # 5100-62 (AYP part number)
(Superseded to 532002267)

$7.49

$

In Stock, Qty 8

0

5

Poulan 532121520

Strap Torque 30 Degrees (AYP part number)

$7.99

$

In Stock, only 3 left!

0

6

Poulan 817490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

8

Poulan 532141002

Rod Shifter (AYP part number)

$

$

Not available

10

Poulan 876020416

Pin Cotter 1/8 X 1 Cad (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 532105701

Washer Plate Shf 388 Sq Hole (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 819151216

Washer 15/32 X 3/4 X 16 Ga (AYP part number)
(Superseded to 19151216)

$

$

Not available

13

Poulan 871040412

Bolt Fin Hex 1/4-28unfx3/4 Gr8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 810040400

Washer Lock Hvy Helical 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Poulan 874780544

Bolt Fin Hex 5/16-18uncx 2 3/4 (AYP part number)
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 873800500

Nut Lock H w/insert 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 532121520

Strap Torque LT (AYP part number)

$7.99

$

In Stock, only 3 left!

0

18

Poulan 874760616

Bolt Fin Hex 3/8-16unc X 1 Gr. 5 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Poulan 873800600

Nut Lock 3/8-16 Unc (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 817490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

21

Poulan 532121274

Knob Duckhead 3/8-16unc Blk (AYP part number)

$10.99

$

Usually ships in 3-10 days

0

22

Poulan 532130804

Rod Brake Blk Zinc 27 326 (AYP part number)

$31.99

$

Usually ships in 3-10 days

0

23

Poulan 873800600

Nut Lock Hex W/wsh 3/8-16unc (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 873350600

Nut Hex Jam 3/8-16 Unc (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 532106888

Spring Rod Brake 2 00 Zinc (AYP part number)
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Poulan 819131316

Washer 13/32 X 13/16 X 16 Ga (AYP part number)

$4.99

$

In Stock, Qty 5

0

27

Poulan 876020412

Pin Cotter 1/8 X 3/4 Cad (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 532133261

Rod Brake Parking 14 500 (AYP part number)

$

$

Not available

29

Poulan 532071673

Cap Brake Parking Black (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

30

Poulan 532130807

Bracket Mtg Transaxle (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 532127275

Keeper Belt LH LT 14 Ga (AYP part number)

$

$

Not available

32

Poulan 874760512

Bolt Hex Hd 5/16-18unc X 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 873800500

Nut Lock 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

34

Poulan 532122424

Shaft Asm Pedal Foot 1 930 (AYP part number)

$

$

Not available

35

Poulan 532120183

Bearing Nylon Blk 629 Id (AYP part number)

$6.99

$

In Stock, only 4 left!

0

36

Poulan 819211616

Washer 21/32 X 1 X 16 Ga (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532124963

Pin Roll 3/16 X 1" (AYP part number)
(Superseded to 532002882)

$

$

Not available

38

Poulan 532123674

Pulley Idler Flat (AYP part number)

$31.99

$

In Stock, only 1 left!

0

39

Poulan 874760644

Bolt Fin Hex 3/8-16unc X 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532124965

Spacer Split 395 X 59 Bzp (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532109070

Keeper Belt Retainer (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 819131312

Washer 13/32 X 13/16 X 12 Ga (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

43

Poulan 873800600

Nut Lock 3/8-16 Unc (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 532105706

Bearing Nyl 503 X 628 X 1 25 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 532110812

Washer Hardened (AYP part number)
(Superseded to 110812X)

$

$

Not available

46

Poulan 812000039

Ring Klip #t5304-50 (AYP part number)

$6.49

$

In Stock, Qty 8

0

47

Poulan 532127783

Pulley Idler V Groove Plastic
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Poulan 532123789

Bellcrank Asm Clutch (AYP part number)

$

$

Not available

49

Poulan 532123205

Retainer Belt Style Spring (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 874760624

Bolt Hex Hd 3/8-16unc X 1-1/2 (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Poulan 873680600

Nut Crownlock 3/8-16 Unc
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

52

Poulan 819131316

Washer 13/32 X 13/16 X 16 Ga (AYP part number)

$4.99

$

In Stock, Qty 5

0

53

Poulan 532105710

Link Clutch 7 66 (AYP part number)
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

54

Poulan 876020412

Pin Cotter 1/8 X 3/4 Cad (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 532105709

Spring Return Clutch 6 75 (AYP part number)

$11.99

$

In Stock, Qty 6

0

56

Poulan 876020412

Pin Cotter 1/8 X 3/4 Cad (AYP part number)
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

57

Poulan 532130801

V-Belt Ground Drive 95 25 42" (AYP part number)
(Superseded to 532138255)

$39.99

$

In Stock, only 2 left!

0

58

Poulan 532127274

Keeper Belt RH LT Pnt/zinc 16g (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

59

Poulan 532140312

Keeper Belt Chassis Span Ctr (AYP part number)
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

60

Poulan 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Poulan 532124872

Cover Pedal Blk Round (AYP part number)
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Poulan 532140189

Engine Pulley LT/YT (AYP part number)

$42.99

$

Usually ships in 3-10 days

0

64

Poulan 871170768

Bolt, Hex 7/16-20 x 4-1/4 (AYP part number)
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

65

Poulan 810040700

Washer Lock Hvy Hlcl Spr 7/16 (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Poulan 532121218

Keeper Belt Engine LH LT (AYP part number)

$

$

Not available

67

Poulan 874760616

Bolt Fin Hex 3/8-16unc X 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

68

Poulan 819131312

Washer 13/32 X 13/16 X 12 Ga (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

69

Poulan 873680600

Nut Crownlock 3/8-16 Unc
(Superseded to 596322601)

$3.99

$

In Stock, Qty 9

0

70

Poulan 532105730

Keeper Belt Engine BZP Zinc (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

74

Poulan 532109502

Spacer Split (AYP part number)

$

$

Not available

75

Poulan 532121749

Washer 25/32 X 1 1/4 X 16 Ga (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

76

Poulan 812000001

E-ring #5133-75 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

77

Poulan 532123583

Key Square 2 0 X 1845/ 1865 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

78

Poulan 532121748

Washer 25/32 X 1-5/8 X 16 Ga (AYP part number)

$4.99

$

In Stock, Qty 10

0

80

Poulan 532131487

Arm Shift Transaxle (AYP part number)
(Superseded to 131487)

$

$

Not available

81

Poulan 532136933

Shaft Asm Cross 20"t 42"deck (AYP part number)
(Superseded to 532161077)

$

$

Not available

82

Poulan 532123782

Spring Torsion T/a (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

83

Poulan 819171216

Washer 17/32 X 3/4 X 16 Ga (AYP part number)
(Superseded to 19171216)

$2.99

$

Usually ships in 3-10 days

0

84

Poulan 532132183

Rod Tie Shift Adj Ball (AYP part number)

$60.99

$

Usually ships in 3-10 days

0

85

Poulan 873530400

Nut Nylock 1/4-28 (AYP part number)
(Superseded to 873610400)

$

$

Not available

86

Poulan 532071208

Bushing Rod Strg 629/632 Id (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

87

Poulan 819212016

Washer 21/32 X 1-1/4 X 16 Ga (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

88

Poulan 812000008

Ring Klip #5304-62 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 532139991

Console Shift 6sp W/ign LT (AYP part number)

$

$

Not available

90

Poulan 532124346

Nut Self-thd wsh-hd 1/4 zinc (AYP part number)

$7.99

$

In Stock, only 1 left!

0

95

Poulan 817490612

Screw Thdrol 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

100

Poulan 819111216

Washer 11/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

107

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

108

Poulan 873680500

Nut Crownlock 5/16 - 18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

109

Poulan 532137141

Bracket Asm. Clutch (AYP part number)
(Superseded to 137141)

$

$

Not available

110

Poulan 532137140

Clutch Electric (AYP part number)
(Superseded to 532142600)

$

$

Not available

111

Poulan 819111012

Washer 11/32 x 5/8 x 12 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

112

Poulan 532126197

Washer 1-1/2 OD X 15/32 ID X .250 (AYP part number)

$8.99

$

In Stock, only 3 left!

0
