PP 15H42K - Poulan Lawn Tractor (1995) ELECTRICAL Parts Diagram

Lawn Tractor

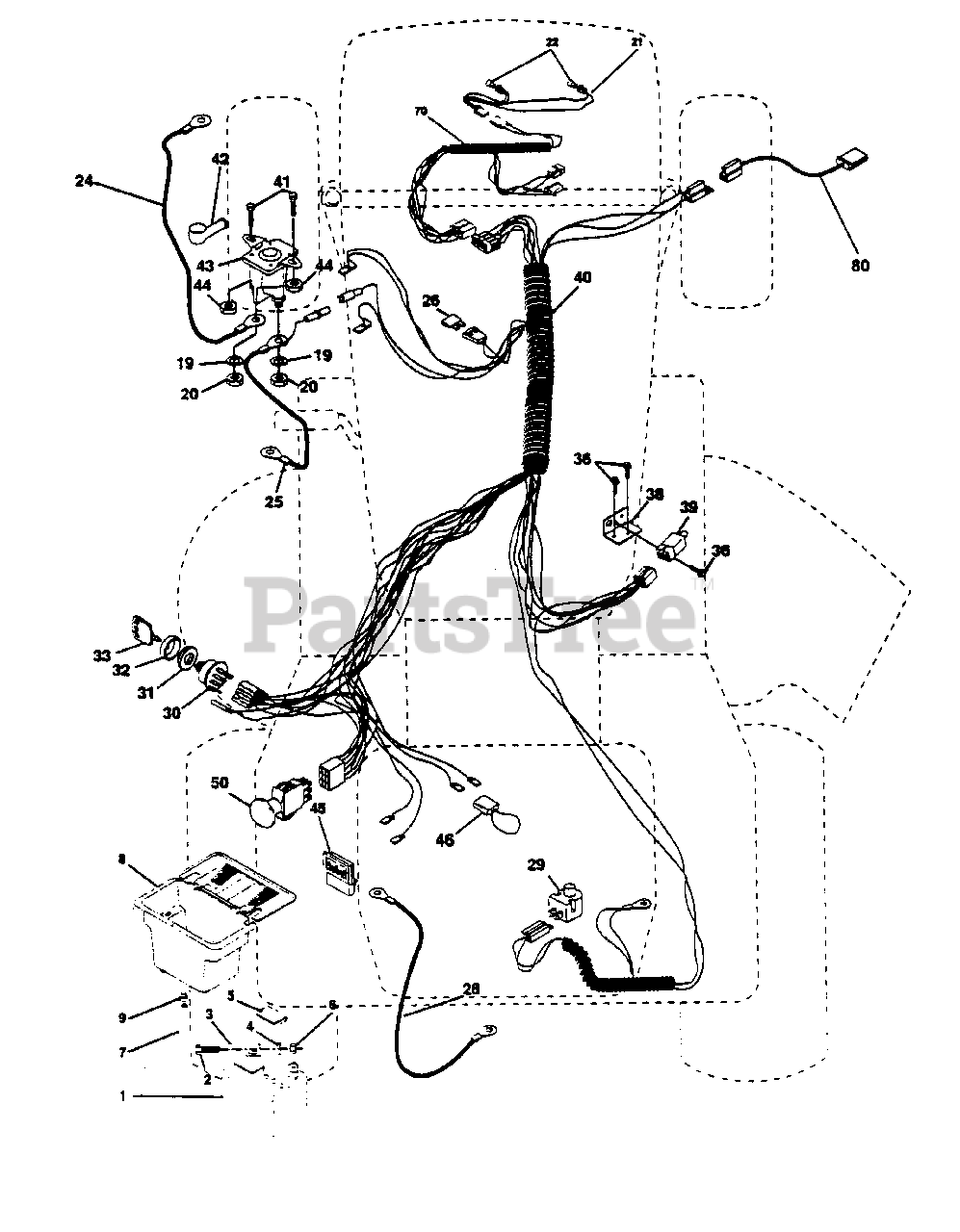

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 532121265

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 874760412

Bolt Hex Hd 1/4-20unc X 3/4

$7.49

$

In Stock, only 1 left!

0

3

Electrolux/AYP 819091016

Washer 9/32 X 5/8 X 16 Ga
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

4

Electrolux/AYP 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 532121264

Caps Battery 20/25/30 AMP

$

$

Not available

6

Electrolux/AYP 873220400

Nut Fin Hex 1/4-20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 532109238

Tube Plastic 12"

$

$

Not available

8

Electrolux/AYP 532144940

Battery Case W/2 Holes W/Btry
(Superseded to 532156417)

$

$

Not available

9

Electrolux/AYP 532109596

Clamp Hose Olive

$4.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 810090400

Washer Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 873350400

Nut Jam Hex 1/4-20 Unc
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 532136850

Hamess Asm Light w/4152J

$

$

Not available

22

Electrolux/AYP 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532124780

Cable Battery 6 Ga 11"red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532146147

Cable Battery 6 Ga 44"red W/16 Wire

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532108824

Fuse 30 AMP Auto Green

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532124773

Cable Ground 6 Ga 12"black
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532121305

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 532140301

Switch Ign 4 Pos.

$37.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 532124211

Nut Ignition

$5.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 532141226

Cover Sw Key Blk 1 25 Text SLT

$5.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532122147

Key Ign

$

$

Not available

36

Electrolux/AYP 817021008

Screw Tap Hex #10-24unc X 1/2

$4.99

$

In Stock, Qty 14

0

38

Electrolux/AYP 532108236

Bracket Switch Clutch

$2.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532109553

Switch Intlk Clutch Gry 4 Term
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532146059

Hamess Ignition Elec HM LT P/L
(Superseded to 532151215)

$

$

Not available

41

Electrolux/AYP 871110408

Bolt Fin Hex 1/4-20 x 1/2
(Superseded to 71110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

44

Electrolux/AYP 873640400

Nut Keps Hex 1/4-20 Unc

$

$

Not available

45

Electrolux/AYP 532121433

Ammeter rectangular
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 532141940

Protection Wire Loop (Hourmeter)

$7.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532140404

Switch PTO 3 pdt. delta
(Superseded to 532154959)

$28.99

$

In Stock, only 4 left!

0

70

Electrolux/AYP 532141164

Hamess Eng. P/L B&S 140 HV Du HL

$

$

Not available

80

Electrolux/AYP 532146685

Hamess Clutch EVX

$26.99

$

In Stock, only 2 left!

0
