PP 15H42K B - Poulan Lawn Tractor (1995) SEAT Parts Diagram

Lawn Tractor

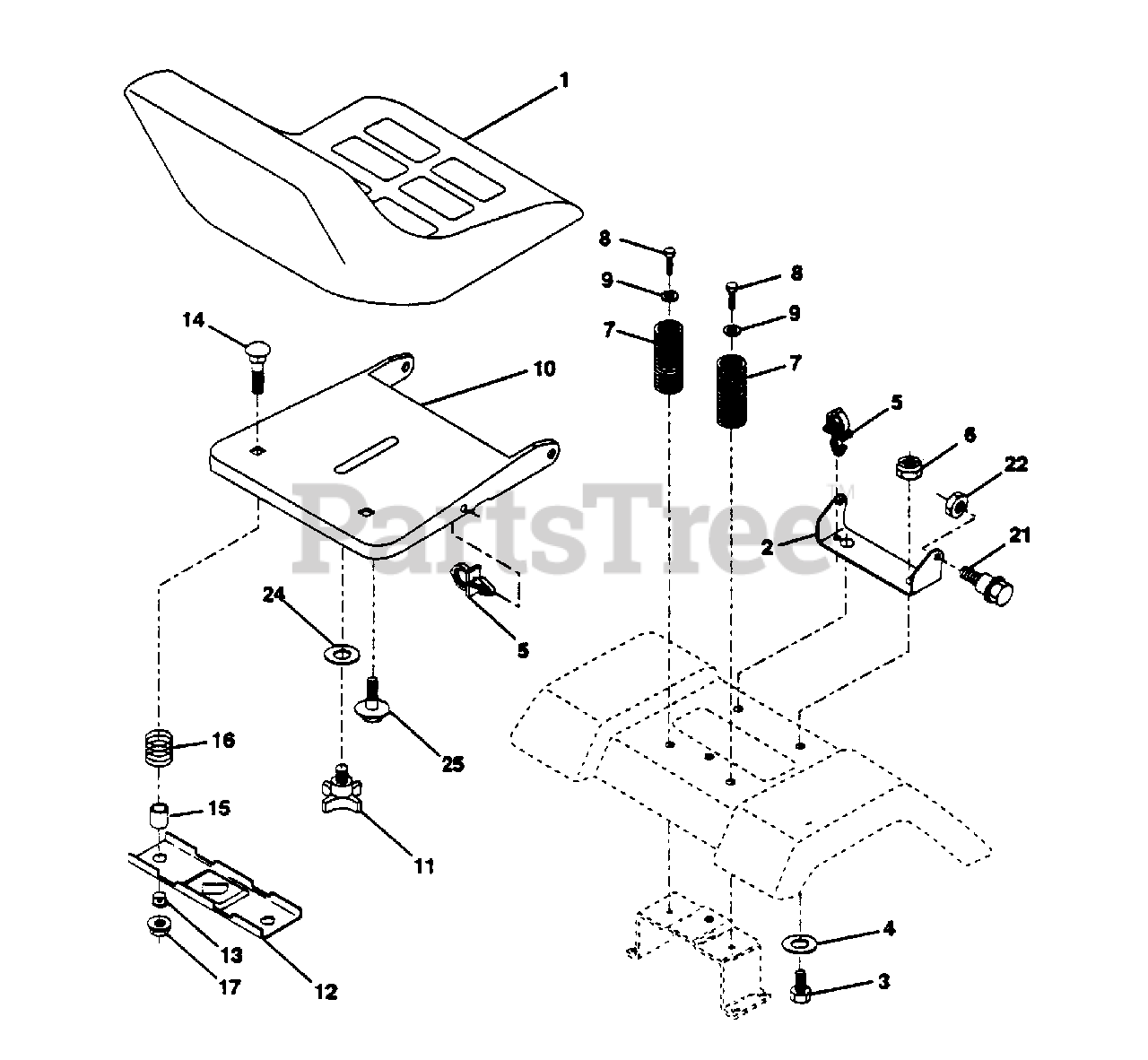

SEAT Parts Diagram

  • Title
1

Electrolux/AYP 532127429

Seat V550 Blk/blk Std
(Superseded to 532140121)

$

$

Not available

2

Electrolux/AYP 532140551

Bracket Pivot Seat 8 720

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 874760616

Bolt Fin Hex 3/8-16unc X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 819131610

Washer 13/32 X 3/4 X 10 Ga

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 532145006

Clip Push-In Hinged

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 873800600

Nut Lock Hex w/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532124181

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 817490616

Screw Thdrol 3/8-16 X 1 Ty-tt
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 819131614

Washer 13/32 X 1 X 14 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532140552

Pan Seat
(Superseded to 532155925)

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532120068

Knob Seat 1/2-13unc Blk
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 532121246

Bracket Mounting Switch
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 872050411

Bolt Rdhd Sht Nk 1/4-20x1-3/8

$

$

Not available

15

Electrolux/AYP 532121249

Spacer Split 28x 96 Yel Zinc

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 532123740

Spring Cprsn 1 27 Blk Pnt

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532123976

Nut Lock 1/4 Lge Flg Gr 5 Zinc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

21

Electrolux/AYP 532139888

Bolt Shoulder 5/16-18 Type T.T.T.R.

$6.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 873680500

Nut Crownlock 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 819171912

Washer 17/32 X 1-3/16 X 12 Ga

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 532127018

Bolt Shoulder 5/16-18 X 62

$7.49

$

Usually ships in 3-10 days

0
