PP 15H42K B - Poulan Lawn Tractor (1995) MOWER DECK Parts Diagram

Lawn Tractor

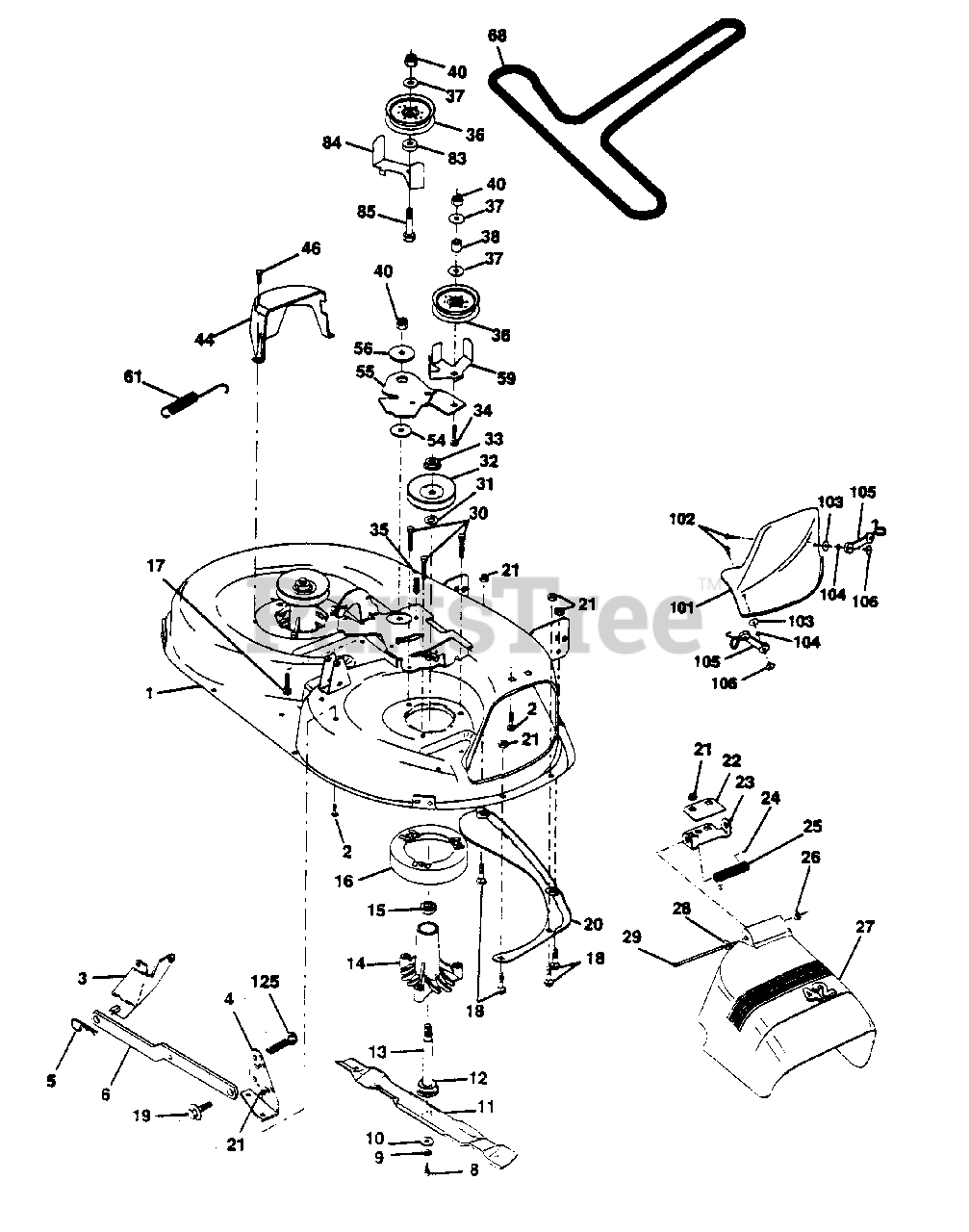

MOWER DECK Parts Diagram

  • Title

1

Electrolux/AYP 532144393

Deck Asm Mower 42"
(Superseded to 532164961)

$319.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 872140506

Bolt Rdhd Sqnk 5/16-18unc X3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 532138017

Bracket Asm Fr Sway Bar

$12.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532138440

Bracket Asm Deck Sway Bar 42"

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532124670

Retainer Spring
(Superseded to 532085902)

$

$

Not available

6

Electrolux/AYP 532130832

Arm Suspension Rear
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 532850857

Bolt 3/8-24x1 25 Gr8 Patched

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 810030600

Washer Lock Hvy 3/8 Unplated
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532140296

Washer Hard Blade Mower Vented

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 532134149

Blade

$

$

Not available

12

Electrolux/AYP 532129895

Bearing Ball #6204 (Mandrel)
(Superseded to 738220419)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 532128774

Housing Mandrel Vented(machd)

$34.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532110485

Bearing Ball Mandrel

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 532140329

Stripper Mower Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 872110618

Bolt Rdhd Sqnk 3/8-16 X 2-1/4

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 872140505

Bolt Rdhd Sqnk 5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532132827

Bolt Shoulder 5/16 - 18

$

$

Not available

20

Electrolux/AYP 532136888

Baffle Vortex 42
(Superseded to 532159770)

$

$

Not available

21

Electrolux/AYP 873680500

Nut Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 532134753

Stiffener Bracket 42" deck
(Superseded to 532177563)

$

$

Not available

23

Electrolux/AYP 532131267

Bracket Deflector Mower 42"
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 532105304

Cap Sleeve 80x 112 Blk Mower

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 532123713

Spring Torsion Deflector 2 52

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 532110452

Nut Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532130968

Shield Deflector Mower 42" Blk"

$39.99

$

In Stock, Qty 9

0

28

Electrolux/AYP 819111016

Washer 11/32 X 5/8 X 16 Ga
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532131491

Rod Hinge 42" 6 75 Wlg
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 532138776

Screw Thdrol Hex Head
(Superseded to 532157722)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 532129963

Washer Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 532129861

Pulley Mandrel 42"
(Superseded to 532153535)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532137266

Nut Flg Top Lock Cntr B 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 872110622

Bolt Rdhd 3/8-16uncx1-3/4 Gr5

$4.99

$

In Stock, Qty 10

0

35

Electrolux/AYP 532133835

Fastner Christmas Tree

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532131494

Pulley Idler Flat 3 060
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Electrolux/AYP 819131316

Washer 13/32 X 13/16 X 16 Ga

$4.99

$

In Stock, Qty 5

0

38

Electrolux/AYP 532132823

Spacer Spring Stop Idler

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 873680600

Nut Crownlock 3/8-16 UNC
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

44

Electrolux/AYP 532140088

Guard Mandrel LH Black

$34.99

$

In Stock, Qty 10

0

46

Electrolux/AYP 532137729

Screw Hex Thd Cut 1/4-20x5/8 T

$4.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 532133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532140084

Arm Idler 42" mower LT/YT
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

56

Electrolux/AYP 532122052

Spacer Retainer Pm Mower
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 532141043

Guard TUV Idler

$

$

Not available

61

Electrolux/AYP 532131950

Spring Ext. Elect. Clutch 38/42"

$9.49

$

In Stock, Qty 5

0

68

Electrolux/AYP 532144200

V-Belt Mower

$45.99

$

In Stock, Qty 5

0

83

Electrolux/AYP 532120958

Washer Sintered

$

$

Not available

84

Electrolux/AYP 532144394

Keeper Belt Idler Fixed
(Superseded to 532156084)

$6.49

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 872140618

Bolt Rdhd Sqnk 3/8-16 x 2-1/4
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

101

Electrolux/AYP 532136418

Cover Mulching 42" Black

$

$

Not available

102

Electrolux/AYP 871161010

Screw
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 819061216

Washer #10

$4.99

$

Usually ships in 3-10 days

0

104

Electrolux/AYP 810071000

Washer Lock #10

$4.99

$

In Stock, Qty 11

0

105

Electrolux/AYP 532130758

Latch Asm Bagger
(Superseded to 532160793)

$

$

Not available

106

Electrolux/AYP 532125004

Nut Weld .327/.304 # 10-24
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

125

Electrolux/AYP 876020816

Pin Cotter 1/4 x 1 plated

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 532130794

Mandrel Asm Service

$56.99

$

In Stock, only 4 left!

0

Electrolux/AYP 532145452

Deck Serv 42" MB Elect TP
(Superseded to 532176207)

$789.99

$

Usually ships in 3-10 days

0
