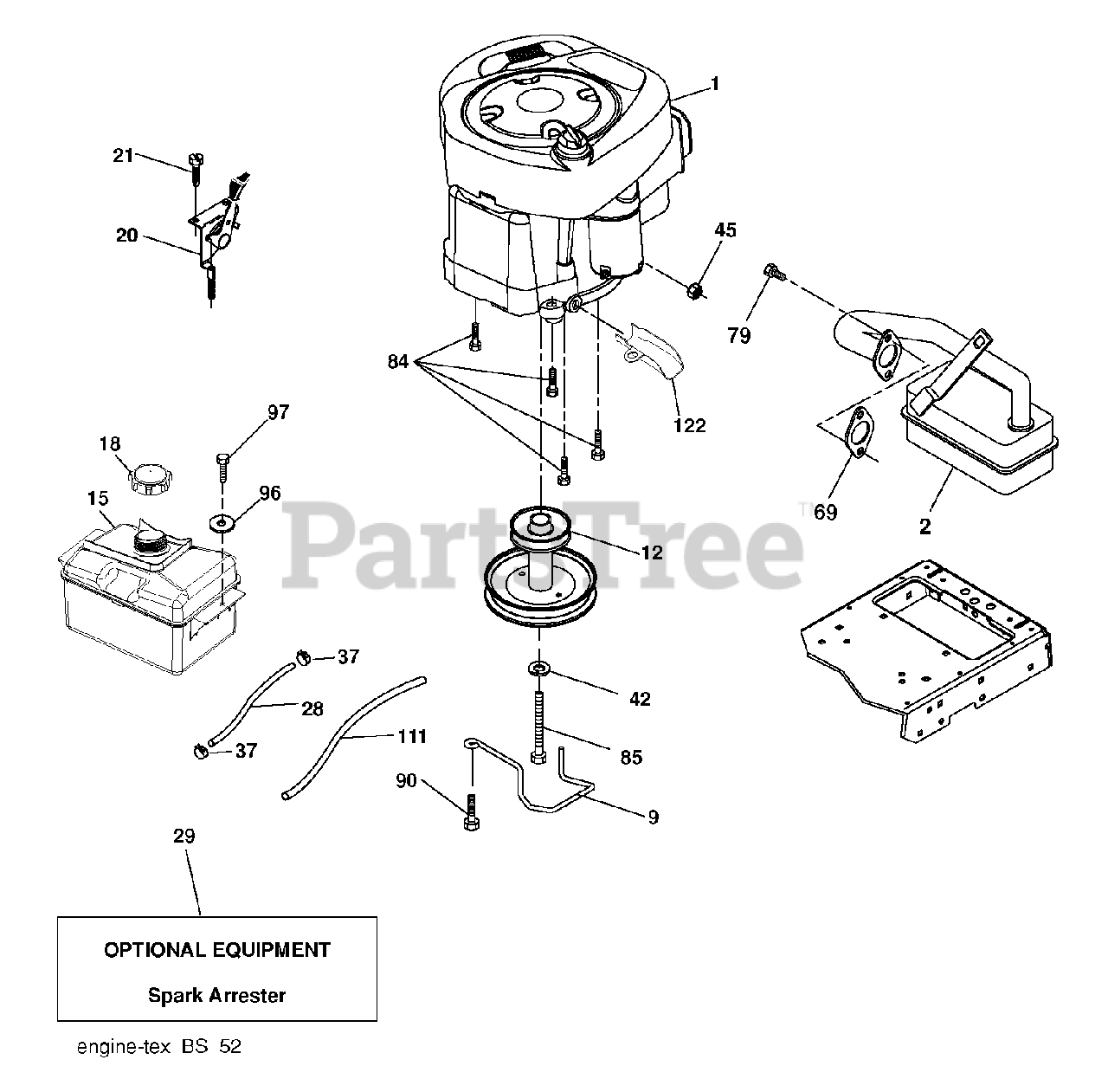

PP 155H42 (960420182-00) - Poulan Pro Lawn Tractor (2015-08) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

1

Poulan 000000000

Note: Engine B S 31R707-0001-G1 (585926001)

$

$

Not available

2

Poulan 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$45.99

$

In Stock, only 3 left!

0

9

Poulan 584908001

KEEPER BELT ENGINE
(Superseded to 596501502)

$11.99

$

In Stock, Qty 5

0

12

Poulan 586729001

Engine Pulley

$40.99

$

In Stock, only 1 left!

0

15

Poulan 532433003

TANK.ASM.1.5GAL.FRT.W/CAP.EPA

$169.99

$

Usually ships in 3-10 days

0

18

Poulan 581176101

CAP.FUEL.2 WAY VENT

$53.99

$

In Stock, only 1 left!

0

20

Poulan 532170545

(Superseded to 583045801)

$40.99

$

Usually ships in 3-10 days

0

21

Poulan 817240408

SCREW

$7.49

$

Usually ships in 3-10 days

0

28

Poulan 532401137

LINE.FUEL.20"FRONT.EMI

$14.99

$

Usually ships in 3-10 days

0

29

Poulan 532137180

KIT.SPARK ARRESTOR(392390 B&S)

Note: FLAT SCRN

$182.99

$

In Stock, only 1 left!

0

37

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

42

Poulan 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Poulan 873510400

NUT
(Superseded to 873640400)

Note: 7351040

$

$

Not available

69

Poulan 532165291

(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

79

Poulan 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

84

Poulan 817060620

SCREW.3/8-16

Note: 1706062

$7.49

$

In Stock, Qty 11

0

85

Poulan 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

90

Poulan 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

96

Poulan 819091416

WASHER

Note: 1909141

$6.49

$

Usually ships in 3-10 days

0

97

Poulan 817670412

SCREW HEXWSHR 1/4-20X3/4

Note: 1767041

$6.49

$

Usually ships in 3-10 days

0

111

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$11.99

$

In Stock, only 1 left!

0

122

Poulan 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0
