PP 14H44 A - Poulan Pro Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

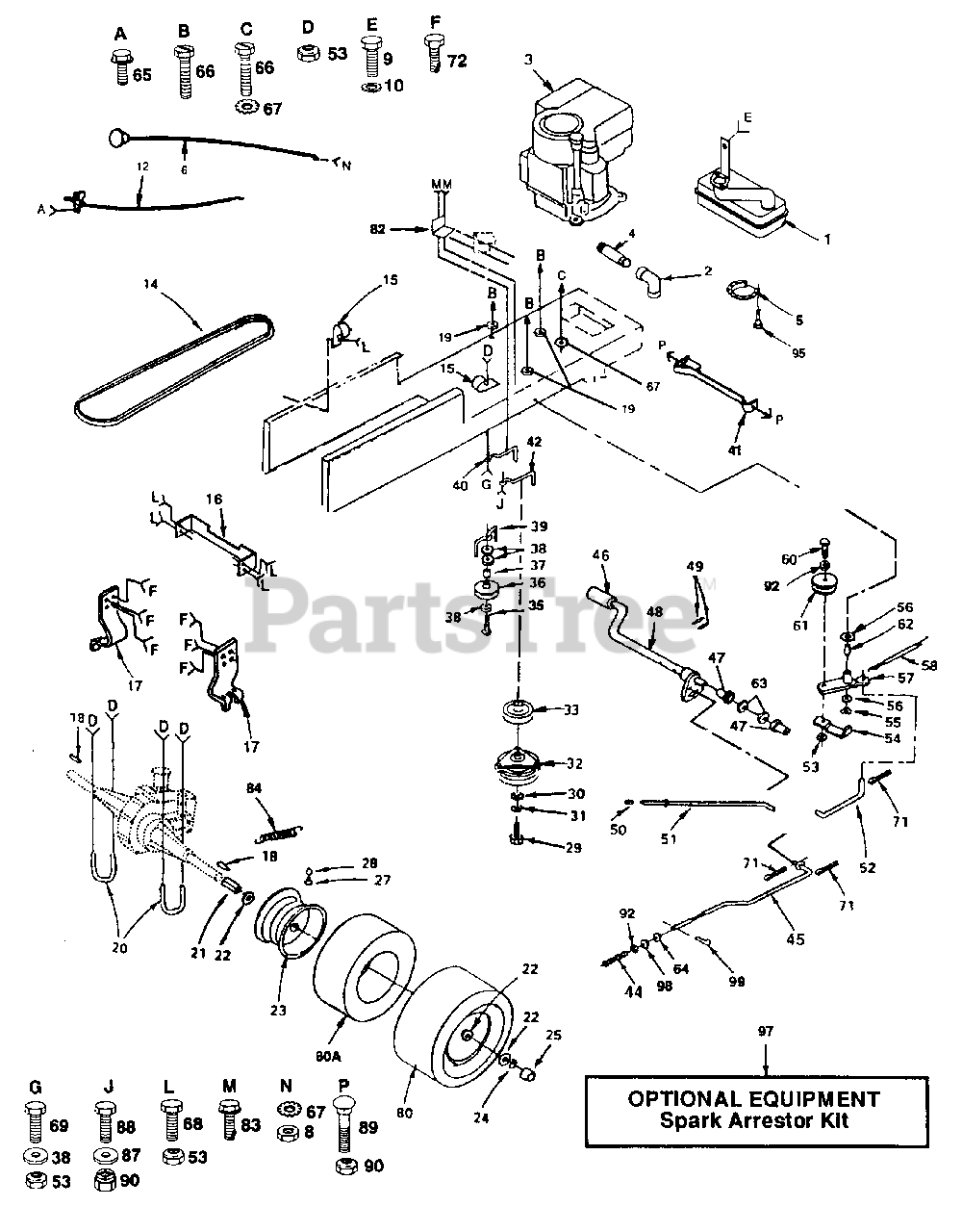

DRIVE Parts Diagram

  • Title

1

Poulan 532124196

Muffler (AYP part number)

$

$

Not available

2

Poulan 813200300

Elbow, STD 90 3/8-18NPT (AYP part number)
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

3

Poulan 532127527

Engine

$

$

Not available

4

Poulan 813280336

Nipple, Pipe (AYP part number)

$

$

Not available

5

Poulan 532101326

Deflector, Exhaust (AYP part number)
(Superseded to 101326L)

$

$

Not available

6

Poulan 532122926

Control, Choke (AYP part number)
(Superseded to 532132781)

$

$

Not available

8

Poulan 873610600

Nut, Fin Hex 3/8-24 UNF (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 874760508

Bolt, Hex HD 5/16-18 UNC X 1/2 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 810040500

Washer, Lock Hvy. Helical Spring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 532121275

Control, Throttle (AYP part number)

$

$

Not available

14

Poulan 532123461

V-Belt, Drive (AYP part number)

$

$

Not available

15

Poulan 532124996

Clip (AYP part number)
(Superseded to 532002751)

$

$

Not available

16

Poulan 532121187

Bracket, Mounting, Hydro T/A (AYP part number)

$

$

Not available

17

Poulan 532126649

Bracket, Transaxle (AYP part number)

$

$

Not available

18

Poulan 532123583

Key, Square 1/4 x 2 (AYP part number)

$4.99

$

In Stock, Qty 7

0

19

Poulan 810040500

Washer, Lock, Hvy. Hel. Spring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 532121189

U-Bolt, 3/8-16 x 2-3/4 (AYP part number)

$

$

Not available

21

Poulan 532121199

Spacer, Split (AYP part number)

$

$

Not available

22

Poulan 532121748

Washer, 1-1/32 x 1-5/8 x 16 Ga, (AYP part number)

$4.99

$

In Stock, Qty 20+

0

23

Poulan 532124999

Rim, Rear (AYP part number)
(Superseded to 532106108)

$145.99

$

Usually ships in 3-10 days

0

24

Poulan 812000001

E-Ring (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

25

Poulan 532104757

Cap, Axle (AYP part number)

$4.99

$

In Stock, Qty 20+

0

27

Poulan 532065139

Stem, Valve (AYP part number)

$9.99

$

In Stock, only 3 left!

0

28

Poulan 532059192

Cap, Valve (AYP part number)

$7.49

$

In Stock, Qty 9

0

29

Poulan 532125005

Bolt, Fin M10 X 1.5 X 100 mm (AYP part number)
(Superseded to 747810100)

$

$

Not available

30

Poulan 532126197

Washer, 1-1/2 OD X 15/32 ID X .250 (AYP part number)

$8.99

$

In Stock, only 3 left!

0

31

Poulan 810040700

Washer, Lock 7/16 (AYP part number)
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

32

Poulan 532108218

Clutch, Electric (AYP part number)
(Superseded to 532142600)

$

$

Not available

33

Poulan 532109841

Pulley, Engine (AYP part number)
(Superseded to 532136905)

$42.99

$

Usually ships in 3-10 days

0

35

Poulan 874760644

Bolt, Hex 3/8-16 x 2-3/4 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 532004859

Idler, Flat (AYP part number)
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

37

Poulan 532004470

Spacer (AYP part number)
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 819131312

Washer, 13/32 x 13/16 x 12 Ga. (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

39

Poulan 532109070

Keeper, Belt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532121218

Keeper, Belt, Engine, L.H. (AYP part number)

$

$

Not available

41

Poulan 532109169

Clutch Retainer Assembly (AYP part number)
(Superseded to 532109172)

$

$

Not available

42

Poulan 532105730

Belt, Keeper, Engine, R.H. (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 532106888

Spring, Rod, Brake (AYP part number)
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

45

Poulan 532121200

Rod, Brake (AYP part number)
(Superseded to 532132654)

$

$

Not available

46

Poulan 532124872

Cover, Pedal (AYP part number)
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 532120183

Bearing, Nylon (AYP part number)

$6.99

$

In Stock, only 4 left!

0

48

Poulan 532122424

Shaft, Foot Pedal, Asm. (AYP part number)

$

$

Not available

49

Poulan 532001572

Pin, Roll, 3/16 x 1 (AYP part number)
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

50

Poulan 532071673

Cap, Plunger (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

51

Poulan 532125637

Rod, Brake, Park (AYP part number)
(Superseded to 532133261)

$

$

Not available

52

Poulan 532105710

Link, Clutch (AYP part number)
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

53

Poulan 873680600

Locknut, 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

54

Poulan 532123205

Retainer, Belt (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 812000039

Klip Ring (AYP part number)

$6.49

$

In Stock, Qty 7

0

56

Poulan 532110812

Washer, Hardened (AYP part number)
(Superseded to 110812X)

$

$

Not available

57

Poulan 532123789

Arm, Asm, Idler (AYP part number)

Note: (Incl. Key No. 62)

$

$

Not available

58

Poulan 532105709

Spring, Return, Clutch (AYP part number)

$11.99

$

In Stock, only 2 left!

0

60

Poulan 874760624

Bolt, Hex, 3/8-16 x 1-1/2 (AYP part number)
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

61

Poulan 532123766

Idler, V. Grove (AYP part number)
(Superseded to 532127783)

$37.99

$

In Stock, only 1 left!

0

62

Poulan 532105706

Bearing (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

63

Poulan 819211616

Washer, 21/32 x 1 x 16 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

64

Poulan 873800600

Nut (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 817720410

Screw, Hex Thread Cut 1/4-20 x 5/8 (AYP part number)
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

66

Poulan 532125006

Screw, M8 X 1.25 X 25mm

$

$

Not available

67

Poulan 811050600

Washer, Lock Ext Tooth 3/8 (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

68

Poulan 874760612

Bolt, Hex 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

69

Poulan 874760616

Bolt, Hex 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

71

Poulan 876020412

Pin, Cotter, 1/8 x 3/4 (AYP part number)
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

72

Poulan 817490612

Screw, Hex, Thdrol 3/8-16 X 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

80

Poulan 532106268

Tire (AYP part number)
(Superseded to 532420531)

$120.99

$

Usually ships in 3-10 days

0

80A

Poulan 532007152

Tube (AYP part number)

$74.99

$

Usually ships in 3-10 days

0

82

Poulan 532108236

Bracket, Switch (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

83

Poulan 817021008

Screw, Tap. Hex Hd, #10-24 x 1/2 Type T (AYP part number)

$4.99

$

In Stock, Qty 14

0

84

Poulan 532110422

Spring, Brake Return (AYP part number)
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

87

Poulan 819111212

Washer, 11/32 X 3/4 X 12 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

88

Poulan 874760516

Bolt, Hex Hd. 5/16-18 X 1 (AYP part number)
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 872140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

90

Poulan 873680500

Locknut 5/16- 18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

92

Poulan 819131316

Washer, 13/32 X 13/16 X 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 5

0

95

Poulan 817030808

Screw. Spider Lock #8 x 1/2 (AYP part number)
(Superseded to 817030814)

$

$

Not available

97

Poulan 532122083

Spark Arrestor (AYP part number)

$

$

Not available

98

Poulan 873350600

Nut, Hex Jam 3/8 X 16 UNC (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

99

Poulan 532124788

Clip, Hairpin (AYP part number)
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0
