PP 14H44 A - Poulan Pro Lawn Tractor CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

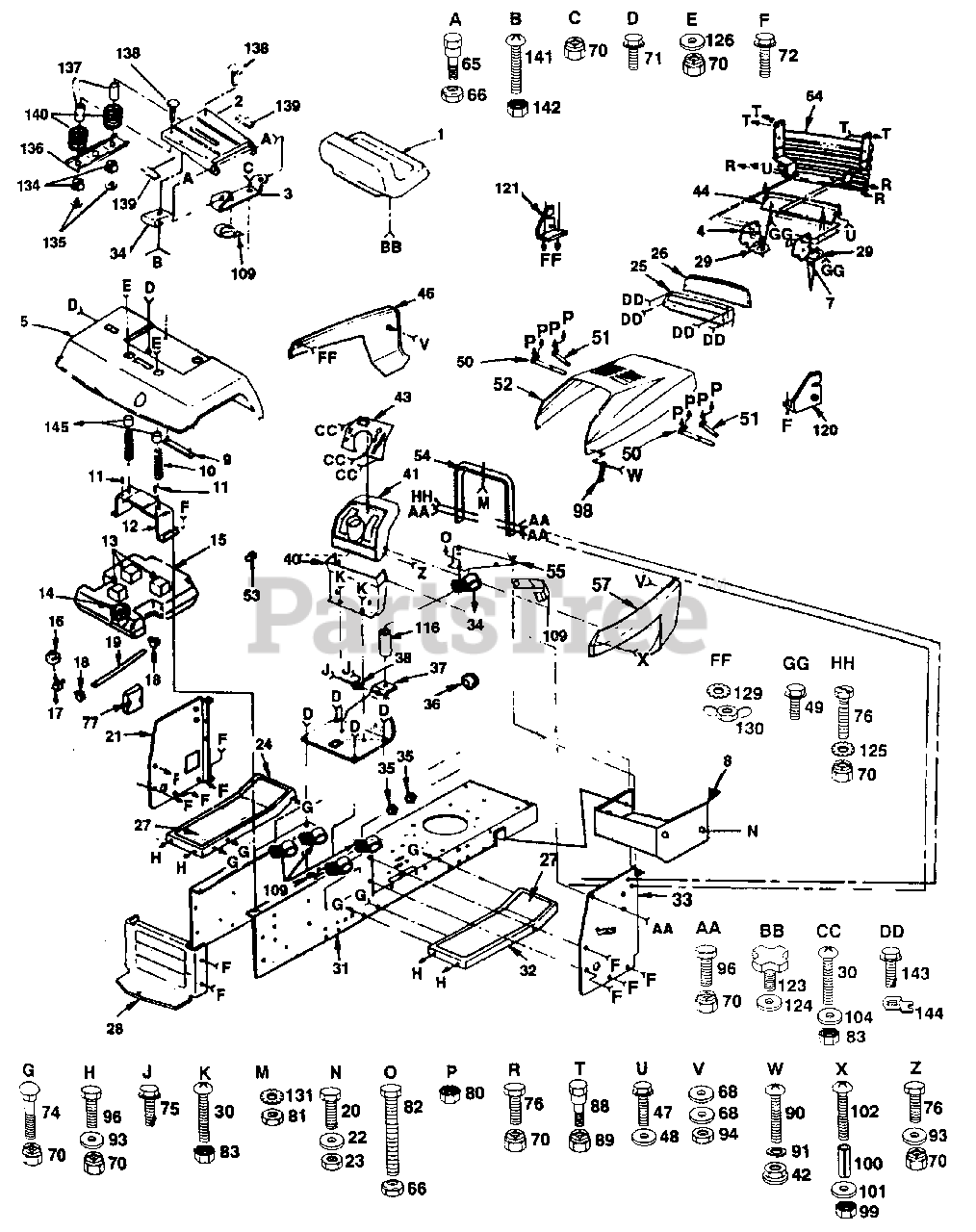

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Poulan 532127429

Seat (AYP part number)
(Superseded to 532140121)

$

$

Not available

2

Poulan 532124294

Pan, Seat (AYP part number)

$

$

Not available

3

Poulan 532126656

Bracket, Pivot, Seat (AYP part number)

$

$

Not available

4

Poulan 532110855

Bracket, Asm. L.H. Pivot (AYP part number)

$

$

Not available

5

Poulan 532124998

Fender (AYP part number)

$

$

Not available

7

Poulan 532110854

Bracket, Asm. R.H. Pivot (AYP part number)

$

$

Not available

8

Poulan 532123665

Shield, Heat Front (AYP part number)

$

$

Not available

9

Poulan 532105511

Strap, Fender (AYP part number)
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

10

Poulan 532124181

Spring, Compression.Seat (AYP part number)
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

11

Poulan 532105531

Nut, Push (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

12

Poulan 532105509

Bracket, Fender (AYP part number)
(Superseded to 532137113)

$14.99

$

Usually ships in 3-10 days

0

13

Poulan 532006431

Pad, Spacer (AYP part number)

$

$

Not available

14

Poulan 532123549

Cap, Fuel (AYP part number)
(Superseded to 532158990)

$26.99

$

Usually ships in 3-10 days

0

15

Poulan 532106020

Tank, Fuel (AYP part number)

$

$

Not available

16

Poulan 532003645

Bushing (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 532124951

Stem, Tank, Fuel (AYP part number)
(Superseded to 532008710)

$

$

Not available

18

Poulan 532123487

Clamp, Hose (AYP part number)

$7.49

$

In Stock, only 4 left!

0

19

Poulan 532124953

Line, Fuel (AYP part number)
(Superseded to 532008542)

$

$

Not available

20

Poulan 874760412

Bolt, Hex Hd. 1/4-20 UNC X 3/4 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

21

Poulan 532124118

Panel, Dash, L.H. (AYP part number)
(Superseded to 124118X)

$

$

Not available

22

Poulan 819091416

Washer 9/37 X 7/8 X 16 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532126850

Nut, Self Retaining, 1/4-20 (AYP part number)

$

$

Not available

24

Poulan 532124888

Footrest, L.H. (AYP part number)

$

$

Not available

25

Poulan 534124939

Bezel, Assembly

$

$

Not available

26

Poulan 532106395

Lens (AYP part number)

$

$

Not available

27

Poulan 532108256

Pad, Footrest (AYP part number)

$

$

Not available

28

Poulan 532121306

Drawbar (AYP part number)
(Superseded to 532137275)

$

$

Not available

29

Poulan 819111212

Washer, 11/32 X 3/4 X 12 Ga. (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

30

Poulan 874180512

Screw, Cr. Thd. 5/16-18 x 3/4 (AYP part number)

$

$

Not available

31

Poulan 532127166

Chassis (AYP part number)

$

$

Not available

32

Poulan 532124889

Footrest, R.H. (AYP part number)

$

$

Not available

33

Poulan 532110828

Panel, Dash, R.H. (AYP part number)

$

$

Not available

34

Poulan 532004171

Clip, Insulated (AYP part number)
(Superseded to 532124967)

$

$

Not available

35

Poulan 532110436

Grommet, Split (AYP part number)
(Superseded to 532009151)

$

$

Not available

36

Poulan 532124934

Grommet (AYP part number)

$

$

Not available

37

Poulan 532124766

Saddle (AYP part number)
(Superseded to 532121195)

$

$

Not available

38

Poulan 532124720

Bushing, Steering (AYP part number)
(Superseded to 532001554)

$7.99

$

In Stock, only 1 left!

0

40

Poulan 532104805

Dash Assembly, Lower (AYP part number)

$

$

Not available

41

Poulan 532124252

Dash (AYP part number)
(Superseded to 532140398)

$

$

Not available

42

Poulan 532125004

Nut, Weld (AYP part number)
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

43

Poulan 532124769

Plate, Dash (AYP part number)

$

$

Not available

44

Poulan 532124978

Strap, Grill (AYP part number)

$

$

Not available

46

Poulan 532124986

Panel, Side, L.H. (AYP part number)

$

$

Not available

47

Poulan 817490412

Screw, Hex Wsh. Thd. Cut 1/4-20 X 3/4 (AYP part number)
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

48

Poulan 819091216

Washer 9/32 X 3/4 X 16 Ga. (AYP part number)
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

49

Poulan 817490512

Screw, Hex Wsh Thdrol 5/16-18 X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

50

Poulan 532106784

Strap Assembly, Hinge, Rear (AYP part number)

$

$

Not available

51

Poulan 532104618

Strap Assembly, Hinge, Front (AYP part number)

$

$

Not available

52

Poulan 532124976

Hood (AYP part number)

$

$

Not available

53

Poulan 532005479

Plug, Button (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

54

Poulan 532110829

Support, Dash (AYP part number)

$

$

Not available

55

Poulan 532106965

Plate, Support, Battery (AYP part number)

$

$

Not available

57

Poulan 532124989

Panel, Side R.H. (AYP part number)

$

$

Not available

64

Poulan 532122100

Grill Assembly (AYP part number)
(Superseded to 122100X)

$

$

Not available

65

Poulan 532105529

Bolt, Shoulder 5/16-18 (AYP part number)
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

66

Poulan 873680500

Nut, Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

68

Poulan 819091216

Washer 9/32 X 3/4 X 16 Ga. (AYP part number)
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

70

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

71

Poulan 817490608

Screw, Hex Washer Thread Rolling 3/8-16 x 1/2 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

72

Poulan 817490612

Screw, Hex Washer Thread Rolling 3/8-16 x 3/4 (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

74

Poulan 872140606

Bolt, Carriage 3/8-16 x 3/4 (AYP part number)

$

$

Not available

75

Poulan 817431008

Screw, Hex Self Tapping #10-16 x 1/2 (AYP part number)
(Superseded to 98000165)

$2.99

$

Usually ships in 3-10 days

0

76

Poulan 874760616

Bolt, Hex 3/8-16 x 1 (AYP part number)
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

77

Poulan 532121794

Cover, Access (AYP part number)
(Superseded to 121794X)

$

$

Not available

80

Poulan 873510400

Nut, Hex Keps (AYP part number)
(Superseded to 873640400)

$

$

Not available

81

Poulan 873220400

Nut, Hex 1/4-20 (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

82

Poulan 874760532

Bolt, Hex 5/16-18 x 2 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

83

Poulan 873510500

Nut, Keps 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

88

Poulan 532123481

Bolt, Shoulder 1/4-20 (AYP part number)
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

89

Poulan 873680400

Crownlock Nut 1/4-20 (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

90

Poulan 874191008

Screw, Pan Hd. Mach. #10-24 1/2 (AYP part number)
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

91

Poulan 810071000

Washer, Lock #10 (AYP part number)

$4.99

$

In Stock, Qty 11

0

93

Poulan 819131312

Washer 13/32 x 13/16 x 12 Ga. (AYP part number)
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

94

Poulan 873220400

Nut, Fin Hex 1/4-20 UNC (AYP part number)
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

96

Poulan 874760612

Bolt, Hex 3/8-16 x 3/4 (AYP part number)

$4.99

$

In Stock, only 3 left!

0

98

Poulan 532109808

Latch, Hood (AYP part number)

$6.99

$

In Stock, Qty 14

0

99

Poulan 873731000

Nut, Keps 10-24 (AYP part number)
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

100

Poulan 532007206

Spacer, Split 10 x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 6

0

101

Poulan 819070818

Washer 7/32 x 1/2 x 18 Ga. (AYP part number)
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

102

Poulan 874981020

Screw, Mach. Cr. Pan 10-24 x 1-1/4 (AYP part number)
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

104

Poulan 819111116

Washer 11/32 x 11/16 x 16 Ga. (AYP part number)
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

109

Poulan 532124996

Clip (AYP part number)
(Superseded to 532002751)

$

$

Not available

116

Poulan 532121236

Spacer (AYP part number)

$

$

Not available

120

Poulan 532110853

Bracket Assembly, R.H. (AYP part number)

$

$

Not available

121

Poulan 532110852

Bracket Assembly, L.H. (AYP part number)

$

$

Not available

123

Poulan 532120068

Adjustment Knob (AYP part number)
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

124

Poulan 819171912

Washer 17/32 x 1-3/16 x 12 Ga. (AYP part number)

$7.49

$

In Stock, only 1 left!

0

125

Poulan 811050600

Washer Lock 3/8 Ext. Tooth (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

126

Poulan 819131614

Washer 13/32 x 1 x 14 Ga. (AYP part number)
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

129

Poulan 811030400

Washer Lock Ext. Tooth (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

130

Poulan 873490400

Wing Nut (AYP part number)
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

131

Poulan 811050400

Washer, 1/4 Ext. Tooth (AYP part number)
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

134

Poulan 532121248

Bushing, Snap .80 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

135

Poulan 532123976

Nut, Hex, Large, Flange, Lock (AYP part number)
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

136

Poulan 532121246

Bracket, Switch Mount (AYP part number)
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

137

Poulan 532121249

Spacer, Split .28 x .88 (AYP part number)

$6.49

$

In Stock, only 2 left!

0

138

Poulan 872170410

Bolt, Carr. 1/4 x 1-1/4 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

139

Poulan 532121251

Foam Strip (AYP part number)

$

$

Not available

140

Poulan 532121250

Spring. Compression (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

141

Poulan 874641008

Screw, Pan Hd. #10-32 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

142

Poulan 873951000

Nut, Keps #10 (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

143

Poulan 817211010

Screw, Hex WH HD Tap #10-16 X 5/8 (AYP part number)

$

$

Not available

144

Poulan 532104755

"J" Fastener (AYP part number)

$

$

Not available

145

Poulan 532124238

Spring Cap (AYP part number)

$

$

Not available

Poulan 532127620

Decal, Hood L.H. (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127621

Decal, Hood R.H. (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127622

Decal, Grill and Fender (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127639

Decal, Chassis, Poulan Pro (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127648

Decal, Fender L.H. (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532127649

Decal, Fender R.H. (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532004900

Decal, Clutch/Brake (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532108813

Decal, Instructions, Caution (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532121215

Decal, Belt Instruction (AYP part number)

Note: Not Shown.

$

$

Not available
