PP 14H44 A - Poulan Lawn Tractor (1991) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

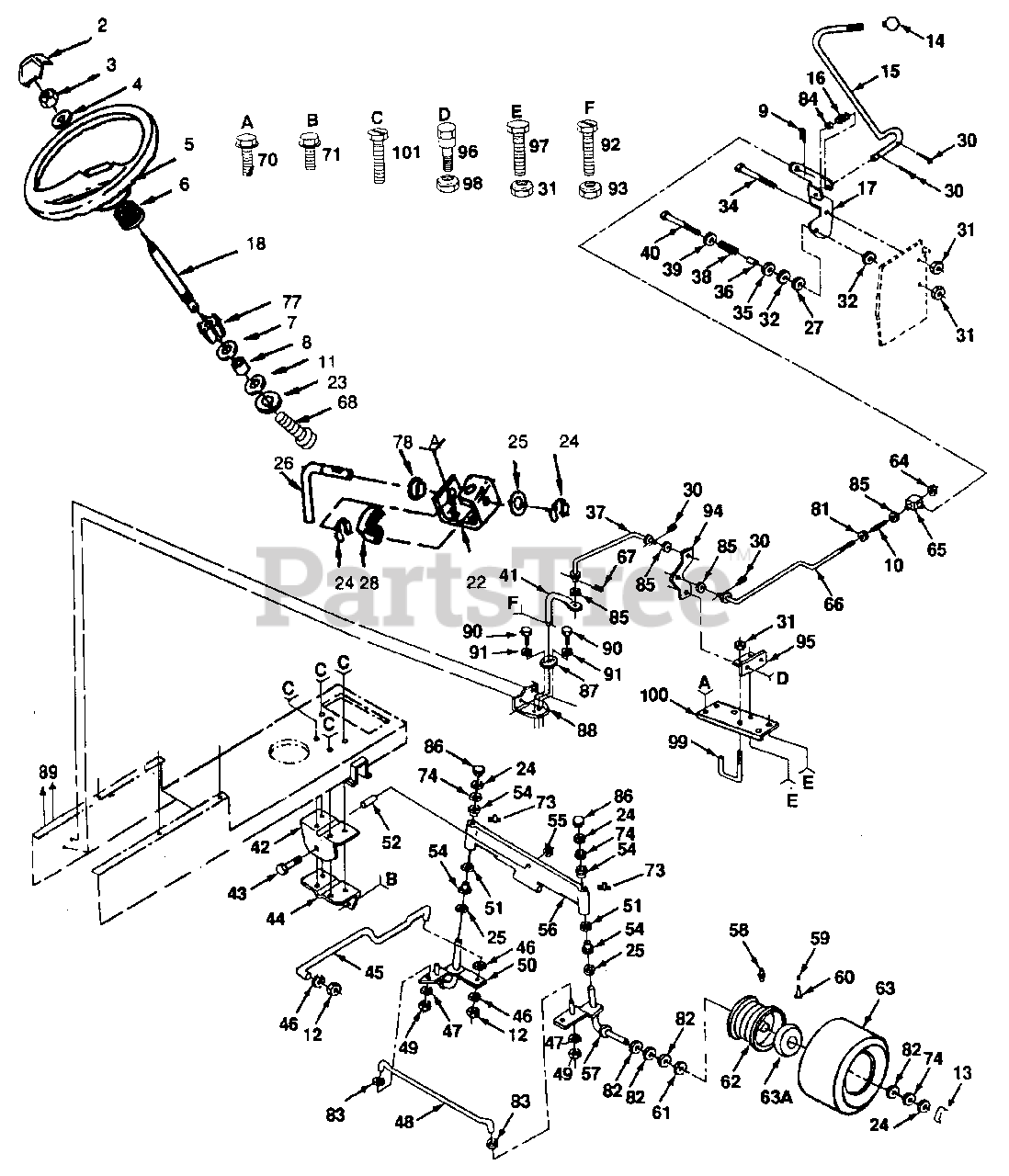

STEERING ASSEMBLY Parts Diagram

  • Title

2

Electrolux/AYP 532126805

Insert, Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 873940800

Nut, Hex 3/4-16

$7.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 532100712

Washer

$

$

Not available

5

Electrolux/AYP 532121472

Wheel, Steering
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532100711

Adapter, Steering Wheel
(Superseded to 532186737)

$9.49

$

In Stock, Qty 8

0

7

Electrolux/AYP 532057079

Washer

$6.49

$

In Stock, Qty 11

0

8

Electrolux/AYP 532124035

Support, Shaft
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

9

Electrolux/AYP 532004921

Retainer Spring

$6.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 532004921

Spring, Compression

$6.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 532126684

Washer, Shim 1/4 X 5/8 X .062
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 873610600

Nut, Fin Hex 3/8-24 UNF
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532104757

Cap, Axle

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 532121274

Knob, Gearshift

$10.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532110845

Rod, Control

$8.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532121631

Spring, Torsion

$

$

Not available

17

Electrolux/AYP 532108196

Bracket, Control Rod

$

$

Not available

18

Electrolux/AYP 532124043

Shaft, Steering
(Superseded to 532128762)

$91.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532124036

Bracket, Steering

$

$

Not available

23

Electrolux/AYP 810040400

Washer, Lock, Heavy. Helical Spring 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

24

Electrolux/AYP 812000029

Klip Ring

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

26

Electrolux/AYP 532124033

Shaft, Pitman
(Superseded to 532127501)

$

$

Not available

27

Electrolux/AYP 532108972

Washer, Phenolic

$

$

Not available

28

Electrolux/AYP 532124034

Gear, Sector
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 873680600

Locknut 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

32

Electrolux/AYP 532108200

Washer, Friction

$

$

Not available

34

Electrolux/AYP 532108518

Bolt, Shoulder 3/8-16 x 1-3/8

$

$

Not available

35

Electrolux/AYP 819212016

Washer 21/32 x 1-1/4 x 16 Gauge

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532108201

Spacer

$

$

Not available

37

Electrolux/AYP 532121202

Link, Control

$

$

Not available

38

Electrolux/AYP 532108844

Spring, Compression

$

$

Not available

39

Electrolux/AYP 819132012

Washer 13/32 x 1-1/4 x 12 Ga.

$1.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 874760648

Bolt, Hex 3/8-16 x 3
(Superseded to 874780648)

$

$

Not available

41

Electrolux/AYP 532121209

Lever, Pump Control

$

$

Not available

42

Electrolux/AYP 532105663

Support, Saddle, Rear

$

$

Not available

43

Electrolux/AYP 874761060

Bolt Hex 5/8-11 x 3-3/4

$6.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532105664

Support, Saddle, Front

$9.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532124032

Link Drag
(Superseded to 532130468)

$93.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 810040600

Washer, Lock 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 810040500

Washer, Lock 5/16

$4.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 532121334

Rod, Tie
(Superseded to 532130467)

$93.99

$

In Stock, only 4 left!

0

49

Electrolux/AYP 873810500

Nut, Hex 5/16-24
(Superseded to 873610500)

$

$

Not available

50

Electrolux/AYP 532105656

Spindle L.H.
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 819272016

Washer 27/32 x 1-1/4 x 16 Ga.

$6.49

$

In Stock, only 2 left!

0

52

Electrolux/AYP 532110438

Spacer
(Superseded to 532155134)

$

$

Not available

54

Electrolux/AYP 532124937

Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 873901000

Locknut, Flange 5/8-11
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532108075

Axle, Front

$

$

Not available

57

Electrolux/AYP 532105654

Spindle, R H
(Superseded to 532130524)

$

$

Not available

58

Electrolux/AYP 532000278

Fitting, Grease

$6.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 532065139

Stem, Valve

$9.99

$

In Stock, only 3 left!

0

60

Electrolux/AYP 532059192

Cap, Valve

$7.49

$

In Stock, Qty 9

0

61

Electrolux/AYP 532009040

Bearing

$7.99

$

In Stock, Qty 20+

0

62

Electrolux/AYP 532125102

Rim, 6" Front
(Superseded to 532141446)

$91.99

$

In Stock, Qty 5

0

63

Electrolux/AYP 532106222

Tire, Front
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

63A

Electrolux/AYP 532059904

Tube, Front

$37.99

$

In Stock, Qty 7

0

64

Electrolux/AYP 873800600

Nut, Hex Jam 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 532108212

Trunnion

$18.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 532121750

Rod, Control, Adjustable

$47.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

68

Electrolux/AYP 871070410

Screw, Socket Hex 1/4-20 X 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

70

Electrolux/AYP 817490612

Screw, Hex Washer Head Threaded, Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

71

Electrolux/AYP 817490508

Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$4.99

$

In Stock, Qty 20+

0

77

Electrolux/AYP 532124037

Gear, Pinion

$

$

Not available

78

Electrolux/AYP 532109816

Nyliner, Snap - In

$6.49

$

In Stock, only 2 left!

0

81

Electrolux/AYP 819131212

Washer 13/32 x 3/4 x 12 Gauge
(Superseded to 19131212)

$

$

Not available

82

Electrolux/AYP 532121749

Washer 25/32 x 1 1/4 x 16 Gauge

$3.49

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Gauge
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 819151516

Washer 15/32 x 15/16 x 16 Gauge
(Superseded to 734117801)

$

$

Not available

85

Electrolux/AYP 532110739

Washer, Spring

$4.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 532121232

Cap, Spindle

$4.99

$

In Stock, Qty 9

0

87

Electrolux/AYP 532121217

Guide. Control

$

$

Not available

88

Electrolux/AYP 532121216

Bracket, Guide, Control

$

$

Not available

89

Electrolux/AYP 817490512

Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 3/4 Type TT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

90

Electrolux/AYP 817021008

Screw, Hex Head Tapping #10-24 UNC x 1/2 Type - T

$4.99

$

In Stock, Qty 14

0

91

Electrolux/AYP 819070816

Washer 7/32 x 1/2 x 16 Ga.
(Superseded to 734114601)

$6.99

$

In Stock, only 1 left!

0

92

Electrolux/AYP 874561014

Bolt 10-24 x 3/4

$2.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 532069180

Locknut #10-24 UNC

$6.49

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 532121204

Bellcrank

$

$

Not available

95

Electrolux/AYP 532121206

Bracket, Bellcrank Pivot

$

$

Not available

96

Electrolux/AYP 532100536

Bolt, Shoulder

$

$

Not available

97

Electrolux/AYP 874760616

Bolt, Fin Hex 3/8 UNC-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 873680500

Locknut 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

99

Electrolux/AYP 532121190

Keeper, Centerspan

$

$

Not available

100

Electrolux/AYP 532123186

Bracket, Chassis, Reinforcement, Hydro

$

$

Not available

101

Electrolux/AYP 532122819

Screw, Special 3/8-16 X 3/4

$

$

Not available

Electrolux/AYP 532127646

Decal, Steering Wheel

Note: Not Shown.

$

$

Not available
