PP 145H42 A - Poulan Pro Lawn Tractor Mower Deck Parts Diagram

Lawn Tractor

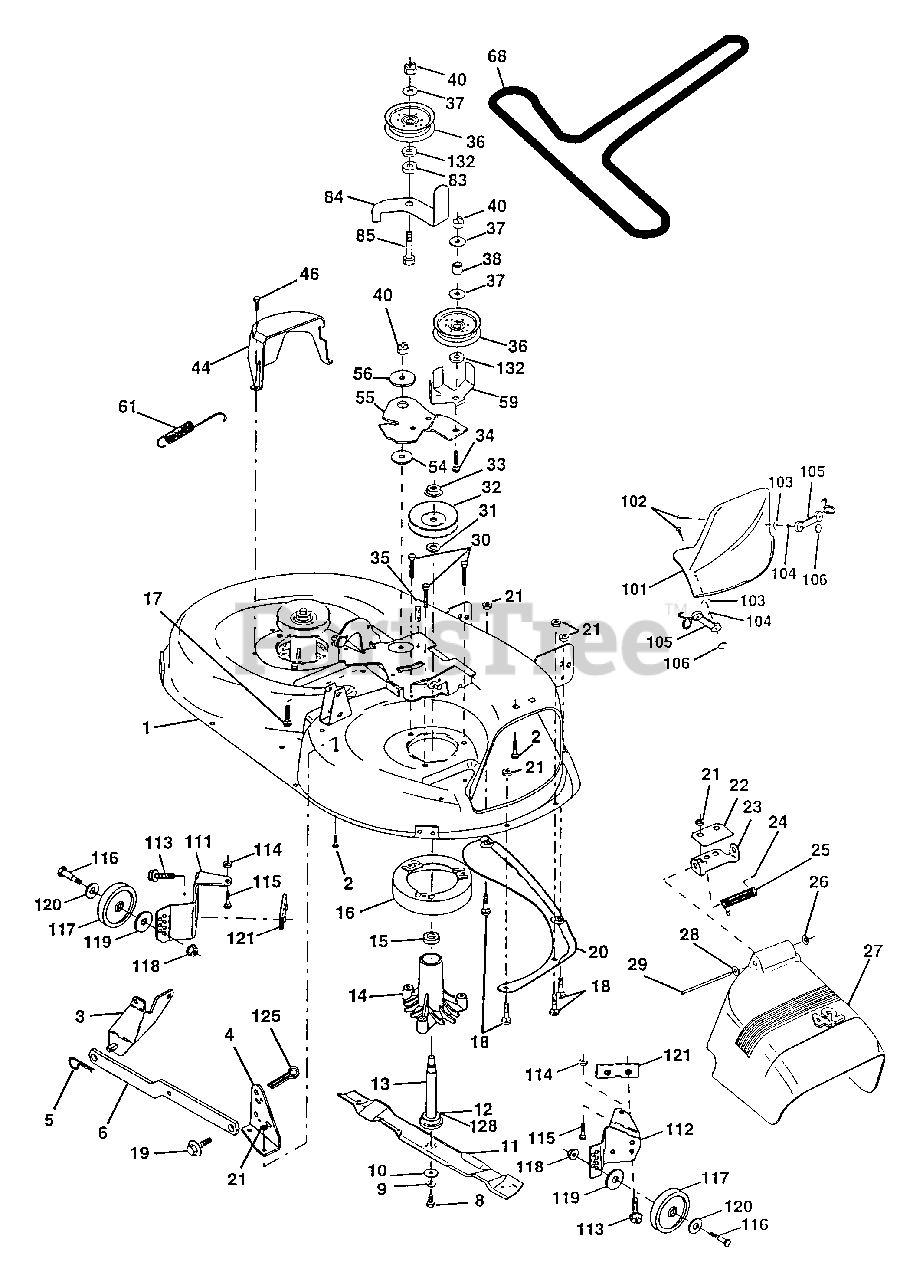

Mower Deck Parts Diagram

  • Title

1

Poulan 144393

Housing Asm Mower 42" 94 T-Path
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

2

Poulan 72140506

Bolt Rdhd Sqnk 5/16-18 unc X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 138017

Bracket Asm., Sway Bar
(Superseded to 532138017)

$12.99

$

In Stock, only 1 left!

0

4

Poulan 138440

Bracket Asm Deck 42" Sway Bar
(Superseded to 532138440)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 4939M

Retainer Spring (AYP part number)

$

$

Not available

6

Poulan 130832

Arm, Suspension, Rear (Sway Bar) (AYP part number)

$

$

Not available

8

Poulan 850857

Bolt, Patched 3/8-24 x 1-1/4 Gr. 8
(Superseded to 532850857)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 10030600

Washer, Lock Hvy., Unplated 3/8 (AYP part number)

$

$

Not available

10

Poulan 140296

Washer, Hard Blade, Mower Vented
(Superseded to 532140296)

$6.99

$

In Stock, only 1 left!

0

11

Poulan 134149

Blade Mower Mulching 42"
(Superseded to 532134149)

$

$

Not available

12

Poulan 129895

Bearing, Ball, Mandrel #6204
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Poulan 137645

Shaft Asm. w/Lower Bearing (AYP part number)

$

$

Not available

14

Poulan 128774

Housing, Mandrel
(Superseded to 532128774)

$34.99

$

In Stock, only 1 left!

0

15

Poulan 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 6

0

16

Poulan 140329

Stripper, Mower Round (AYP part number)
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 72110618

Bolt Rdhd Sqnk 3/8-16 X 2-1/4
(Superseded to 872110618)

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 72140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 132827

Bolt, Hex Head, Shoulder 5/16-18
(Superseded to 532132827)

$

$

Not available

20

Poulan 136888

Baffle, Vortex 42"
(Superseded to 532159770)

$

$

Not available

21

Poulan 73680500

Nut, Crownlock 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Poulan 134753

Stiffener, Bracket (AYP part number)
(Superseded to 532177563)

$

$

Not available

23

Poulan 131267

Bracket, Deflector (AYP part number)
(Superseded to 532177563)

$

$

Not available

24

Poulan 105304X

Cap, Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Poulan 123713X

Spring, Torsion, Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

26

Poulan 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 130968

Shield, Deflector Mower 42" Blk
(Superseded to 532130968)

$39.99

$

In Stock, Qty 11

0

28

Poulan 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

29

Poulan 131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Poulan 138776

Screw, Hex Head, Thdroll (AYP part number)
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Poulan 129963

Washer, Spacer Mower Vented (AYP part number)
(Superseded to 532187690)

$4.99

$

In Stock, only 2 left!

0

32

Poulan 153535

Pulley, Mandrel 42" (AYP part number)
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Poulan 137266

Nut, Flg. Top Lock Cntr. 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Poulan 72110622

Bolt Rdhd 3/8-16 unc X 2-3/4 Gr. 5
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

35

Poulan 133835

Fastner Christmas Tree
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

36

Poulan 131494

Pulley, Idler, Flat (AYP part number)
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

37

Poulan 19131316

Washer 13/32 X 13/16 X 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Poulan 132823

Spacer Spring Stop Idler (AYP part number)

$

$

Not available

40

Poulan 73680600

Nut Lock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 140088

Guard Mandrel LH Black
(Superseded to 532140088)

$34.99

$

In Stock, Qty 10

0

46

Poulan 137729

Screw, Thdroll. 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

54

Poulan 133943

Washer Hardened (AYP part number)
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Poulan 140084

Arm Idler 42" mower LT/YT (AYP part number)

$

$

Not available

56

Poulan 122052X

Spacer Retainer Pm Mower
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

59

Poulan 141043

Guard, Belt
(Superseded to 532141043)

$

$

Not available

61

Poulan 131950

Spring Ext. Elect
(Superseded to 532131950)

$9.49

$

In Stock, Qty 5

0

68

Poulan 144200

V-Belt Mower
(Superseded to 532144200)

$45.99

$

Usually ships in 3-10 days

0

83

Poulan 120958X

Washer Sintered
(Superseded to 532120958)

$

$

Not available

84

Poulan 156084

Keeper Belt idler
(Superseded to 532156084)

$6.49

$

Usually ships in 3-10 days

0

85

Poulan 72140618

Bolt Carriage 3/8-16 X 2-1/4 Gr. 5 (AYP part number)
(Superseded to 872110618)

$6.49

$

Usually ships in 3-10 days

0

101

Poulan 136420

Cover, Mulching
(Superseded to 954040501)

$29.99

$

Usually ships in 3-10 days

0

102

Poulan 71161010

Screw (AYP part number)
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

103

Poulan 19061216

Washer
(Superseded to 819061216)

$4.99

$

In Stock, only 1 left!

0

104

Poulan 10071000

Washer, Lock #10
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

105

Poulan 130758

Latch Asm. Bagger
(Superseded to 532160793)

$

$

Not available

106

Poulan 2029J

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

111

Poulan 155197

Bracket Wheel Gauge Lh 42" Deck (AYP part number)
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Poulan 155198

Bracket Gauge Wheel Rh 42" Deck (AYP part number)
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Poulan 17490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

114

Poulan 73510500

Nut Keps 5/16-18 UNC

$2.99

$

Usually ships in 3-10 days

0

115

Poulan 72110504

Bolt Carriage 5/16Unc x 1/2 (AYP part number)
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

116

Poulan 4898H

Bolt, Shoulder
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Poulan 105455X

Gauge Wheel
(Superseded to 532105455)

$18.99

$

In Stock, only 2 left!

0

118

Poulan 73930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Poulan 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

120

Poulan 19171512

Washer 17/32 X 15/16 X 12 Ga
(Superseded to 819171512)

$3.99

$

Usually ships in 3-10 days

0

121

Poulan 143723

Bracket
(Superseded to 532143723)

$

$

Not available

125

Poulan 76020816

Cotter Pin
(Superseded to 876020816)

$6.49

$

Usually ships in 3-10 days

0

128

Poulan 153390

Washer Felt
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

132

Poulan 19132203

Washer 13/32 X 1-3/8 X 3 Ga.
(Superseded to 819132203)

$6.49

$

In Stock, only 3 left!

0

Poulan 145452

Deck Serv 42" Elec Vent
(Superseded to 532176207)

Note: (Standard Deck - Order Nose Roller, Gauge Wheel and Mulcher Plate components separately Key Nos. 90-95, 101 106 and 111-121)

$789.99

$

Usually ships in 3-10 days

0

Poulan 130794

Mandrel Assembly
(Superseded to 532130794)

Note: (Includes Key Numbers 8-10, 12-15, 31 and 33)

$56.99

$

In Stock, Qty 7

0
