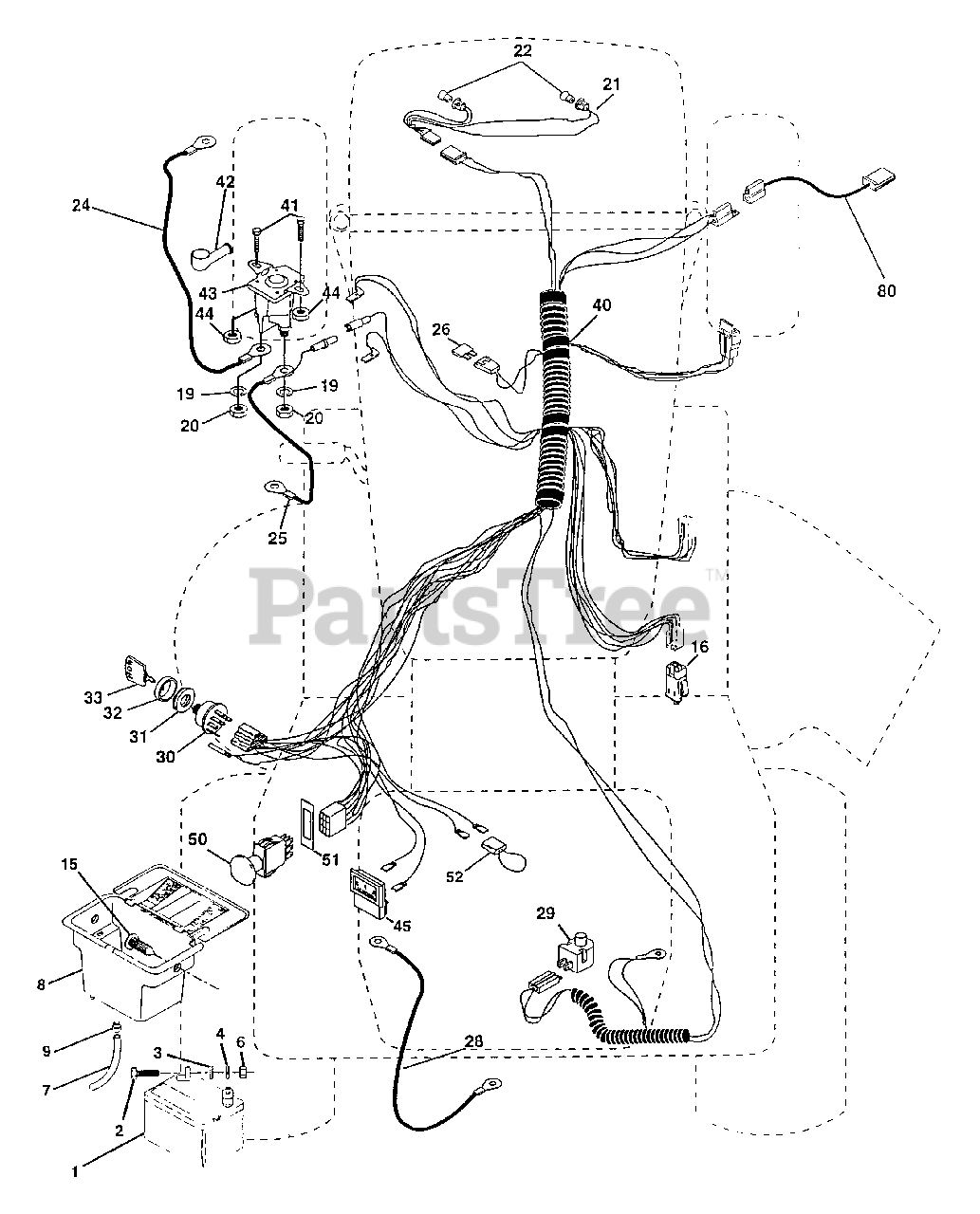

PP 145H42 A - Poulan Pro Lawn Tractor Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Poulan 144926

Battery 12 Volt 30 AMP (AYP part number)

$

$

Not available

2

Poulan 74760412

Bolt Hex Hd 1/4-20 UNC X 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

3

Poulan 19091016

Washer 9/32 X 5/8 X 16 Ga.
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 10040400

Washer Lock Hvy Helical 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

6

Poulan 73220400

Nut Fin Hex 1/4-20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Poulan 109238X

Tube Plastic 12"

$

$

Not available

8

Poulan 156417

Case Battery Mech Hinge
(Superseded to 532404349)

$

$

Not available

9

Poulan 109596X

Clamp Hose Olive
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 147688

Fastener Snap-In

$

$

Not available

16

Poulan 153664

Switch Interlock Push-In (AYP part number)
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

19

Poulan 10090400

Washer Lock 1/4 (AYP part number)

$

$

Not available

20

Poulan 73350400

Nut Jam Hex 1/4-20 UNC

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 136850

Harness Asm Light W/4152j

$

$

Not available

22

Poulan 4152J

Bulb Light #1156
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 108423X

Cable Battery 6 Ga 16" red
(Superseded to 532108423)

$8.99

$

Usually ships in 3-10 days

0

25

Poulan 146147

Cable Battery 6 Ga 44" red w/16 wire
(Superseded to 532146147)

$34.99

$

Usually ships in 3-10 days

0

26

Poulan 108824X

Fuse 30 AMP Auto Green
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

28

Poulan 4207J

Cable Ground 6 Ga 12" black
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

29

Poulan 121305X

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Poulan 140301

Switch Ign 4 pos w/lights
(Superseded to 532140301)

$37.99

$

In Stock, only 1 left!

0

31

Poulan 124211X

Nut Ignition
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

32

Poulan 141226

Cover Sw Ignition
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

33

Poulan 122147X

Key Ign Molded Indak
(Superseded to 532122147)

$

$

Not available

40

Poulan 158684

Harness Ign.

$

$

Not available

41

Poulan 71110408

Bolt Blk Fin Hex 1/4 - 20 x 1/2

$2.99

$

Usually ships in 3-10 days

0

42

Poulan 131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Poulan 145673

Solenoid (AYP part number)

$

$

Not available

44

Poulan 73640400

Nut Keps Hex 1/4-20 UNC
(Superseded to 873640400)

$

$

Not available

45

Poulan 121433X

Ammeter Rectangular 6amp (AYP part number)

$

$

Not available

50

Poulan 154959

Switch, PTO 3PDT Black Delta 96
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

51

Poulan 140405

Ring Retainer PTO
(Superseded to 532140405)

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 141940

Protection Wire Loop
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

80

Poulan 146685

Harness, Clutch EVX
(Superseded to 532146685)

$26.99

$

In Stock, only 2 left!

0
