PP 145H42 A - Poulan Lawn Tractor (1997) MOWER DECK Parts Diagram

Lawn Tractor

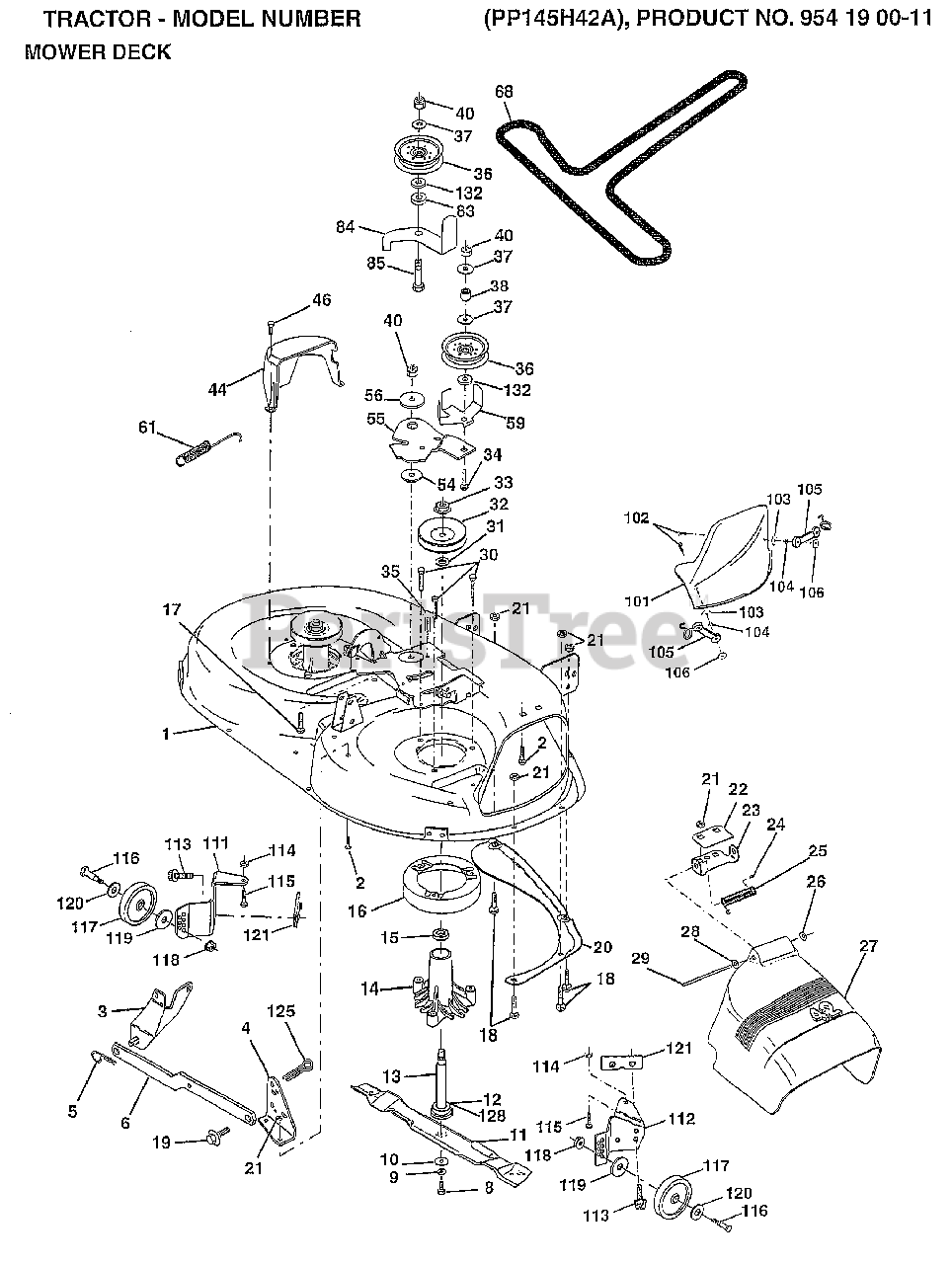

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 144393

DECK.WELD.42.
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

BRKT ASM SWAY BAR
(Superseded to 532138017)

$12.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 138440

BRKT DECK SW BAR
(Superseded to 532138440)

$6.49

$

Usually ships in 3-10 days

0

5

Murray 4939M

SUB= 85902

$

$

Not available

6

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 134149

"BLADE.42"" MULCHER"
(Superseded to 532134149)

$

$

Not available

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137645

SUB= 137646
(Superseded to 532137645)

$34.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 6

0

16

Electrolux/AYP 140329

STRIPPER RND MWR
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 72110618

BOLT CARRIAGE
(Superseded to 872110618)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 136888

SUB= 918136888
(Superseded to 532159770)

$

$

Not available

21

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 134753

STIFFENER BRKT
(Superseded to 532177563)

$

$

Not available

23

Electrolux/AYP 131267

DEFLECTOR BRKT
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 130968

DEFLECTOR.SHIELD
(Superseded to 532130968)

$39.99

$

In Stock, Qty 12

0

28

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

29

Electrolux/AYP 131491

HINGE ROD
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 138776

SUB= 157722
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

32

Murray 153535

PULLEY.MANDREL.42
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 72110622

BOLT
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

35

Electrolux/AYP 133835

XMAS TREE FASTNER
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

37

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 132823

SUB= 532132823
(Superseded to 532132823)

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 140088

GUARD MAND LH BLK
(Superseded to 532140088)

$34.99

$

In Stock, Qty 10

0

46

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 140084

SUB= 151785
(Superseded to 532140084)

$

$

Not available

56

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 141043

GUARD IDLER TUV
(Superseded to 532141043)

$

$

Not available

61

Electrolux/AYP 131950

SPRING.EXTENSION
(Superseded to 532131950)

$9.49

$

In Stock, Qty 5

0

68

Electrolux/AYP 144200

BELT.V.T-PATH
(Superseded to 532144200)

$45.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 120958X

WASHER
(Superseded to 532120958)

$

$

Not available

84

Electrolux/AYP 156084

"KEEPER-BELT,FIXED"
(Superseded to 532156084)

$6.49

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 72140618

BOLT RDHD 3/8-16
(Superseded to 872110618)

$6.49

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 136420

"COVER.MULCH.42"""
(Superseded to 954040501)

$29.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 71161010

SCREW
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 19061216

WASHER #10
(Superseded to 819061216)

$4.99

$

In Stock, only 1 left!

0

104

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

105

Electrolux/AYP 130758

SUB= 160793
(Superseded to 532160793)

$

$

Not available

106

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

111

Electrolux/AYP 155197

BRACKET.GWHL.LH.
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Electrolux/AYP 155198

BRACKET.GWHL.RH.
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 72110504

SUB= 872110504
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 4898H

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Electrolux/AYP 105455X

WHEEL.GAGE.BLK.PL
(Superseded to 532105455)

$18.99

$

In Stock, only 2 left!

0

118

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 19171512

WASHER
(Superseded to 819171512)

$3.99

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 143723

BRACKET.EXTRD.GWL
(Superseded to 532143723)

$

$

Not available

125

Electrolux/AYP 76020816

COTTER PIN
(Superseded to 876020816)

$6.49

$

Usually ships in 3-10 days

0

128

Electrolux/AYP 153390

WASHER.FELT.
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

132

Electrolux/AYP 19132203

WASHER GT
(Superseded to 819132203)

$6.49

$

In Stock, only 3 left!

0

Electrolux/AYP 145452

SUB= 164965
(Superseded to 532176207)

$789.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, Qty 7

0
