PP 14542K - Poulan Lawn Tractor (1995) ENGINE Parts Diagram

Lawn Tractor

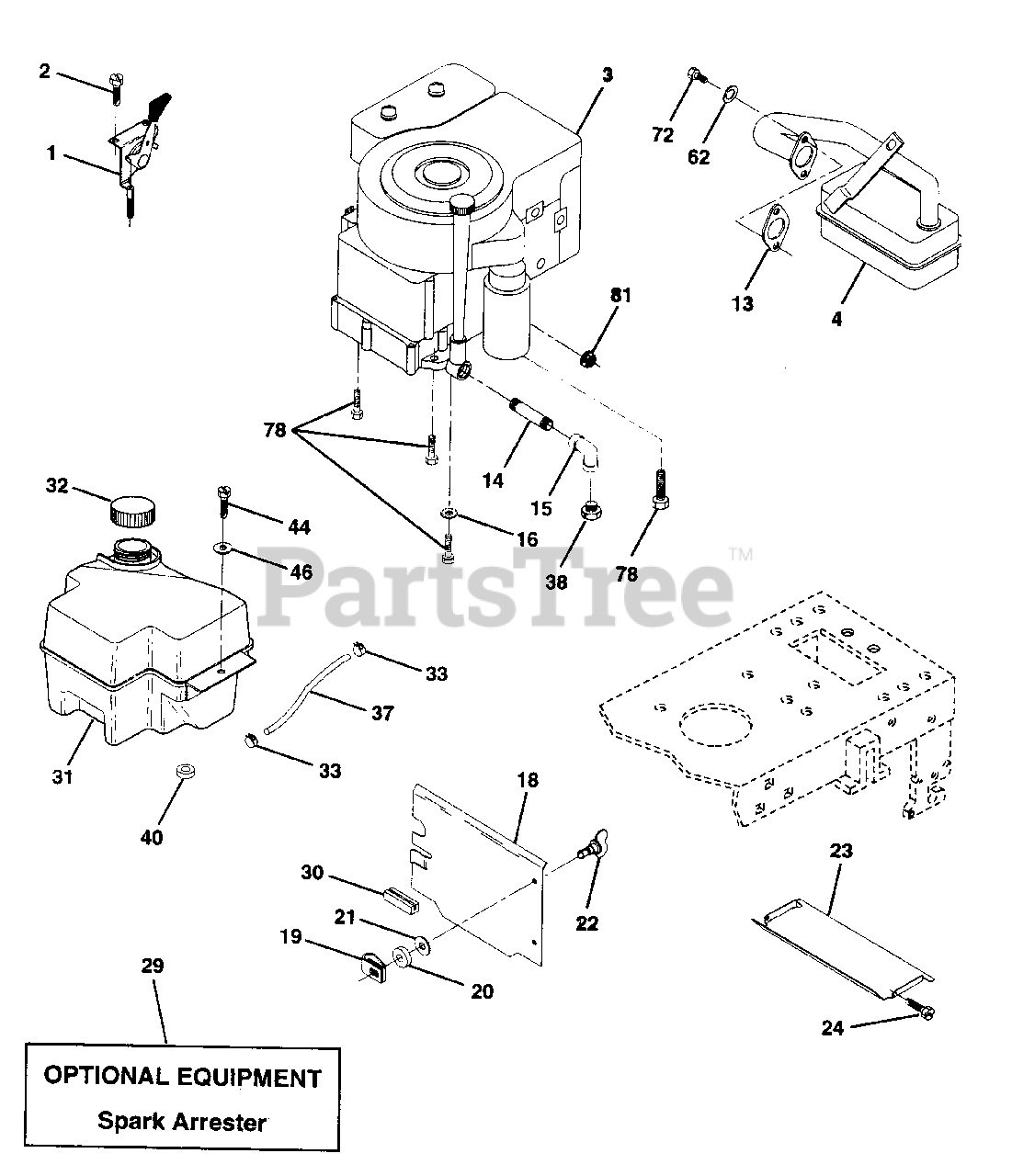

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 532140310

Control Th/ch 23 5 LH Flag
(Superseded to 532170551)

$37.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 817720410

Screw Hex Thd Cut 1/4-20x5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

4

Electrolux/AYP 532137352

Muffler Exh Lt B&S 14 HP IC OHV

$45.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 532125593

Gasket Eng 1 313 Id Tin Plated
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 813280324

Nipple Pipe 3/8 Npt X 3"

$

$

Not available

15

Electrolux/AYP 813200300

Elbow Std 90 Degree 3/8-18 Npt
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 811050600

Washer Lock Ext Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532136718

Shield Heat Lt

$

$

Not available

19

Electrolux/AYP 532105839

Receptacle 1/4 turn

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 532105838

Retainer 1/4 turn

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 819091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 596582301)

$3.99

$

In Stock, Qty 7

0

22

Electrolux/AYP 532123650

Stud 1/4 turn

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532128953

Shield Heat Browning LT/YT

$

$

Not available

24

Electrolux/AYP 817021008

Screw Tap Hex #10-24unc X 1/2

$4.99

$

In Stock, Qty 16

0

29

Electrolux/AYP 532137180

Kit Spark Arrestor (Flat Scrn)
(Superseded to 532121851)

$

$

Not available

30

Electrolux/AYP 532127057

Pinch Weld Hood Black

$

$

Not available

31

Electrolux/AYP 532140280

Tank Fuel Front 2 00
(Superseded to 532161911)

$

$

Not available

32

Electrolux/AYP 532140527

Cap Asm Fuel W/sym Vented
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532123487

Clamp Hose Black

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 532137040

Line Fuel 20"

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532124028

Bushing Snap Nyl Blk Fuel Line

$5.99

$

In Stock, only 3 left!

0

44

Electrolux/AYP 817490412

Screw Hexwsh Thdrol 1/4-20x3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

46

Electrolux/AYP 819091416

Washer 9/32 X 7/8 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 810040500

Washer Lock Hvy Hlcl Spr 5/16

$4.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 871070512

Screw Hexhd Cap 5/16-18x 3/4
(Superseded to 532192334)

$

$

Not available

78

Electrolux/AYP 817490620

Screw Thdrol 3/8-16x1-1/4 TYTT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 873510400

Nut Keps Hex 1/4-20 UNC
(Superseded to 873640400)

$

$

Not available
