PP 14542K - Poulan Lawn Tractor (1995) DRIVE Parts Diagram

Lawn Tractor

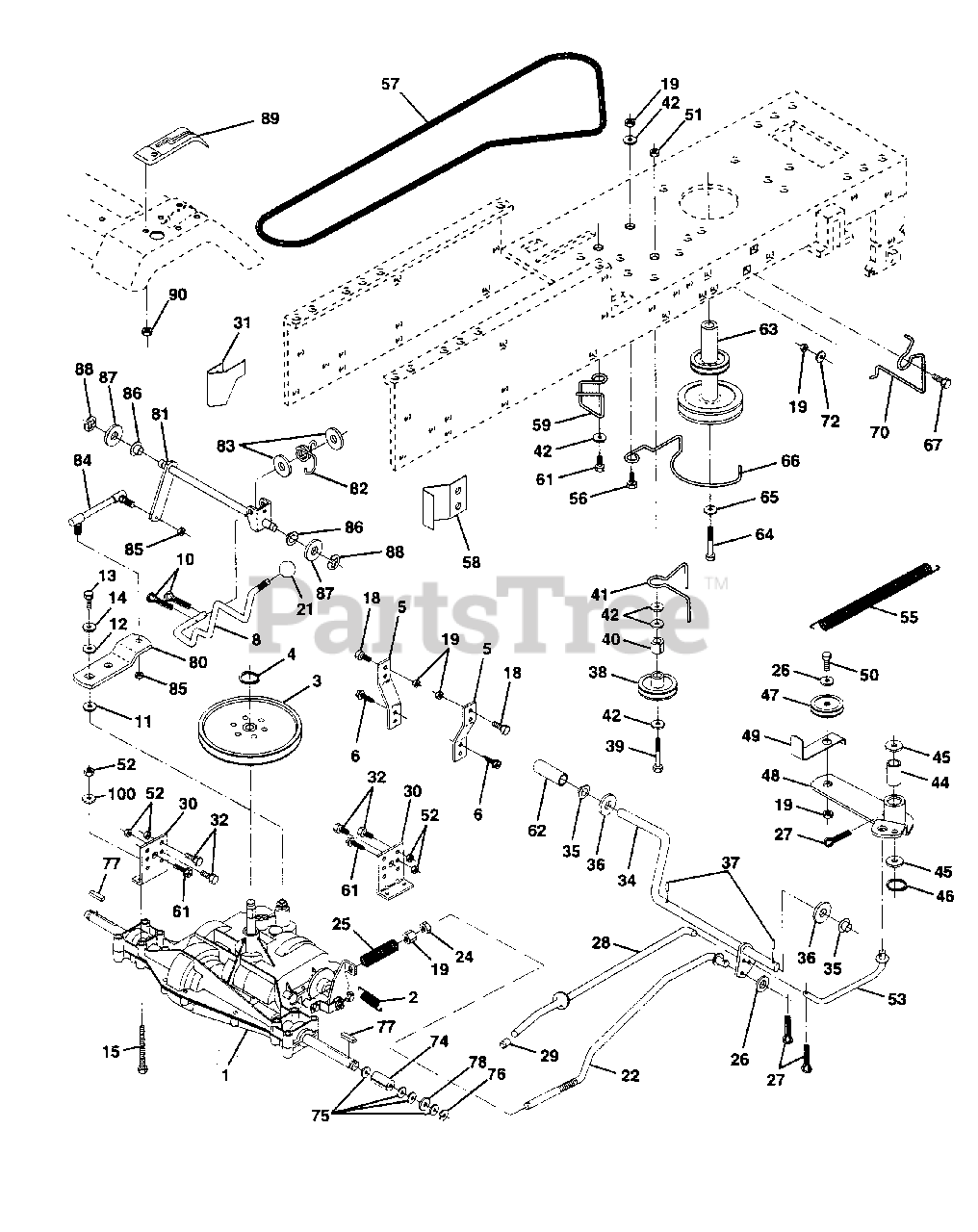

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 532142603

Transaxle 6sp Model No. 4360-79
(Superseded to 532161899)

$

$

Not available

2

Electrolux/AYP 532146682

Spring Return Brake

$8.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 532123666

Pulley Transaxle 18" tires

$45.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 812000028

Ring Retainer # 5100-62
(Superseded to 532002267)

$7.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 532121520

Strap Torque 30 Degrees

$7.99

$

In Stock, only 3 left!

0

6

Electrolux/AYP 817490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 532141003

Rod Shifter

$

$

Not available

10

Electrolux/AYP 876020416

Pin Cotter 1/8 X 1 Cad

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532105701

Washer Plate Shf 388 Sq Hole

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 819151216

Washer 9/32 X 3/4 X 10 Ga
(Superseded to 19151216)

$

$

Not available

13

Electrolux/AYP 874550412

Bolt 1/4-28unf Gr8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 874780544

Bolt Fin Hex 5/16 - 18 UNC x 2.75
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 874780616

Bolt Fin Hex 3/8-16unc X 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 873800600

Nut Hex Lock W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532106933

Knob Duckhead 1/2-13 UNC

$7.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 532130804

Rod Brake Blk Zinc 27 326

$31.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532106888

Spring Rod Brake 2 00 Zinc
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 819131316

Washer 13/32 X 13/16 X 16 Ga

$4.99

$

In Stock, Qty 5

0

27

Electrolux/AYP 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532145204

Rod Brake Parking LT/YT

$

$

Not available

29

Electrolux/AYP 532071673

Cap Brake Parking Black

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532130807

Bracket Mtg Transaxle

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532127275

Keeper Belt LH LT 14 Ga

$

$

Not available

32

Electrolux/AYP 874760512

Bolt Hex Hd 5/16-18unc X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 532149001

Shaft Asm Pedal Foot

$34.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 819211616

Washer 21/32 X 1 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532124963

Pin Roll 3/16 X 1"
(Superseded to 532002882)

$

$

Not available

38

Electrolux/AYP 532123674

Pulley Idler Flat

$31.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 874760644

Bolt Fin Hex 3/8-16unc X 2-3/4

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532124965

Spacer Split 395 X 59 Bzp

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532109070

Keeper Belt Retainer

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

44

Electrolux/AYP 532105706

Bearing Nyl 503 X 628 X 1 25

$7.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 532110812

Washer Hardened
(Superseded to 110812X)

$

$

Not available

46

Electrolux/AYP 812000039

Ring Klip #t5304-50

$6.49

$

In Stock, Qty 7

0

47

Electrolux/AYP 532127783

Pulley Idler V Groove Plastic
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 532123789

Bellcrank Asm Clutch

$

$

Not available

49

Electrolux/AYP 532123205

Retainer Belt Style Spring

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 874760624

Bolt Hex Hd 3/8-16unc X 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 873680600

Nut Crownlock 3/8-16 Unc
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

52

Electrolux/AYP 873680500

Nut Crownlock 5/16-18 UNC
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 532105710

Link Clutch 7 66
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532105709

Spring Return Clutch 6 75

$11.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 874760620

Bolt Fin Hex 3/8-16 UNC x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 532130801

V-Belt Ground Drive 95 25 42"
(Superseded to 532138255)

$39.99

$

In Stock, Qty 5

0

58

Electrolux/AYP 532127274

Keeper Belt RH LT Pnt/zinc 16g

$4.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 532140312

Keeper Belt Chassis Span Ctr
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Electrolux/AYP 532124872

Cover Pedal Blk Round
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 532140186

Engine Pulley

$113.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 871170764

Bolt Hex 7/16-20x4 Gr 5
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 810040700

Washer Lock Hvy Hlcl Spr. 7/16
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 532129921

Keeper Belt Engine LH LT

$

$

Not available

67

Electrolux/AYP 874760616

Bolt Fin Hex 3/8-16 UNC x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532134683

Guide Belt Mower Drive RH

$

$

Not available

72

Electrolux/AYP 819132012

Washer 13/32 X 1-1/4 X 12 Ga

$1.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 532109502

Spacer Axle

$

$

Not available

75

Electrolux/AYP 532121749

Washer 25/32 X 1 1/4 X 16 Ga.

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 812000001

E-ring #5133-75

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 532123583

Key Square 2 0 X 1845/ 1865

$4.99

$

In Stock, only 4 left!

0

78

Electrolux/AYP 532121748

Washer 25/32 X 1-5/8 X 16 Ga.

$4.99

$

In Stock, Qty 20+

0

80

Electrolux/AYP 532131488

Arm Shift Transaxle

$

$

Not available

81

Electrolux/AYP 532136932

Shaft Asm. Cross 18" + 42" Deck

$

$

Not available

82

Electrolux/AYP 532123782

Spring Torsion T/A

$

$

Not available

83

Electrolux/AYP 819171216

Washer 17/32 x 3/4 x 16 Ga.
(Superseded to 19171216)

$

$

Not available

84

Electrolux/AYP 532132182

Rod Shift Adj. Tie

$

$

Not available

85

Electrolux/AYP 873530400

Nut Nylock 1/4-28
(Superseded to 873610400)

$

$

Not available

86

Electrolux/AYP 532071208

Bushing Rod Strg. 629/632 Id

$3.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 819212016

Washer 21/32 x 1 - 1/4 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 812000008

Ring Klip #5304 - 62

$6.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 532139964

Console Shift 6 st LT

$

$

Not available

90

Electrolux/AYP 532124346

Nut Self-thd Wsh-hd 1/4 Zinc

$7.99

$

In Stock, only 1 left!

0

100

Electrolux/AYP 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0
