PP 14542K - Poulan Lawn Tractor (1995) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

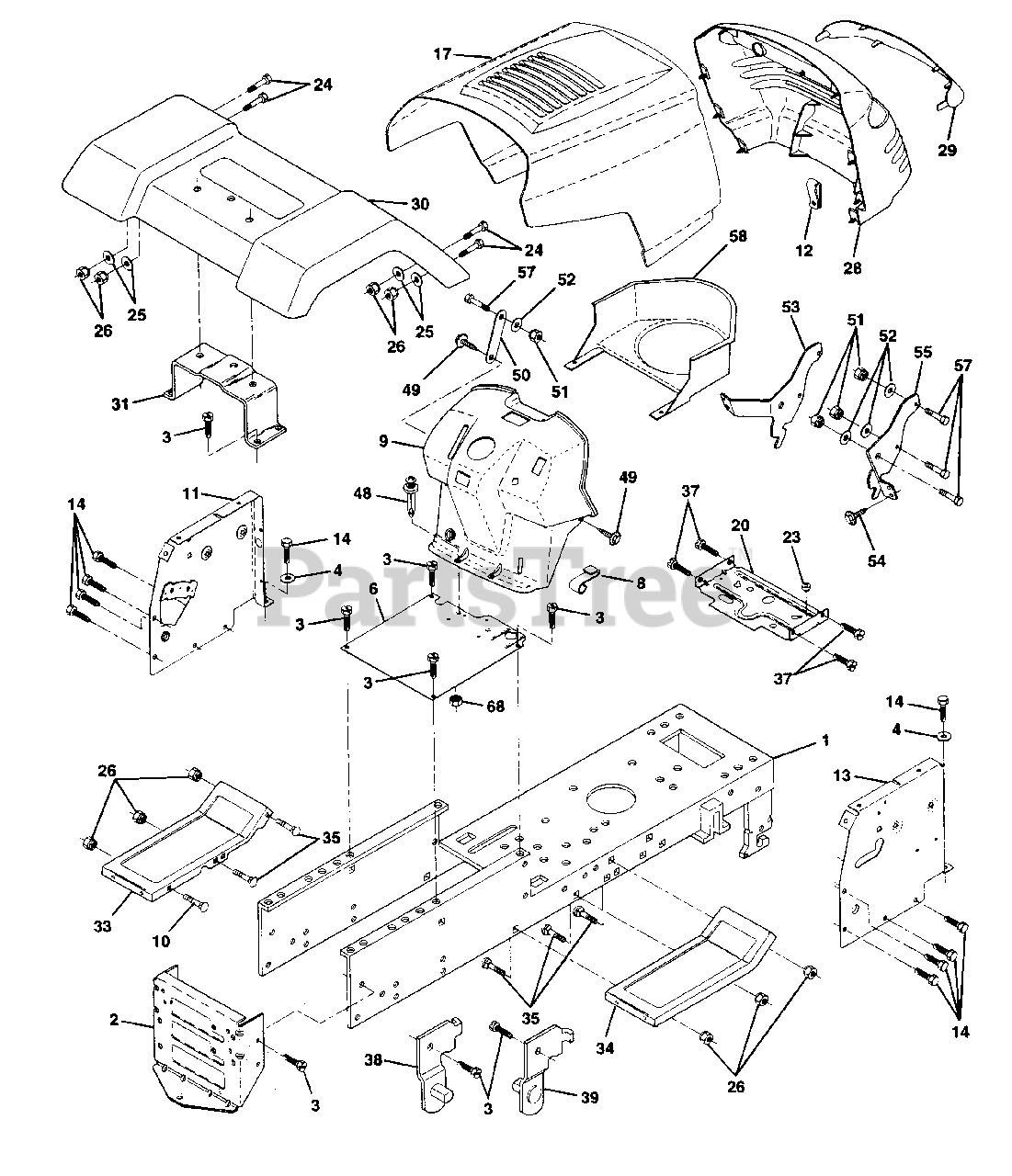

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532145501

Chassis Weldment 11ga

$

$

Not available

2

Electrolux/AYP 532140356

Drawbar, Stretch
(Superseded to 532145009)

$

$

Not available

3

Electrolux/AYP 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 819131216

Washer 13/32 x 3/4 x 16 Ga.

$

$

Not available

5

Electrolux/AYP 811050600

Washer Lock Ext. Tooth 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 532145206

Saddle LT Fender Shift

$

$

Not available

8

Electrolux/AYP 532126471

Clip Insulator .406

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532140072

Dash Private Label

$

$

Not available

10

Electrolux/AYP 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532140311

Panel Pnt Dash Lh

$

$

Not available

12

Electrolux/AYP 532145660

Clip Tinnerman Grille P/L

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 532140178

Panel Dash Rh Weldment

$

$

Not available

14

Electrolux/AYP 817490608

Screw Thdrol 3/8-16x1/2 Ty-tt

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532144473

Hood Paint Steel Private Label

$37.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532145210

Plate Mtg
(Superseded to 532180679)

$11.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532124028

Bushing

$5.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 874780616

Bolt Fin Hex 3/8-16unc X 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 873800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532140141

Grille Private Label
(Superseded to 532157373)

$

$

Not available

29

Electrolux/AYP 532140273

Lens Grille Private Label

$

$

Not available

30

Electrolux/AYP 532141324

Fender Pnt

$

$

Not available

31

Electrolux/AYP 532136619

Bracket Pnt Fender
(Superseded to 136619)

$

$

Not available

33

Electrolux/AYP 532147947

Footrest Pnt Lh

$6.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532147948

Footrest Pnt Rh

$

$

Not available

35

Electrolux/AYP 872110606

Bolt Rdhd Sht Sqnk 3/8-16 X3/4

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 817490512

Screw Thdrol 5/16-18 X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 532139886

Bracket, Asm. Pivot, L.H., Mower Rear

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532139887

Bracket, Asm. Pivot, R.H., Mower Rear

$

$

Not available

48

Electrolux/AYP 532138096

Rivet Push Plate D Plastic Blk.

$

$

Not available

49

Electrolux/AYP 817490412

Screw Hexwsh. Thdrol 1/4-20 x 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

50

Electrolux/AYP 532142779

Brace
(Superseded to 142779)

$

$

Not available

51

Electrolux/AYP 873800400

Nut Lock Hex W/Ins 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532144697

Bracket Grille LH

$

$

Not available

54

Electrolux/AYP 817030814

Screw Lock Spider #8 x 7/8
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 532144696

Bracket, Grille RH

$

$

Not available

57

Electrolux/AYP 874780412

Screw Hex 1/4-20 x 3/4
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532140806

Air Duct P/L
(Superseded to 532150127)

$

$

Not available

68

Electrolux/AYP 873510400

Nut Keps Hex 1/4-20 UNC
(Superseded to 873640400)

$

$

Not available

Electrolux/AYP 532005479

Plug Button

$5.99

$

Usually ships in 3-10 days

0
