PP 14542K B - Poulan Lawn Tractor (1995) ELECTRICAL Parts Diagram

Lawn Tractor

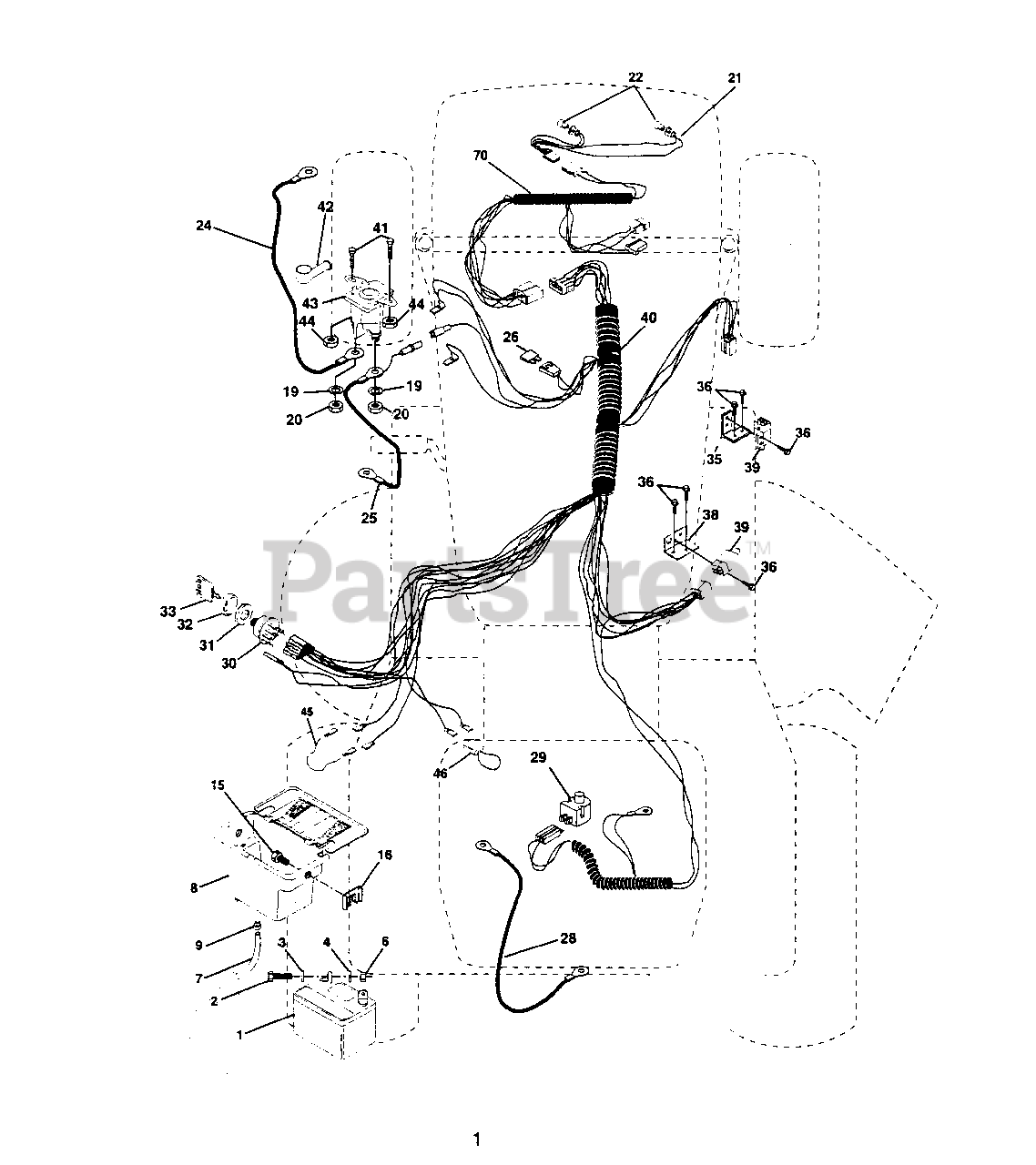

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 532144925

Battery 12 Volt 25 AMP
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 874760412

Bolt Hex Hd 1/4-20unc X 3/4

$7.49

$

In Stock, only 1 left!

0

3

Electrolux/AYP 819091016

Washer 9/32 X 5/8 X 16 Ga.
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 532121264

Caps Battery 20/25/30 AMP

$

$

Not available

6

Electrolux/AYP 873220400

Nut Fin Hex 1/4-20 Unc
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 532109238

Tube Plastic 12"

$

$

Not available

8

Electrolux/AYP 532144940

Case Battery
(Superseded to 532156417)

$

$

Not available

9

Electrolux/AYP 532109596

Clamp Hose Olive

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532144935

Screw Cap Hex Nylon 3/8-16 x 1

$

$

Not available

16

Electrolux/AYP 532145355

Nut, Nylon 3/8-16

$

$

Not available

19

Electrolux/AYP 810090400

Washer Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 873350400

Nut Jam Hex 1/4-20 Unc
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 532136850

Harness Asm Light W/4152j

$

$

Not available

22

Electrolux/AYP 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 811150400

Washer Lock Internal Tooth 1/4

$2.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532124780

Cable Battery 6 Ga 11" red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532146147

Cable Battery 6 Ga 44" red

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532108824

Fuse 30 AMP Auto Green

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532124773

Cable Ground 6 Ga 12" black
(Superseded to 532420700)

$8.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532121305

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 532140301

Switch Ign 4 pos w/lights

$37.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 532124211

Nut Ignition

$5.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 532141226

Cover Sw Ignition

$5.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532122147

Key Ign Modleded Generic

$

$

Not available

35

Electrolux/AYP 532108236

Bracket Switch Clutch

$2.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 817021008

Screw Tap Hex #10-24unc X 1/2

$4.99

$

In Stock, Qty 14

0

38

Electrolux/AYP 532140336

Bracket, Switch, Interlock

$

$

Not available

39

Electrolux/AYP 532109553

Switch Intlk Clutch Red 4 Term
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532146058

Harness Chassis LT PL Mech

$

$

Not available

41

Electrolux/AYP 871110412

Bolt Blk Fin Hex 1/4 - 20 x 3/4
(Superseded to 583610501)

$2.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 532145673

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

44

Electrolux/AYP 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

45

Electrolux/AYP 532140844

Adapter Ammeter Rectangular

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 532141940

Protection Wire Loop

$7.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532141164

Harness, Eng.

$

$

Not available
