PP 14542 KB - Poulan Pro Lawn Tractor MOWER LIFT Parts Diagram

Lawn Tractor

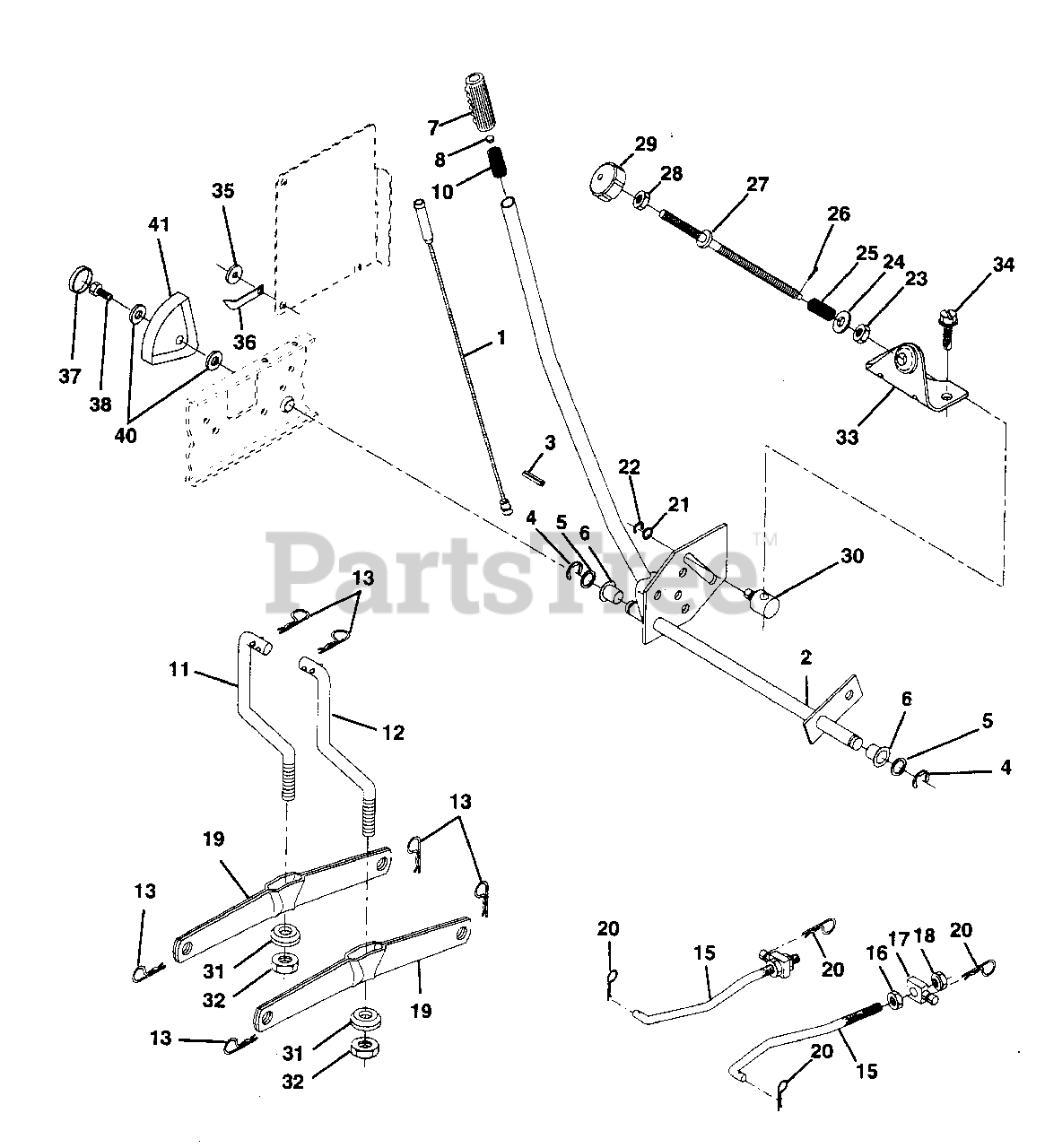

MOWER LIFT Parts Diagram

  • Title

1

Poulan 532136973

Wire Asm Inner W/plunger 17 32 (AYP part number)

$

$

Not available

2

Poulan 532140278

Shaft Asm Lift (AYP part number)

$

$

Not available

3

Poulan 532138284

Pin Groove (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 812000002

E Ring #5133-62 (AYP part number)

$7.49

$

In Stock, only 1 left!

0

5

Poulan 819211621

Washer PLTD 21/32 X 1 X 21 ga (AYP part number)

$6.49

$

In Stock, only 2 left!

0

6

Poulan 532120183

Bearing Nylon Blk 629 Id (AYP part number)

$6.99

$

In Stock, only 4 left!

0

7

Poulan 532109413

Grip Handle Bicycle Matte Blk (AYP part number)
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Poulan 532124526

Button Plunger Black (AYP part number)
(Superseded to 532125925)

$

$

Not available

10

Poulan 532122512

Spring Cprsn 3 750 Oiled

$9.49

$

Usually ships in 3-10 days

0

11

Poulan 532139865

Link Lift LH (AYP part number)
(Superseded to 532145537)

$26.99

$

In Stock, only 1 left!

0

12

Poulan 532139866

Link Lift RH
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Poulan 532124670

Retainer Spring (AYP part number)
(Superseded to 532085902)

$

$

Not available

15

Poulan 532127218

Link Front (AYP part number)

$17.99

$

In Stock, only 4 left!

0

16

Poulan 873350800

Nut Jam Hex 1/2-13 Unc (AYP part number)
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Poulan 532130171

Trunnion Blk Zinc (AYP part number)
(Superseded to 532175689)

$

$

Not available

18

Poulan 873800800

Nut Lock W/wsh 1/2-13unc (AYP part number)
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Poulan 532139868

Arm Suspension Rear (AYP part number)

$15.99

$

Usually ships in 3-10 days

0

20

Poulan 532124660

Spring, Retainer (AYP part number)
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

21

Poulan 819151216

Washer 15/32 x 3/4 x 16 Ga. (AYP part number)
(Superseded to 19151216)

$

$

Not available

22

Poulan 812000037

Ring Klip #T534037 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 532110807

Nut Special (AYP part number)

$

$

Not available

24

Poulan 819131016

Washer 13/32 x 5/8 x 16 Ga. (AYP part number)

$6.49

$

In Stock, Qty 5

0

25

Poulan 532124874

Spring 2-1/8" (AYP part number)
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 876020308

Pin cotter 3/32 x 1/2 (AYP part number)
(Superseded to 532003145)

$

$

Not available

27

Poulan 532126971

Rod adj Lifte zino 7.49 work lg.

$

$

Not available

28

Poulan 873350600

Nut Hex Jam 3/8 - 16 Unc. (AYP part number)
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Poulan 532138057

Knob info 3/8 - 16 Unc. Blk w/sym (AYP part number)

$8.99

$

Usually ships in 3-10 days

0

30

Poulan 532110810

Turnnion dp. stop dbl thds plt.

$

$

Not available

31

Poulan 532140302

Bearing Pvt. Lift Spherical (AYP part number)
(Superseded to 532169865)

$

$

Not available

32

Poulan 873540600

Nut Crownlock 3/8-24 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

33

Poulan 532140168

Bracket Stop inf. Hgt. (AYP part number)

$

$

Not available

34

Poulan 817490608

Screw thdrol 3/8 - 16 x 1/2 Ty. TT (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 532120529

Washer Nylon .44 x .75 x .032 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

36

Poulan 532138346

Pointer Pnt Height Ind 505 (AYP part number)
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 532123935

Plug Hole Blk 1.485/1.515 Dia. (AYP part number)

$5.99

$

Usually ships in 3-10 days

0

38

Poulan 817490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

40

Poulan 819112410

Washer 11/32 x 1-1/2 x 10 Ga. (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532123934

Scale Ind Height Blk (AYP part number)

$

$

Not available
