PP 14542 KB - Poulan Pro Lawn Tractor DANA TRANSAXLE - MODEL NUMBER 4360-79 Parts Diagram

Lawn Tractor

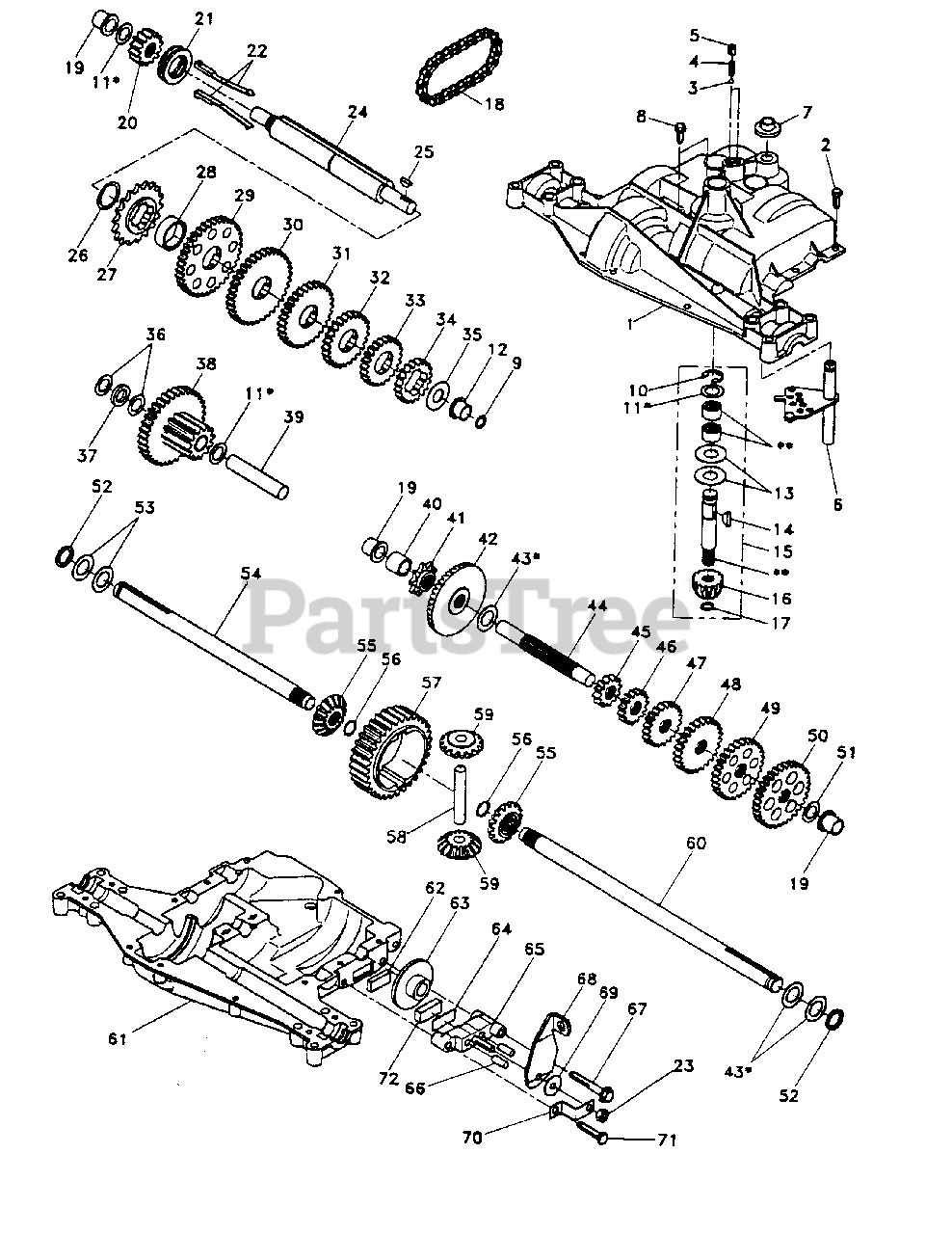

DANA TRANSAXLE - MODEL NUMBER 4360-79 Parts Diagram

  • Title

1

Poulan 532142671

Housing, Upper (AYP part number)

$

$

Not available

2

Poulan 532002274

Screw, Self-Tapping, Large 1/4-20 x .734 (AYP part number)

$

$

Not available

3

Poulan 532134400

Ball, Detent (AYP part number)
(Superseded to 532068003)

$

$

Not available

4

Poulan 532105904

Spring, Detent (AYP part number)

$

$

Not available

5

Poulan 532105905

Screw, Set (AYP part number)

$

$

Not available

6

Poulan 532138235

Kit, Shifter Assembly (AYP part number)
(Superseded to 532134788)

$

$

Not available

7

Poulan 532134399

Boot, Shifter (AYP part number)

$

$

Not available

8

Poulan 532134791

Screw, Self-Tapping, with Sealer (AYP part number)

$

$

Not available

9

Poulan 532138241

Square Ring (AYP part number)

$

$

Not available

10

Poulan 532142672

Ring, Retaining (AYP part number)

$

$

Not available

11

Poulan 532134793

Assembly, Kit, Shim .625 Shaft (AYP part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

12

Poulan 532142673

Bearing, Flange (AYP part number)

$

$

Not available

13

Poulan 532120415

Washer, Plain .632 x 1.38 x .046 (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

14

Poulan 532142674

Key, Woodruff, #9 (AYP part number)

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 532138234

Assembly, Kit, Input Shaft (AYP part number)
(Superseded to 532167148)

$

$

Not available

16

Poulan 532110078

Pinion, Bevel, 14 Teeth (AYP part number)
(Superseded to 532167148)

$

$

Not available

17

Poulan 532105909

Ring, Retaining (AYP part number)

$

$

Not available

18

Poulan 532105910

Chain, 24 Pitches (AYP part number)

$

$

Not available

19

Poulan 532105911

Bearing, Flange (AYP part number)
(Superseded to 105911X)

$

$

Not available

20

Poulan 532142675

Gear, Spur, 14 Teeth (AYP part number)

$15.99

$

Usually ships in 3-10 days

0

21

Poulan 532138246

Collar, Clutch (AYP part number)

$

$

Not available

22

Poulan 532138236

Assembly, Kit, Clutch Keys (AYP part number)
(Superseded to 138236)

$

$

Not available

23

Poulan 873810500

Locknut 5/16-24 (AYP part number)
(Superseded to 873610500)

$

$

Not available

24

Poulan 532142676

Shaft, Intermediate (AYP part number)
(Superseded to 532143673)

$207.99

$

Usually ships in 3-10 days

0

25

Poulan 532002244

Key, Woodruff, #61 (AYP part number)

$

$

Not available

26

Poulan 532105916

Ring, Retaining (AYP part number)

$2.99

$

Usually ships in 3-10 days

0

27

Poulan 532120470

Sprocket, 18 Teeth (AYP part number)
(Superseded to 120470X)

$

$

Not available

28

Poulan 532110070

Spacer (AYP part number)

$

$

Not available

29

Poulan 532142677

Gear, Spur, 37 Teeth (AYP part number)

$

$

Not available

30

Poulan 532142681

Gear, Spur, 35 Teeth (AYP part number)

$

$

Not available

31

Poulan 532120405

Gear, Spur, 30 Teeth (AYP part number)

$

$

Not available

32

Poulan 532108980

Gear, Spur, 25 Teeth (AYP part number)

$

$

Not available

33

Poulan 532120406

Gear, Spur, 22 Teeth (AYP part number)

$

$

Not available

34

Poulan 532134796

Gear, Spur, 19 Teeth (AYP part number)

$87.69

$

Usually ships in 3-10 days

0

35

Poulan 532105925

Washer, Plain .640 x 1.37 x .061 (AYP part number)

$

$

Not available

36

Poulan 532002232

Washer, Plain .632 x 1.00 x .026 (AYP part number)
(Superseded to 2232J)

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 532108978

Spacer .630 x 1.00 x .169 (AYP part number)

$

$

Not available

38

Poulan 532110079

Assembly, Gear, Combination of 12 Teeth and 35 Teeth (AYP part number)

$

$

Not available

39

Poulan 532124639

Shaft, Idler (AYP part number)

$36.99

$

Usually ships in 3-10 days

0

40

Poulan 532120472

Spacer .635 x .875 x .755 (AYP part number)

$

$

Not available

41

Poulan 532105928

Sprocket, 9 Teeth (AYP part number)

$

$

Not available

42

Poulan 532110084

Gear, Bevel, 42 Teeth (AYP part number)
(Superseded to 532167148)

$

$

Not available

43

Poulan 532134394

Assembly, Kit, Shim .750 Shaft (AYP part number)

Note: Use in combinations to maintain proper clearances.

$

$

Not available

44

Poulan 532120473

Shaft, Drive (AYP part number)

$

$

Not available

45

Poulan 532142678

Gear, Spur, 12 Teeth (AYP part number)

$

$

Not available

46

Poulan 532142679

Gear, Spur, 15 Teeth (AYP part number)

$11.99

$

Usually ships in 3-10 days

0

47

Poulan 532120407

Gear, Spur, 20 Teeth (AYP part number)

$

$

Not available

48

Poulan 532106589

Gear, Spur, 25 Teeth (AYP part number)

$

$

Not available

49

Poulan 532120408

Gear, Spur, 28 Teeth (AYP part number)

$

$

Not available

50

Poulan 532105937

Gear, Spur, 31 Teeth (AYP part number)

$

$

Not available

51

Poulan 532002226

Washer, Plain .632 x 1.00 x .060 (AYP part number)

$

$

Not available

52

Poulan 532134401

Washer, Neoprene (AYP part number)

$

$

Not available

53

Poulan 532002264

Washer, Plain .758 x 1.25 x .031 (AYP part number)

$

$

Not available

54

Poulan 532120474

Axle, L.H. (AYP part number)
(Superseded to 532154658)

$132.99

$

Usually ships in 3-10 days

0

55

Poulan 532110081

Gear, Miter, 15 Teeth (AYP part number)
(Superseded to 532169651)

$

$

Not available

56

Poulan 532105941

Ring, Retaining (AYP part number)

$

$

Not available

57

Poulan 532110071

Gear, Spur, 32 Teeth (AYP part number)

$151.99

$

Usually ships in 3-10 days

0

58

Poulan 532120952

Shaft, Cross (AYP part number)

$

$

Not available

59

Poulan 532110082

Gear, Miter, 15 Teeth (AYP part number)
(Superseded to 532169651)

$

$

Not available

60

Poulan 532123908

Axle, R.H. (AYP part number)

$

$

Not available

61

Poulan 532142680

Housing, Lower (AYP part number)

$

$

Not available

62

Poulan 532120961

Puck, Friction (AYP part number)

$

$

Not available

63

Poulan 532007294

Disc, Brake (AYP part number)

$

$

Not available

64

Poulan 532108989

Spacer (AYP part number)

$

$

Not available

65

Poulan 532120953

Jaw, Brake (AYP part number)
(Superseded to 532164670)

$

$

Not available

66

Poulan 532120954

Pin, Dowel (AYP part number)

$

$

Not available

67

Poulan 532134799

Screw, Self-Tapping, Large 5/16-18 x 2.25 (AYP part number)

$

$

Not available

68

Poulan 532138244

Lever, Actuating (AYP part number)
(Superseded to 532108992)

$

$

Not available

69

Poulan 532108996

Washer, Plain .321 x 1.00 x .055 (AYP part number)

$

$

Not available

70

Poulan 532120956

Bracket, Anti-Rotation (AYP part number)

$

$

Not available

71

Poulan 532106596

Screw, Self-Tapping, Large 5/16-18 x 1.44 (AYP part number)

$

$

Not available

72

Poulan 532120951

Puck, Friction (AYP part number)

$

$

Not available

73

Poulan 532120416

Grease (AYP part number)
(Superseded to 532126976)

$47.99

$

Usually ships in 3-10 days

0
