PP 1442 - Poulan Pro Lawn Tractor TRANSAXLE FOOTE DANA - MODEL NUMBER 4360-19 Parts Diagram

Lawn Tractor

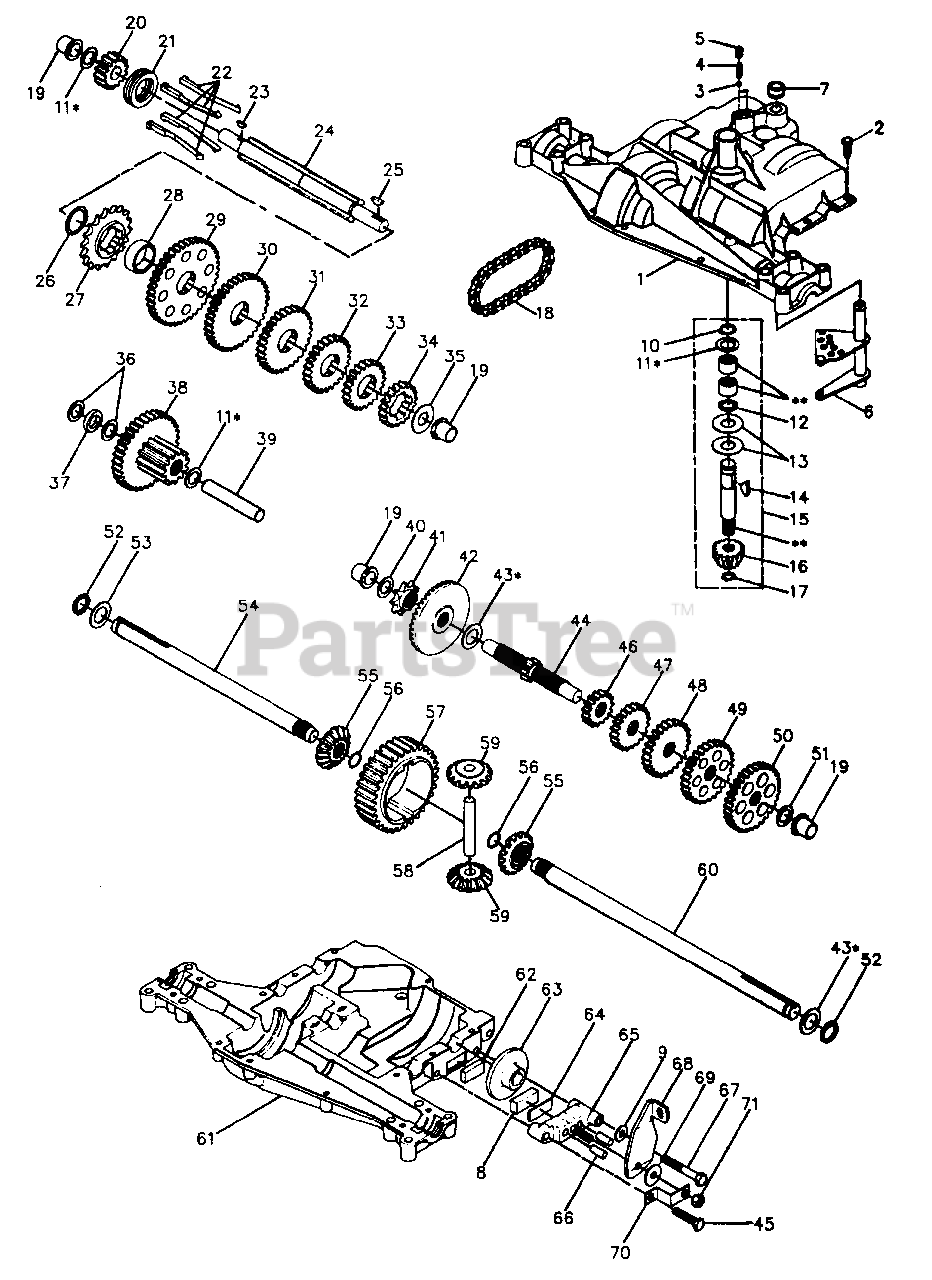

TRANSAXLE FOOTE DANA - MODEL NUMBER 4360-19 Parts Diagram

  • Title

1

Poulan 124643X

Housing, Upper (AYP part number)

$

$

Not available

2

Poulan 74760412

Screw, Tapping 1/4 - 20 x .734 Lg.
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

3

Poulan 68003

Ball, Detent
(Superseded to 532068003)

$

$

Not available

4

Poulan 105904X

Spring, Detent
(Superseded to 583647001)

$

$

Not available

5

Poulan 105905X

Screw, Set
(Superseded to 583647101)

$

$

Not available

6

Poulan 124637X

Assembly, Shifter (AYP part number)

$

$

Not available

7

Poulan 108727X

V-Ring
(Superseded to 583655601)

$12.99

$

Usually ships in 3-10 days

0

8

Poulan 120951X

Puck, Friction
(Superseded to 532120951)

$

$

Not available

9

Poulan 120993X

Washer, Plain .325 x .750 x .059
(Superseded to 583664001)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 2267J

Ring, Retaining
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

11

Poulan 3413J

Washer, Plain .632 x 1.00 x .010
(Superseded to 582862601)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 2233J

Washer, Plain .632 x 1.00 x .020
(Superseded to 583729501)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 2232J

Washer, Plain .632 x 1.00 x .026

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 2231J

Washer, Plain .632 x 1.00 x .031
(Superseded to 583729401)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 2230J

Washer, Plain .632 x 1.00 x .036
(Superseded to 583729301)

$

$

Not available

11

Poulan 2229J

Washer, Plain .632 x 1.00 x .041
(Superseded to 583729201)

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 2228J

Washer, Plain .632 x 1.00 x .046
(Superseded to 583729101)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 2227J

Washer, Plain .632 x 1.00 x .050
(Superseded to 583729001)

$

$

Not available

11

Poulan 2226J

Washer, Plain .632 x 1.00 x .060
(Superseded to 583728901)

$

$

Not available

11

Poulan 105906X

Washer, Plain .632 x 1.00 x .082
(Superseded to 583647201)

$6.99

$

Usually ships in 3-10 days

0

12

Poulan 6725J

O-Ring
(Superseded to 583772201)

$2.99

$

Usually ships in 3-10 days

0

13

Poulan 120415X

Washer, Plain .632 x 1.38 x .046
(Superseded to 532120415)

$2.99

$

Usually ships in 3-10 days

0

14

Poulan 2257J

Key, Woodruff # 9

$

$

Not available

15

Poulan 106846X

Assembly, Kit, Input Shaft
(Superseded to 167148)

$

$

Not available

16

Poulan 106095X

Pinion, Bevel, 14 T
(Superseded to 167148)

$

$

Not available

17

Poulan 105909X

Ring, Retaining
(Superseded to 583647301)

$5.99

$

Usually ships in 3-10 days

0

18

Poulan 105910X

Chain, 24 Pitches
(Superseded to 532105910)

$

$

Not available

19

Poulan 105911X

Bearing, Flange

$

$

Not available

20

Poulan 105912X

Gear, Spur, 14T

$

$

Not available

21

Poulan 105913X

Collar, Clutch (AYP part number)

$

$

Not available

22

Poulan 120468X

Key, Clutch
(Superseded to 532120468)

$

$

Not available

23

Poulan 2242J

Key, Woodruff # 3 (AYP part number)

$

$

Not available

24

Poulan 124638X

Shaft, Intermediate

$

$

Not available

25

Poulan 2244J

Key, Woodruff # 61

$

$

Not available

26

Poulan 105916X

Ring, Retaining
(Superseded to 532105916)

$2.99

$

Usually ships in 3-10 days

0

27

Poulan 120470X

Sprocket, 18 T

$

$

Not available

28

Poulan 110070X

Spacer
(Superseded to 583658801)

$7.99

$

Usually ships in 3-10 days

0

29

Poulan 109253X

Gear, Spur 40 T

$

$

Not available

30

Poulan 109254X

Gear, Spur 35 T (AYP part number)

$

$

Not available

31

Poulan 124644X

Gear, Spur 30 T
(Superseded to 583670301)

$66.99

$

Usually ships in 3-10 days

0

32

Poulan 108980X

Gear, Spur 25 T
(Superseded to 583656801)

$46.99

$

Usually ships in 3-10 days

0

33

Poulan 120406X

Gear, Spur 22 T
(Superseded to 583662001)

$26.99

$

Usually ships in 3-10 days

0

34

Poulan 108455X

Gear, Spur 19 T (AYP part number)

$

$

Not available

35

Poulan 105925X

Washer, Plain .640 x 1.37 x .061
(Superseded to 583647501)

$

$

Not available

36

Poulan 2232J

Washer, Plain .632 x 1.00 x .026

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 108978X

Spacer .630 x 1.00 x .169

$

$

Not available

38

Poulan 108981X

Assy., Gear, Comb. 12 T & 35 T

$

$

Not available

39

Poulan 124369X

Shaft, Idler (AYP part number)

$

$

Not available

40

Poulan 3422J

Washer, Plain .631 x 1.00 x .015
(Superseded to 532003422)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 105928X

Sprocket, 9 T
(Superseded to 532105928)

$

$

Not available

42

Poulan 106605X

Gear, Bevel, 42 T
(Superseded to 167148)

$

$

Not available

43

Poulan 108983X

Washer, Plain .758 x 1.12 x .010
(Superseded to 583656901)

$

$

Not available

43

Poulan 105930X

Washer, Plain .758 x 1.12 x .015
(Superseded to 583647601)

$

$

Not available

43

Poulan 105931X

Washer, Plain .758 x 1.12 x .020

$

$

Not available

43

Poulan 105932X

Washer, Plain .758 x 1.12 x .025
(Superseded to 583647701)

$2.99

$

Usually ships in 3-10 days

0

43

Poulan 3417J

Washer, Plain .758 x 1.25 x .020
(Superseded to 584465201)

$5.99

$

Usually ships in 3-10 days

0

43

Poulan 106097X

Washer, Plain .758 x 1.25 x .025
(Superseded to 583648301)

$2.99

$

In Stock, only 1 left!

0

43

Poulan 2264J

Washer, Plain .758 x 1.25 x .031
(Superseded to 583729701)

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 106098X

Washer, Plain .758 x 1.25 x .035
(Superseded to 583648401)

$

$

Not available

43

Poulan 2265J

Washer, Plain .758 x 1.25 x .040

$

$

Not available

43

Poulan 106586X

Washer, Plain .758 x 1.25 x .045
(Superseded to 583651501)

$2.99

$

Usually ships in 3-10 days

0

43

Poulan 106587X

Washer, Plain .758 x 1.25 x .050
(Superseded to 583651601)

$2.99

$

Usually ships in 3-10 days

0

44

Poulan 124640X

Shaft, Drive

$

$

Not available

45

Poulan 106596X

Screw, Tapping 5/16 x 18 x 1.44 Large

$

$

Not available

46

Poulan 106151X

Gear, Spur, 15 T (AYP part number)

$

$

Not available

47

Poulan 124641X

Gear, Spur, 20 T
(Superseded to 583670201)

$21.99

$

Usually ships in 3-10 days

0

48

Poulan 106589X

Gear, Spur, 25 T
(Superseded to 583651701)

$33.99

$

Usually ships in 3-10 days

0

49

Poulan 120408X

Gear, Spur, 28 T
(Superseded to 583662101)

$47.99

$

Usually ships in 3-10 days

0

50

Poulan 105937X

Gear, Spur, 31 T

$38.99

$

Usually ships in 3-10 days

0

51

Poulan 2226J

Washer, Plain .632 x 1.00 x .060
(Superseded to 583728901)

$

$

Not available

52

Poulan 2272J

Seal, Felt (AYP part number)

$

$

Not available

53

Poulan 2263J

Washer, Plain .758 x 1.25 x .062
(Superseded to 583729601)

$6.99

$

Usually ships in 3-10 days

0

54

Poulan 120474X

Axle, L.H. (AYP part number)
(Superseded to 532154658)

$132.99

$

Usually ships in 3-10 days

0

55

Poulan 120409X

Gear, Miter, 15 T
(Superseded to 532169651)

$

$

Not available

56

Poulan 105941X

Ring, Retaining
(Superseded to 583647801)

$

$

Not available

57

Poulan 110071X

Gear, Spur, 32 T (AYP part number)

$

$

Not available

58

Poulan 120952X

Shaft, Cross
(Superseded to 583663901)

$17.99

$

Usually ships in 3-10 days

0

59

Poulan 106592X

Gear, Miter, 15 T

$

$

Not available

60

Poulan 120475X

Axle, R.H. (AYP part number)
(Superseded to 582982401)

$265.99

$

Usually ships in 3-10 days

0

61

Poulan 124642X

Housing, Lower

$161.99

$

Usually ships in 3-10 days

0

62

Poulan 120961X

Puck, Friction
(Superseded to 532120961)

$

$

Not available

63

Poulan 7294J

Disc, Brake

$

$

Not available

64

Poulan 108989X

Spacer
(Superseded to 532108989)

$

$

Not available

65

Poulan 120953X

Jaw, Brake
(Superseded to 532164670)

$

$

Not available

66

Poulan 120954X

Pin, Dowel

$

$

Not available

67

Poulan 120955X

Screw, Tapping 5/16 - 18 x 2.25 (AYP part number)
(Superseded to 532160953)

$8.99

$

Usually ships in 3-10 days

0

68

Poulan 108992X

Lever, Actuating
(Superseded to 532108992)

$

$

Not available

69

Poulan 108996X

Washer, Plain .321 x 1.00 x .055
(Superseded to 583657101)

$6.99

$

In Stock, Qty 9

0

70

Poulan 120956X

Bracket, Anti-Rotation

$2.49

$

Usually ships in 3-10 days

0

71

Poulan 73810500

Locknut 5/16 - 24

$2.99

$

Usually ships in 3-10 days

0

72

Poulan 120416X

Grease (AYP part number)

$

$

Not available
