PP 1442 - Poulan Pro Lawn Tractor STEERING FRONT AXLES AND WHEELS Parts Diagram

Lawn Tractor

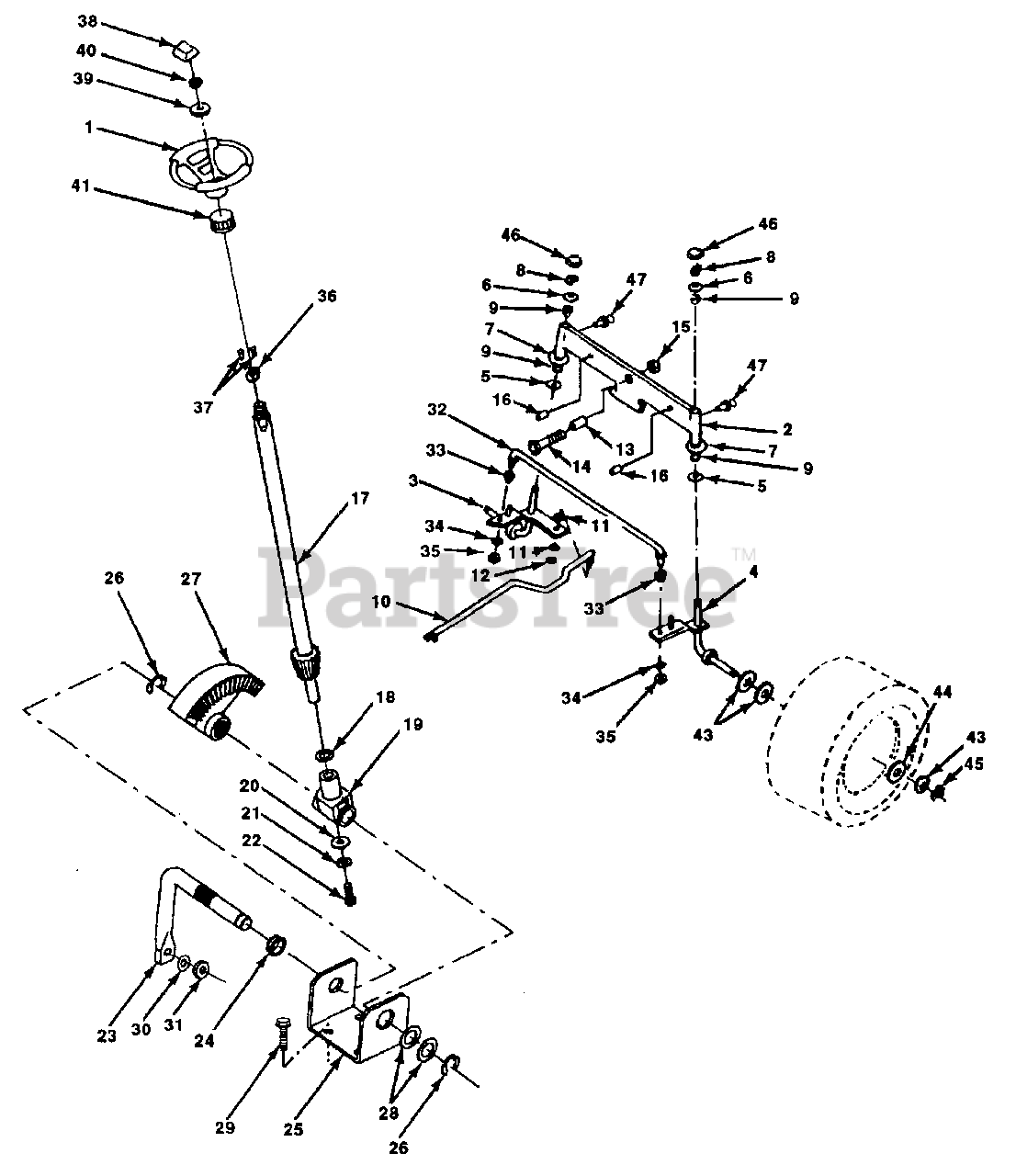

STEERING FRONT AXLES AND WHEELS Parts Diagram

  • Title

1

Poulan 532121472

Steering Wheel (AYP part number)
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 532133988

Axle Assembly, Front (AYP part number)
(Superseded to 532142033)

$

$

Not available

3

Poulan 532130460

Spindle Assembly, L.H.
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

4

Poulan 532130459

Spindle, Assembly, R.H.

$

$

Not available

5

Poulan 532124931

Bearing, Thrust (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 15

0

6

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number)

$4.99

$

In Stock, Qty 10

0

7

Poulan 819272016

Washer 27/32 x 1-1/4 x 16 Gauge (AYP part number)

$6.49

$

In Stock, only 2 left!

0

8

Poulan 812000029

Ring, Klip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532124937

Bearing (AYP part number)
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

10

Poulan 532130468

Link, Drag (AYP part number)

$93.99

$

In Stock, only 1 left!

0

11

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

12

Poulan 873610600

Nut, Hex 3/8-24 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 532110438

Spacer, Bearing (AYP part number)
(Superseded to 532155134)

$

$

Not available

14

Poulan 874011056

Bolt, Hex 5/8 - 11 unc x 3-1/2 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 873601000

Locknut, Flange 5/8-16 (AYP part number)
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

16

Poulan 532132624

Pin, Axle 5/8 - 1.55/1.54 (AYP part number)

$

$

Not available

17

Poulan 532128762

Shaft Assembly, Steering (AYP part number)
(Superseded to 532156544)

$91.99

$

Usually ships in 3-10 days

0

18

Poulan 532057079

Washer (AYP part number)

$6.49

$

In Stock, Qty 12

0

19

Poulan 532124035

Support, Shaft (AYP part number)
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

20

Poulan 532126684

Washer, Shim 1/4 x 5/8 x .062 (AYP part number)
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

22

Poulan 871070410

Screw, Socket, Hex 1/4-20 x 5/8 (AYP part number)
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

23

Poulan 532127501

Shaft, Pitman (AYP part number)
(Superseded to 532156365)

$

$

Not available

24

Poulan 532109816

Nyliner, Snap In (AYP part number)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 532124036

Bracket, Steering (AYP part number)

$

$

Not available

26

Poulan 812000029

Ring, Klip (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 532124034

Gear, Sector (AYP part number)
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

28

Poulan 532124931

Bearing, Thrust (AYP part number)
(Superseded to 532006266)

$7.49

$

In Stock, Qty 15

0

29

Poulan 817490612

Screw, Hex Washer Head, Thread Forming 3/8- 16 x 3/4 Type TT (AYP part number)
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

30

Poulan 810040600

Washer, Lock Hvy Hlcl Spr 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

31

Poulan 873610600

Nut, Fin Hex 3/8 - 24 UNF (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 532130467

Rod, Tie (AYP part number)
(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

33

Poulan 819111216

Washer 11/32 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

34

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 873810500

Nut, Hex 5/16-24 (AYP part number)
(Superseded to 873610500)

$

$

Not available

36

Poulan 532124720

Bushing Strg Blk (AYP part number)
(Superseded to 532001554)

$7.99

$

In Stock, only 2 left!

0

37

Poulan 817431008

Screw, Slftp #10 - 16 x 1/2 (AYP part number)
(Superseded to 98000165)

$2.99

$

Usually ships in 3-10 days

0

38

Poulan 532126805

Insert, Steering Wheel (AYP part number)
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

39

Poulan 532100712

Washer 17/32 x 2-1/4 x .160 (AYP part number)

$

$

Not available

40

Poulan 873940800

Nut, Hex, Toplock Jam 1/2-20 (AYP part number)

$7.49

$

In Stock, only 4 left!

0

41

Poulan 532100711

Adapter, Steering Wheel (AYP part number)
(Superseded to 532186737)

$9.49

$

In Stock, Qty 5

0

43

Poulan 532121749

Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number)

$3.49

$

Usually ships in 3-10 days

0

44

Poulan 532121748

Washer 25/32 x 1-5/8 x 16 Ga. (AYP part number)

$4.99

$

In Stock, Qty 10

0

45

Poulan 81200002

Ring, Klip (AYP part number)

$

$

Not available

46

Poulan 532121232

Cap, Spindle (AYP part number)

$4.99

$

In Stock, Qty 8

0

47

Poulan 532124836

Fitting Grease (AYP part number)
(Superseded to 532006855)

$7.49

$

In Stock, only 2 left!

0
